Product Specifications
300PSR-C
SMA Male Right Angle for CNT300 braided cable
CHARACTERISTICS
General Specifications
Interface
Body Style
Brand
SMA Male
Right angle
CNT™
Electrical Specifications
Operating Frequency Band
Cable Impedance
Connector Impedance
RF Operating Voltage, maximum (vrms)
dc Test Voltage
Outer Contact Resistance, maximum
Inner Contact Resistance, maximum
Insulation Resistance, minimum
Peak Power, maximum
Insertion Loss, typical
0 – 6000 MHz
50 ohm
50 ohm
500.00 V
1000 V
2.50 mOhm
3.00 mOhm
5000 MOhm
5.00 kW
0.05 dB
©2011 CommScope, Inc. All rights reserved.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change.
See www.commscope.com/andrew for the most current information.
page 1 of 3
2/23/2011
Product Specifications
300PSR-C

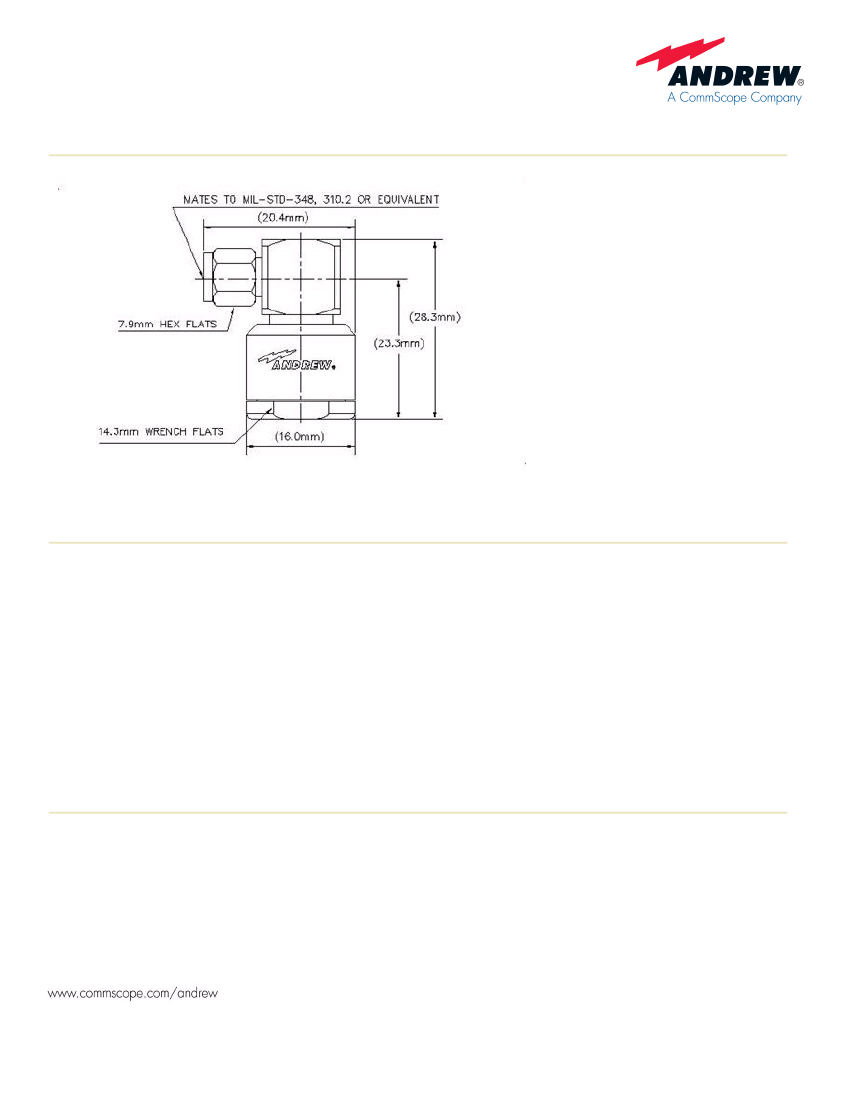

Outline Drawing
Mechanical Specifications
Outer Contact Plating
Inner Contact Plating
Outer Contact Attachment Method
Inner Contact Attachment Method
Interface Durability
Interface Durability Method
Connector Retention Tensile Force
Connector Retention Torque
Coupling Nut Proof Torque
Coupling Nut Proof Torque Method
Coupling Nut Retention Force
Coupling Nut Retention Force Method
Trimetal
Gold
Clamp
Captivated
500 cycles
IEC 6116915:9.5
220 N | 49 lbf
0.45 Nm | 0.33 ft lb
1.70 Nm | 1.25 ft lb
IEC 6116915:9.3.6
180.00 N | 40.47 lbf
IEC 6116915:9.3.11
Dimensions
Nominal Size
Height
Length
Weight
Width
0.300 in
28.25 cm | 11.12 in
22.87 mm | 0.90 in
28.05 g | 0.06 lb
16.00 mm | 0.63 in
Environmental Specifications
©2011 CommScope, Inc. All rights reserved.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change.
See www.commscope.com/andrew for the most current information.
page 2 of 3
2/23/2011
Product Specifications
300PSR-C
Operating Temperature
Storage Temperature
Immersion Depth
Immersion Test Mating
Immersion Test Method
Mechanical Shock Test Method
Climatic Sequence Test Method
Damp Heat Steady State Test Method
Thermal Shock Test Method
Vibration Test Method
Corrosion Test Method
40 °C to +85 °C (40 °F to +185 °F)
65 °C to +125 °C (85 °F to +257 °F)
1 m
Mated
IEC 60529:2001, IP68
IEC 60068227
IEC 600681
IEC 6006823
IEC 60068214
IEC 6006826
IEC 60068211
Standard Conditions
Attenuation, Ambient Temperature
Average Power, Ambient Temperature
20 °C | 68 °F
40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Return Loss/VSWR
Frequency Band
0–3000 MHz
3000–6000 MHz
VSWR
1.04
1.17
Return Loss (dB)
35.00
22.00
Regulatory Compliance/Certifications
Agency
RoHS 2002/95/EC
China RoHS SJ/T 113642006
ISO 9001:2008
Classification
Compliant by Exemption
Above Maximum Concentration Value (MCV)
Designed, manufactured and/or distributed under this quality management system
*
F o o t n o t e s
Immersion Depth
Insertion Loss, typical
Immersion at specified depth for 24 hours
0.05√¯freq (GHz) (not applicable for elliptical waveguide)
©2011 CommScope, Inc. All rights reserved.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change.
See www.commscope.com/andrew for the most current information.
page 3 of 3
2/23/2011
