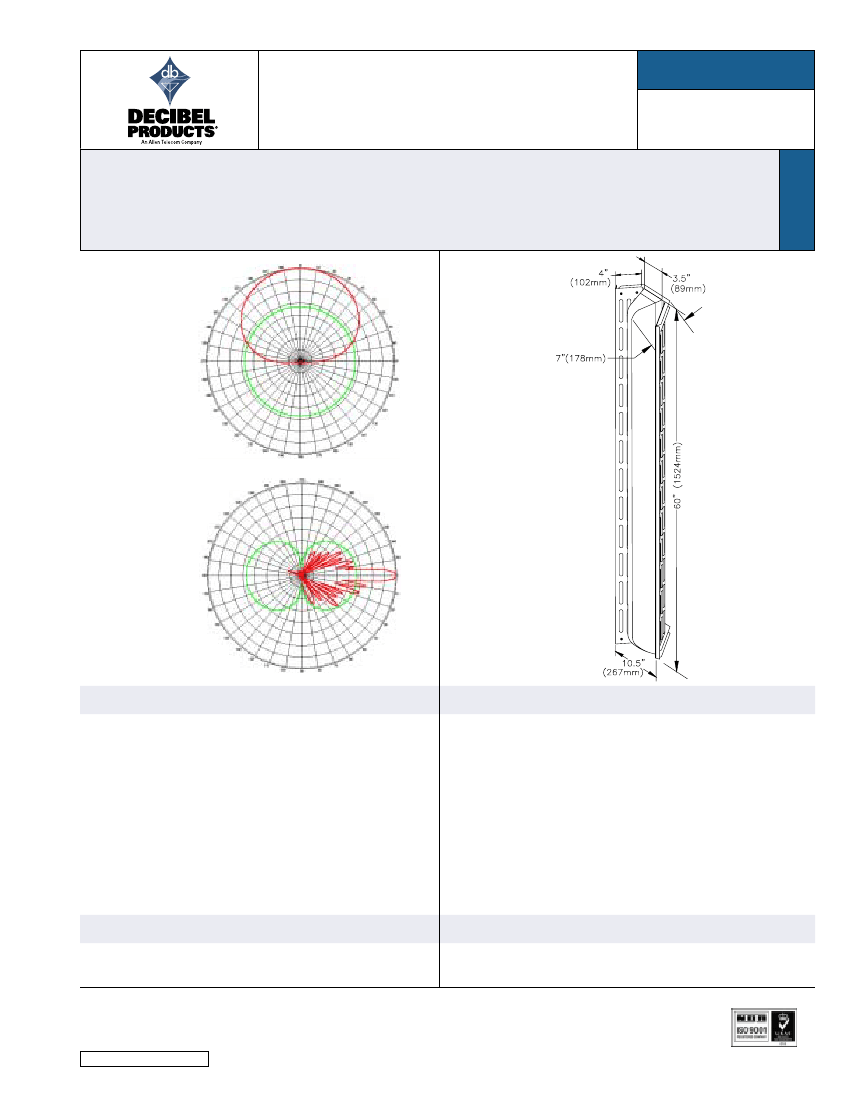

DB950G65E-KL
16.6 dBd
Directional Log Periodic Antenna
1710-1880 MHz
MaxGain™
dB Director
®
•
•
•
•
1710-1880 MHz
16.6 dBd (18.7 dBi) Gain
Vertical Polarization
65° Azimuth BW
• 5.5° Elevation BW
• 7/16 DIN (Bottom)
• GSM1800
65°
Azimuth
(Horizontal)
Elevation
(Vertical)
Electrical
VSWR:
USLS:
Front-to-Back Ratio:
Max. Input Power:
Impedance:
Lightning Protection:
1.4:1
> 16 dB
> 40 dB, typical
250 Watts
50 Ohms
All metal parts are grounded.
Weight:
Frontal Wind Area:
Lateral Wind Area:
Frontal Thrust:
Lateral Thrust:
Max. Wind Speed:
Radiators:
Back Panel:
Radome:
Mounting Hardware:
Color:
Mechanical
15 lbs (6.8 kg)
4.4 ft² (0.41m²)
2.9 ft² (0.27 m²)
176 lbf (783N) 79.1 kp (at 100 mph)
116 lbf (516N) 52.1 kp (at 100 mph)
125 mph (201 km/h)
PCB
Pass. Aluminum
ABS, UV Stabilized
Galvanized Steel
Normal Gray
Mounting Options
Standard:
Downtilt:
DB390 pipe mount kit, included.
DB5098 downtilt bracket, optional.
Packing Size:
Shipping Weight:
Shipping Information
70 x 17 x 11 (178 x 43 x 28 cm)
32 lbs (14.5 kg)
099234-006
07/01-A
8635 Stemmons Freeway Dallas, Texas U.S.A. 75247-3701
Dallas/Ft.Worth Area Tel: 214.631.0310 Fax: 214.631.4706
Toll Free Tel: 1.800.676.5342 Fax: 1.800.229.4706
www.decibelproducts.com
dbtech@decibelproducts.com
ISO9001 Compliant
