.100" HEADER & HOUSING SETS
.100" [2.54] CENTERLINE SINGLE & DUAL ROW
LHA, LHS, MTA, MTS & HHS SERIES
INTRODUCTION:
Adam Tech's Latching Header & Housing sets were designed to
attach wires to a PCB. This series features a friction locking header
which mates to a polarized wire housing with crimp contacts.
This set provides a secure, easy to mate connection with superior
electrical characteristics.
FEATURES:
Precision .025" sq. posts
Secure friction lock
Polarized anti-vibration design
Available in 2 - 20 positions
MATING CONNECTORS:
All industry standard .100 centerline compatible latching headers
and housings
SPECIFICATIONS:
Material:
Insulator: Nylon 66, rated UL94V-2
Insulator Color: White
Contacts: Phosphor bronze and Brass
Contact Plating:
Tin over copper underplate overall
Electrical:
Operating voltage: 250V AC max.
Current rating: 3 Amps max.
Insulation resistance: 1000 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
Mechanical:
Recommended wire size: 22 to 28 Awg with .059"
O.D. insulation max.
Temperature Rating:
Operating temperature: -25°C to +85°C
PACkAGING:
Anti-ESD plastic bags
SAFETy AGENCy APPROVALS:
UL Recognized & CSA Certified, File no. E224053
ORDERING INFORMATION
FRICTION LOCk HEADER
LHA
SERIES INDICATOR
LHA
= Locking Header
LHS
= Short Back
Locking Header
10
TS
PIN ANGLE
TS
= Straight
TRA
= Right Angle
TRB
= Reverse
Right Angle
POSITIONS
2 thru 20
HOUSING
MTA
SERIES INDICATOR
MTA
= Wire housing
MTS
= Short back
wire housing
10
POSITIONS
2 thru 20
CRIMP CONTACT
MTA-C
SERIES INDICATOR
MTA-C
= Crimp contact
MTS-C
= Crimp contact
R
PACkAGING
B
= 1,000 piece loose cut
R
= 6,000 pieces on reel
264
www.adam-tech.com

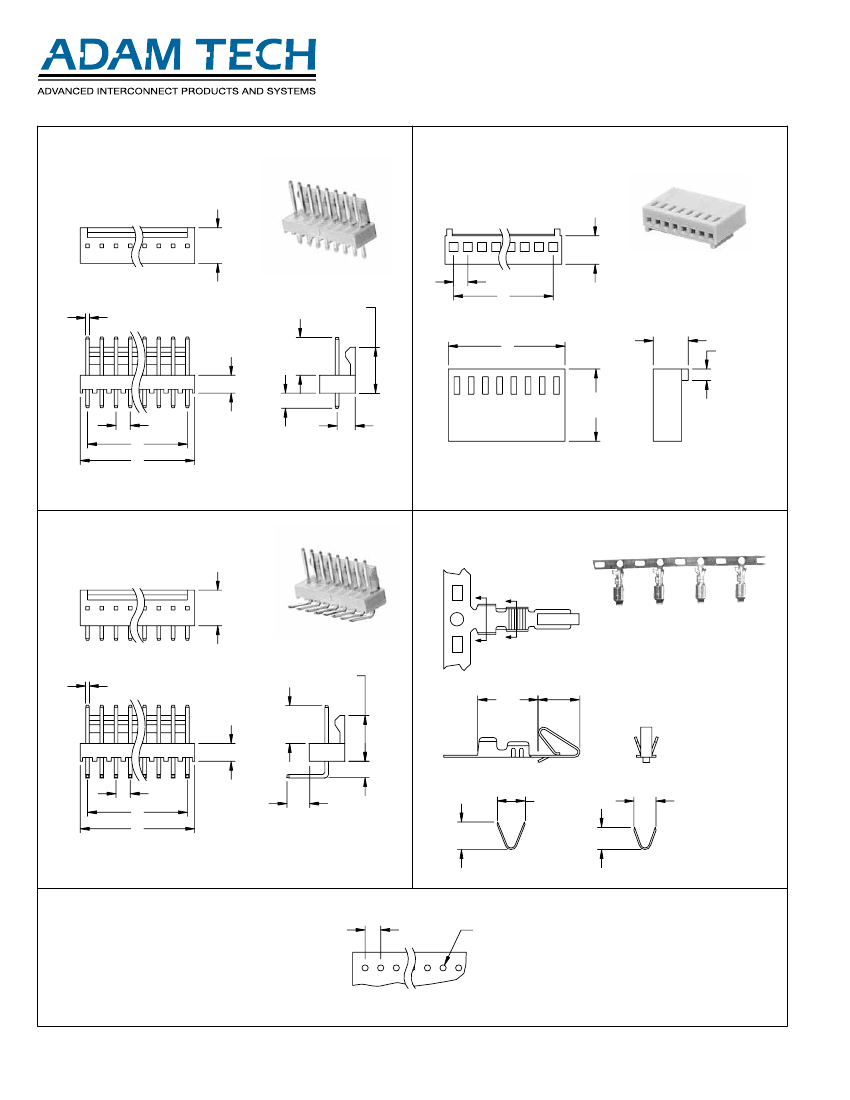

.100" HEADER & HOUSING SETS
.100" [2.54] CENTERLINE
LHA & MTA SERIES
LHA
STRAIGHT
MTA
HOUSING
.228
[5.80]
LHA-08-TS
.025 [0.64] SQ.
.453
[11.50]
.100 [2.54]
A
C
.193 [4.90]
MTA-08
.291
[7.40]
.134 [3.40]
.134 [3.40]
.100
[2.54]
A
B
.264
[6.70]
.500
[12.70]
.311
[7.90]
LHA
RIGHT ANGLE
MTA-C
CONTACT
.535 [13.60]
.063 [1.60]
SECTION B-B
B
.071
[1.80]
.228
[5.80]
LHA-08-TRA
.025
[0.64] SQ.
.453
[11.50]
A
.087
[2.20]
A
B
.075 [1.90]
SECTION A-A
.130
[3.30]
.291
[7.40]
.126 [3.20]
.071 [1.80]
.100
[2.54]
A
B
.130
[3.30]
.122 [3.10]
LHA
REVERSE RIGHT ANGLE
.228
[5.80]
LHA-08-TRB
.025
[0.64] SQ.
.453
[11.50]
.100
[2.54]
ø.047
[ ø1.20]
.291
[7.40]
.126 [3.20]
.071 [1.80]
.100
[2.54]
A
B
.130
[3.30]
Recommended PCB Layout
PCB LAYOUT
A = .100 [2.54] x No. of Spaces
B = .100 [2.54] X No. of Spaces + .100 [2.54]
C = .100 [2.54] X No. of Spaces + .122 [3.11]
www.adam-tech.com
265

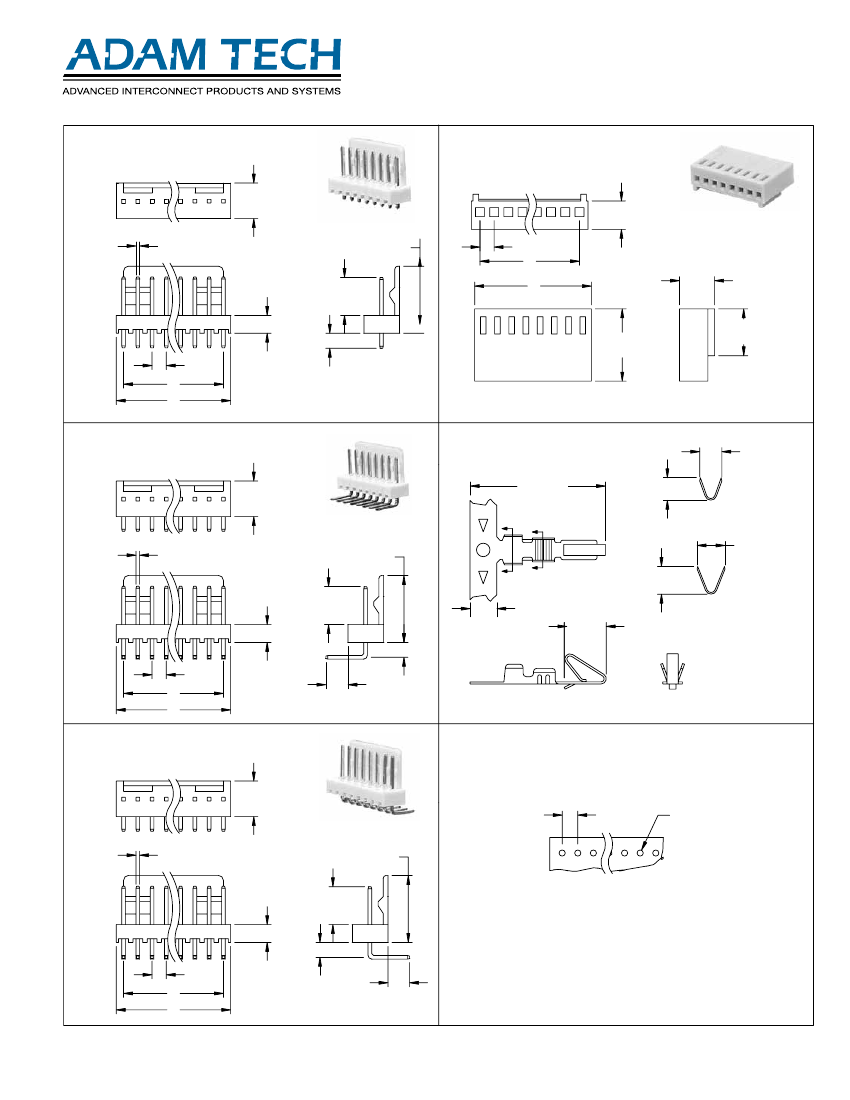

.100" HEADER & HOUSING SETS
LHS
STRAIGHT PCB MOUNT
.100" [2.54] CENTERLINE SINGLE & DUAL ROW
LHS & MTS SERIES
MTS
HOUSING
.252
[6.40]
.197 [5.00]
LHS-08-TS
.100 [2.54]
.327
[8.30]
A
MTS-08
.025 [0.64] SQ.
.299
[7.60]
.126 [3.20]
.134 [3.40]
.100
[2.54]
A
B
A = .100 [2.54] x No. of Spaces
B = .100 [2.54] X No. of Spaces + .104 [2.65]
C
.252
[6.40]
.089
[2.25]
.504
[12.80]
.122
[3.10]
A = .100 [2.54] x No. of Spaces
B = .100 [2.54] X No. of Spaces + .104 [2.65]
LHS
RIGHT ANGLE PCB MOUNT
MTS-C
CRIMP CONTACTS
A
.252
[6.40]
B
MTS-C-R
LHS-08-TRA
.327
[8.30]
.244
[6.20]
.264
[6.70]
.130
[3.30]
A
B
.025 [0.64] SQ.
.126 [3.20]
.093 [2.35]
.100
[2.54]
A
B
A = .100 [2.54] x No. of Spaces
B = .100 [2.54] X No. of Spaces + .104 [2.65]
.134
[3.40]
.075 [1.90]
SECTION A-A
.087
[2.20]
.063 [1.60]
SECTION B-B
.071
[1.80]
.100
[2.54]
ø.047
[1.20]
A = .100 [2.54] x No. of Spaces
B = .100 [2.54] X No. of Spaces + .104 [2.65]
Recommended PCB Layout
266
www.adam-tech.com
