SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N1144, Rev. -
39SPA135/A
39SPA150/A
Green Products
Power Surface Mount Schottky Rectifier
(135/150V, 30Amp)
Applications:
●
Switching power supply
●
Redundant power subsystems
●
Reverse battery protection
●
Converters
●
Many other high current AC/DC power supplies
Features:
•
•
•
•
•
•
•
•
•
175℃ T
J
operation
Low reverse leakage current
High surge capacities
Low forward voltage drop
High frequency operation
Low profile surface mount package
This is a Pb
−
Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

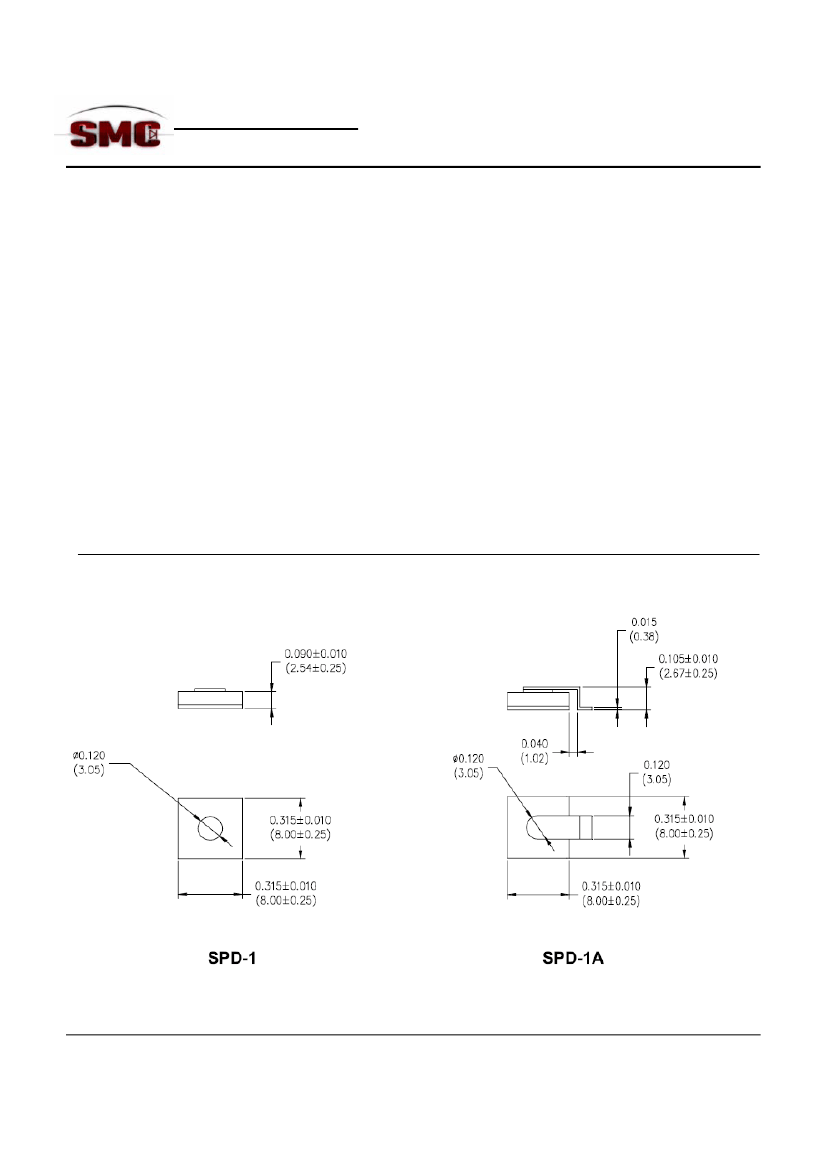

Mechanical Dimensions: In Inches / mm
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N1144, Rev. -
39SPA135/A
39SPA150/A
Green Products
Maximum Ratings:
Characteristics
Peak Inverse Voltage
Max.
Average
Forward
Current
Max. Peak One Cycle Non-
Repetitive Surge Current
Symbol
V
RWM
I
F(AV)
I
FSM
Condition
-
50% duty cycle, rectangular
wave form
8.3 ms, half Sine pulse
135
150
Max.
39SPA135/A
39SPA150/A
30
570
Units
V
A
A
Electrical Characteristics:
Characteristics
Max. Forward Voltage Drop*
Max. Reverse Current*
Symbol
V
F1
V
F2
I
R1
I
R2
Max. Junction Capacitance
C
T
*
Pulse Width < 300µs, Duty Cycle <2%
Condition
@ 30A, Pulse, T
J
= 25
°C
@ 30A, Pulse, T
J
= 125
°C
@V
R
= rated V
R
, Pulse,
T
J
= 25
°C
@V
R
= rated V
R
, Pulse,
T
J
= 125
°C
@V
R
= 5V, T
C
= 25
°C
f
SIG
= 1MHz,
V
SIG
=50mV(p-p)
Max.
0.84
0.68
1.0
15
1000
Units
V
V
mA
mA
pF
Thermal-Mechanical Specifications:
Characteristics
Max. Junction Temperature
Max. Storage Temperature
Maximum Thermal
Resistance Junction to Case
Case Style
Symbol
T
J
T
stg
R
θJC
Condition
-
-
DC operation
SPD-1/A
Specification
-55 to +175
-55 to +175
0.50
Units
°C
°C
°C/W
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•

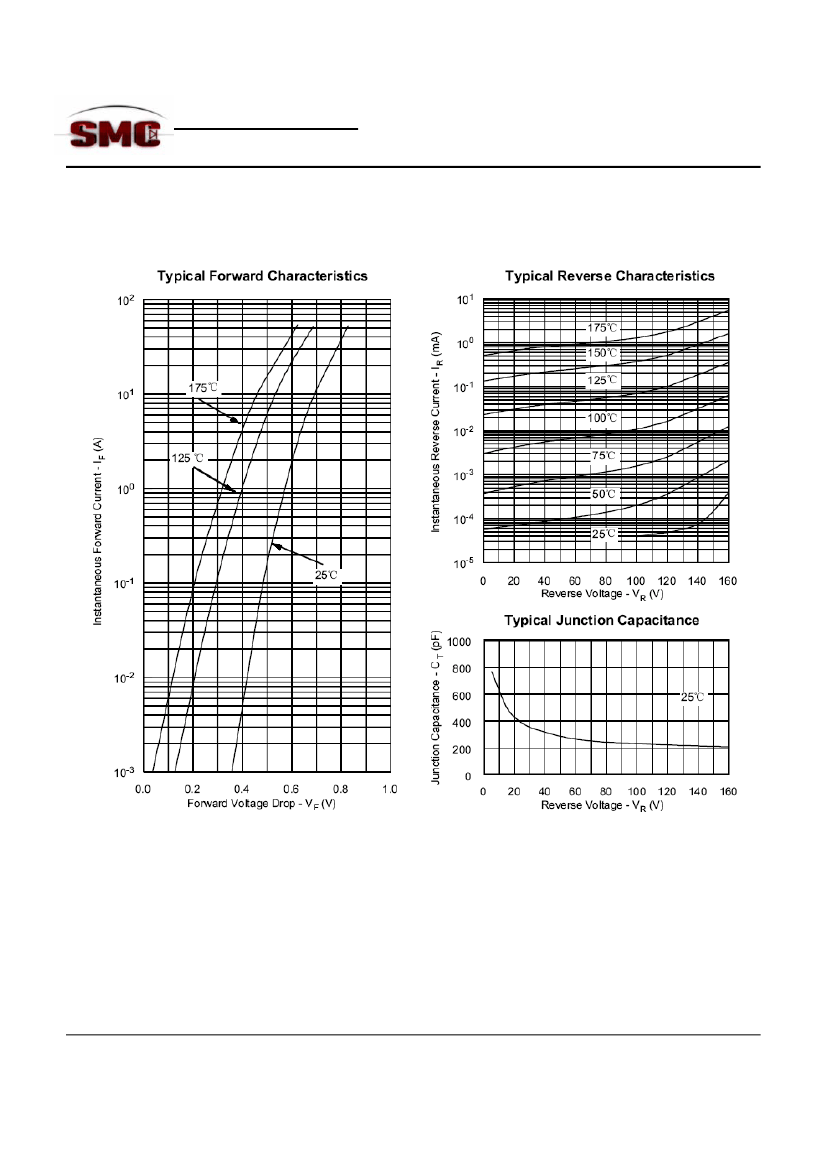

SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N1144, Rev. -
39SPA135/A
39SPA150/A
Green Products
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the SMC - Sangdest Microelectronics (Nanjing) Co., Ltd sales
department for the latest version of the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement .
3- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co., Ltd be liable for any damages that may result from an accident or
any other cause during operation of the user’s units according to the datasheet(s). SMC - Sangdest Microelectronics (Nanjing) Co., Ltd
assumes no responsibility for any intellectual property claims or any other problems that may result from applications of information,
products or circuits described in the datasheets.
4- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co., Ltd be liable for any failure in a semiconductor device or any
secondary damage resulting from use at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or SMC - Sangdest Microelectronics
(Nanjing) Co., Ltd.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of SMC
- Sangdest Microelectronics (Nanjing) Co., Ltd.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations..
•
