FR151
THRU
FR157
Elektronische Bauelemente
VOLTAGE 50V ~ 1000V
1.5AMP Fast Recovery Rectifiers
DO-15
FEATURES
* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability
.140(3.6)
.104(2.6)
DIA.
1.0(25.4)
MIN.
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Axial leads, solderable per MIL-STD-202,
method 208 guaranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 0.40 grams
.034(.9)
.028(.7)
DIA.
.300(7.6)
.230(5.8)
1.0(25.4)
MIN.
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature unless otherwise specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
.375"(9.5mm) Lead Length at Ta=75 C
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward Voltage at 1.5A
Maximum DC Reverse Current
Ta=25 C
at Rated DC Blocking Voltage
Ta=100 C
Maximum Reverse Recovery Time (Note 1)
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range T
J
, T
STG
NOTES:
FR151 FR152 FR153
50
35
50
100
70
100
200
140
200
FR154 FR155 FR156 FR157 UNITS
400
280
400
1.5
50
1.3
5.0
100
600
420
600
800
560
800
1000
700
1000
V
V
V
A
A
V
µ
A
µ
A
250
500
nS
pF
C
150
30
-65 +150
1. Reverse Recovery Time test condition: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
FR151
THRU
FR157
Elektronische Bauelemente
VOLTAGE 50V ~ 1000V
1.5AMP Fast Recovery Rectifiers

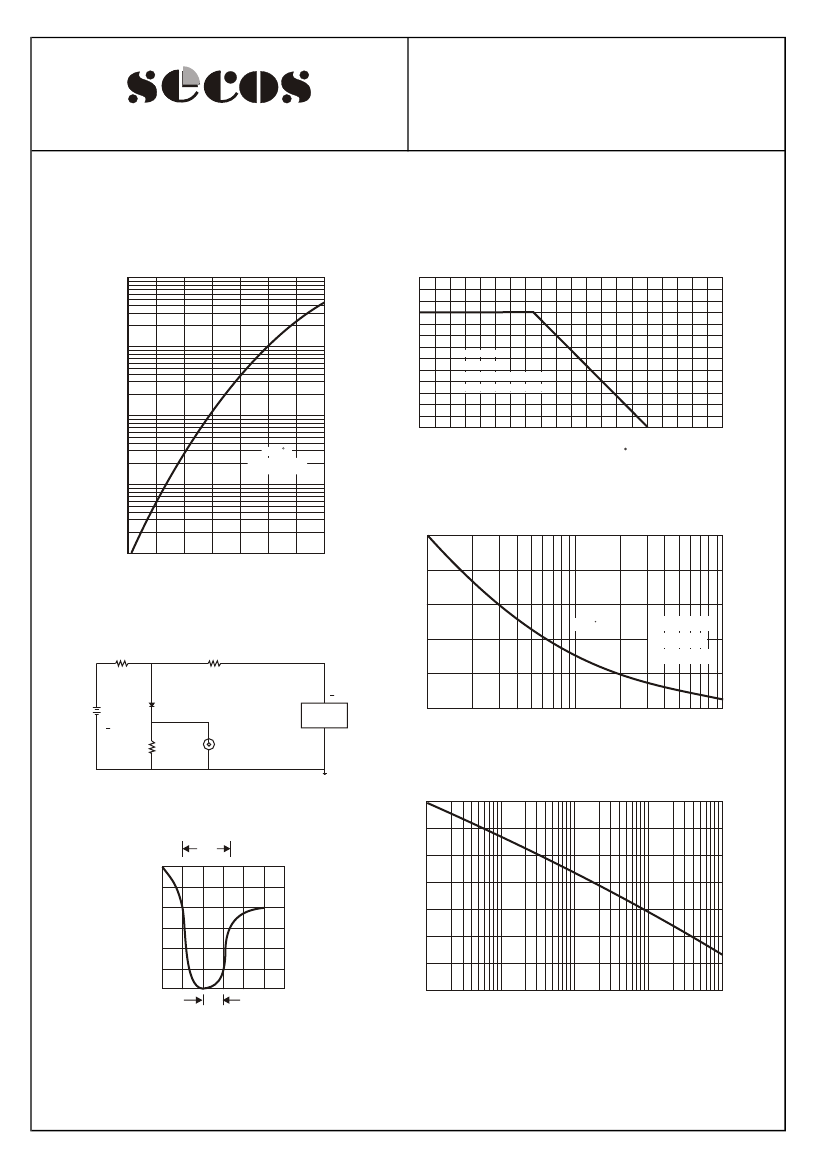

RATING AND CHARACTERISTIC CURVES (FR151 THRU FR157)
FIG.1-TYPICAL FORWARD
CHARACTERISTICS
AVERAGE FORWARD CURRENT,(A)
FIG.2-TYPICAL FORWARD CURRENT DERATING CURVE
50
INSTANTANEOUS FORWARD CURRENT,(A)
1.8
1.5
1.2
0.9
0.6
0.3
0
0
20
40
60
80
100
120
140
160
180
200
Single Phase
Half Wave 60Hz
Resistive Or Inductive Load
0.375"(9.5mm) Lead Length
10
3.0
1.0
Tj=25 C
Pulse Width 300us
1% Duty Cycle
AMBIENT TEMPERATURE,( C)
0.1
FIG.4-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT,(A)
50
.01
.6
.8
1.0
1.2
1.4
1.6
1.8
2.0
FORWARD VOLT
AGE,(V)
40
FIG.3- TEST CIRCUIT DIAGRAM AND REVERSE
RECOVERY TIME CHARACTERISTICS
50
W
NONINDUCTIVE
10
W
NONINDUCTIVE
30
Tj=25 C
8.3ms Single Half
Sine Wave
JEDEC method
20
10
(+)
25Vdc
(approx.)
( )
1
W
NON-
INDUCTIVE
OSCILLISCOPE
(NOTE 1)
D.U.T.
( )
PULSE
GENERATOR
(NOTE 2)
(+)
0
1
5
10
50
100
NUMBER OF CYCLES AT 60Hz
NOTES: 1. Rise Time= 7ns max., Input Impedance= 1 megohm.22pF.
2. Rise Time= 10ns max., Source Impedance= 50 ohms.
FIG.5-TYPICAL JUNCTION CAPACITANCE
70
60
50
40
30
20
10
trr
+0.5A
|
|
|
|
|
|
|
|
0
-0.25A
JUNCTION CAPACITANCE,(pF)
-1.0A
1cm
SET TIME BASE FOR
50 / 10ns / cm
0
.01
.05
.1
.5
1
5
10
50
100
REVERSE VOLTAGE,(V)
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
