DB1C-C1LB Overview

SNAP ACTING/LIMIT SWITCH

DB1C-C1LB Parametric

Parameter Name	Attribute value
Maker	The Cherry Corporation
Reach Compliance Code	unknow
Manufacturer's serial number	DB
Switch type	SNAP ACTING/LIMIT SWITCH

Preview

Download Datasheet

View All

SNAP SWITCHES

DB subminiature switch

Technical speciﬁcations

Contact conﬁguration

Contact gap

Switching voltage

Switched current

Operating force

Total travel

Mechanical life

Electrical life (max. load)

Ambient temperature

Proof tracking index

Materials

Base

Cover

Actuator

Contacts

S.P

.D.T., S.P

.S.T. - N.O., S.P

.S.T. - N.C.

< 3 mm (µ)

max. 250 V AC

0,1 to 10 A AC, dependig on model

(see table)

70 to 280 cN without auxiliary actuator,

depending on model

1,6 mm

Min. 10 x 10

operations (see table)

Up to 10

operations (see table)

-40 to +85 °C /120 °C

PTI 175 (PTI 250 on request)

PET (UL 94 V-0)

PBT (UL 94 V-0); PET (UL 94 V-0)

PBT (UL 94 V-0) T120, POM (UL 94 HB) T85

AgSnO

, AgNi, AuAgPt (Crosspoint)

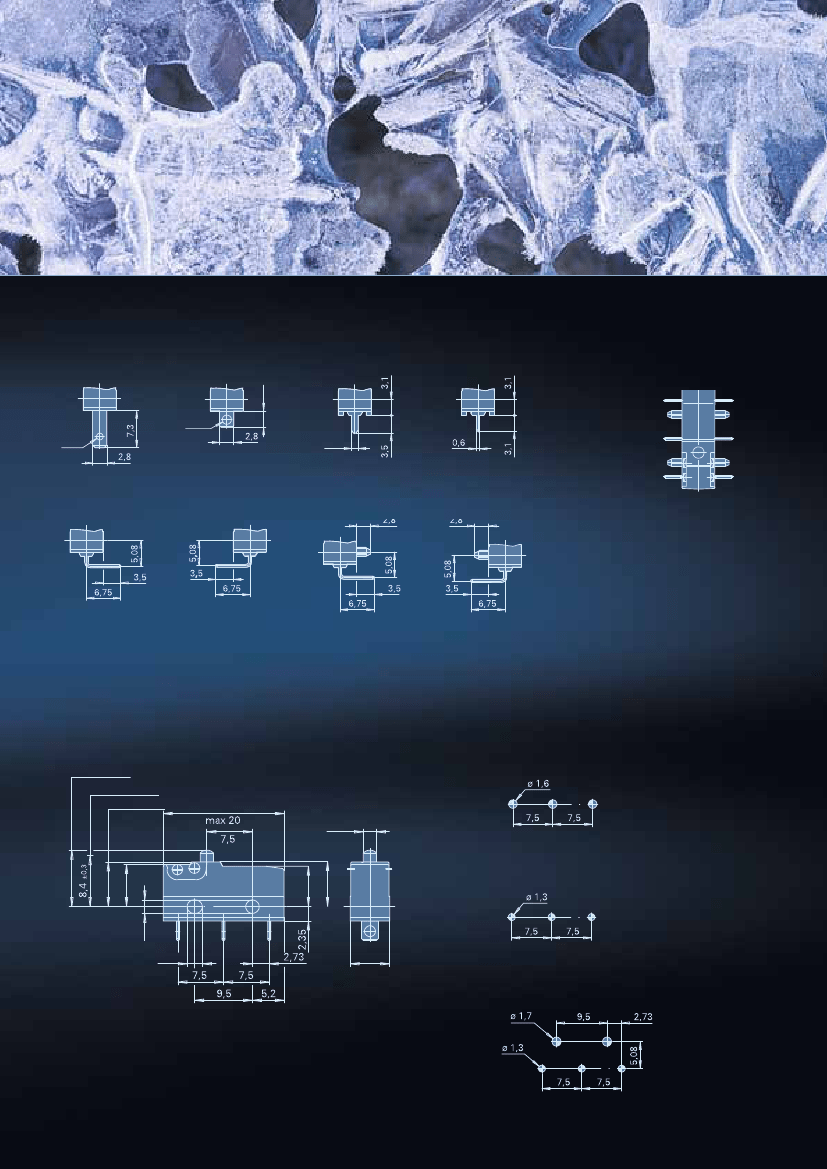

Terminals

Auxiliary actuator

Approvals

depending on model

Degree of protection

(switch interior)

IP50

CuZn (silver-plated)

Stainless steel or plastic

For detailed information and the layout of the details described above,

please do not hesitate to ask for our technical speciﬁcations and drawing.

Features



Precision switch with high repeat accuracy



Available for up to 120 °C operating temperature



Nominal current up to 10 A at 250 V AC



Various auxiliary actuators (can also be retroﬁtted),

two mounting positions



Various application-speciﬁc contact materials



Mechanical operational life up to 15 x 10

actuations



Wide variety of terminal types

Electrical rating and operating life

Electrical life

at rated load for 40T85*

(operations)

UL 1054

5 A 125 –250 V AC

10,1 A, 125 –250 AC, 1/4 HP 125 V AC

0,1 A 125–250 V AC

4 A, 125 –250 V AC

1 A, 125 –250 V AC

10.1 A, 125 –250 V AC, 1/4 HP 125 V AC

3 A, 125 –250 V AC

5 A, 125 –250 V AC

acc. to EN

10.000

50.000

10.000

50.000

acc. to UL

6.000

100.000

6.000

Operating

force max.

(cN)

150

250

150

280

150

Electrical rating according to

EN 61058-1

6A 250 V AC

10 (1,5) A, 250 V AC

0.1 A, 250 V AC

4 A, 250 V AC

1 A, 250 V AC

10 (1,5) A, 250 V AC

10 (3) A, 250 V AC

3 A, 250 V AC

6 (2) A, 250 V AC

Mechanical

lifetime

15 x 10

10 x 10

15 x 10

10 x 10

15 x 10

Housing mark

DB 1

DB 2

DB 3

DB 4

DB 5*

DB 7*

DB L

DB M

DB O

* only T85

Special versions with lower ratings upon request
