SCS244MT
Elektronische Bauelemente
0.2A , 250V
Hermetically Sealed Glass Switching Diode
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
DO-34 Package (JEDEC DO-204)
Through-Hole Device Type Mounting
Hermetically Sealed Glass
Compression Bonded Construction
Solder Hot Dip Tin (Sn) Terminal Finish
Cathode Indicated By Polarity Band
DO-34
REF.
A
B
C
D
Millimeter
Min.
Max.
25.0
38.1
2.16
3.04
1.27
1.9
0.46
0.56
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25°C unless otherwise specified)
Parameter
Maximum Repetitive Reverse Voltage
Average Rectified Forward Current
Non-repetitive Peak Forward
Current
Power Dissipation
Junction, Storage Temperature
Pulse Width = 1s
I
FM(Surge)
Pulse Width = 1µs
P
D
T
J
, T
STG
4
300
150, -65~150
mW
°
C
Symbol
V
RRM
I
F(AV)
Value
250
200
1
Unit
V
mA
A
Note:
1. These ratings are limiting values above which the serviceability of the diode may be impaired.
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise specified)
Parameter
Breakdown Voltage
Leakage Current
Forward Voltage
Capacitance
Reverse Recovery Time
Symbol
B
V
I
R
V
F
C
T
RR
Min.
250
-
-
-
-
Max.
-
10
1.5
5
50
Unit
V
µA
V
pF
nS
I
R
=100µA
V
R
=220V
I
F
=200mA
Test Condition
V
R
=0, f=1MHz
I
F
=I
R
=30mA, I
RR
=3mA, R
L
=100
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
14-Mar-2013 Rev.A
Page 1 of 2
SCS244MT
Elektronische Bauelemente
0.2A , 250V
Hermetically Sealed Glass Switching Diode

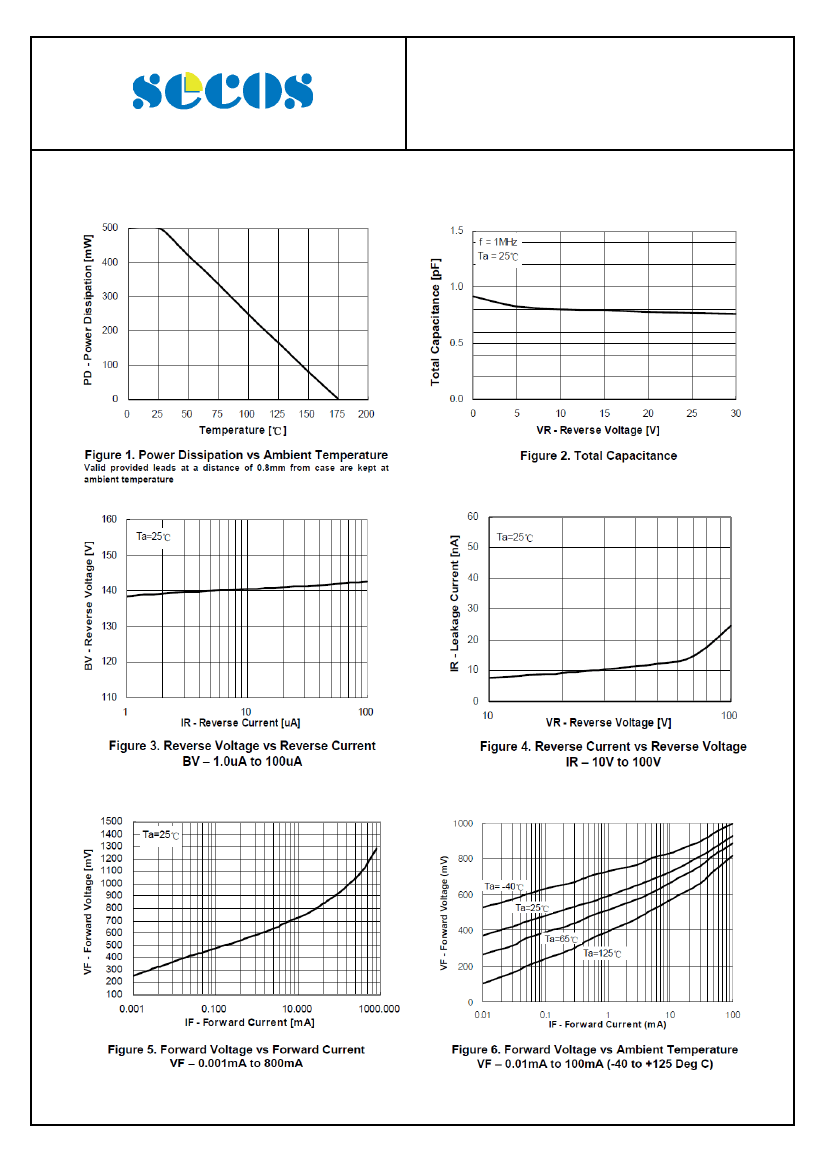

CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
14-Mar-2013 Rev.A
Page 2 of 2
