FR306 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FR306

FR306: Description3 A, 800 V, SILICON, RECTIFIER DIODE, DO-27; CategoryDiscrete semiconductor diode; File Size101KB，2 Pages; ManufacturerTak Cheong; Websitehttp://www.takcheong.com/

Download Datasheet Parametric Compare View All

FR306 Overview

3 A, 800 V, SILICON, RECTIFIER DIODE, DO-27

FR306 Parametric

Parameter Name	Attribute value
Maker	Tak Cheong
Parts packaging code	DO-201AD
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Contacts	2
Reach Compliance Code	compli
Other features	LOW LEAKAGE CURRENT
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse recovery time	0.5 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

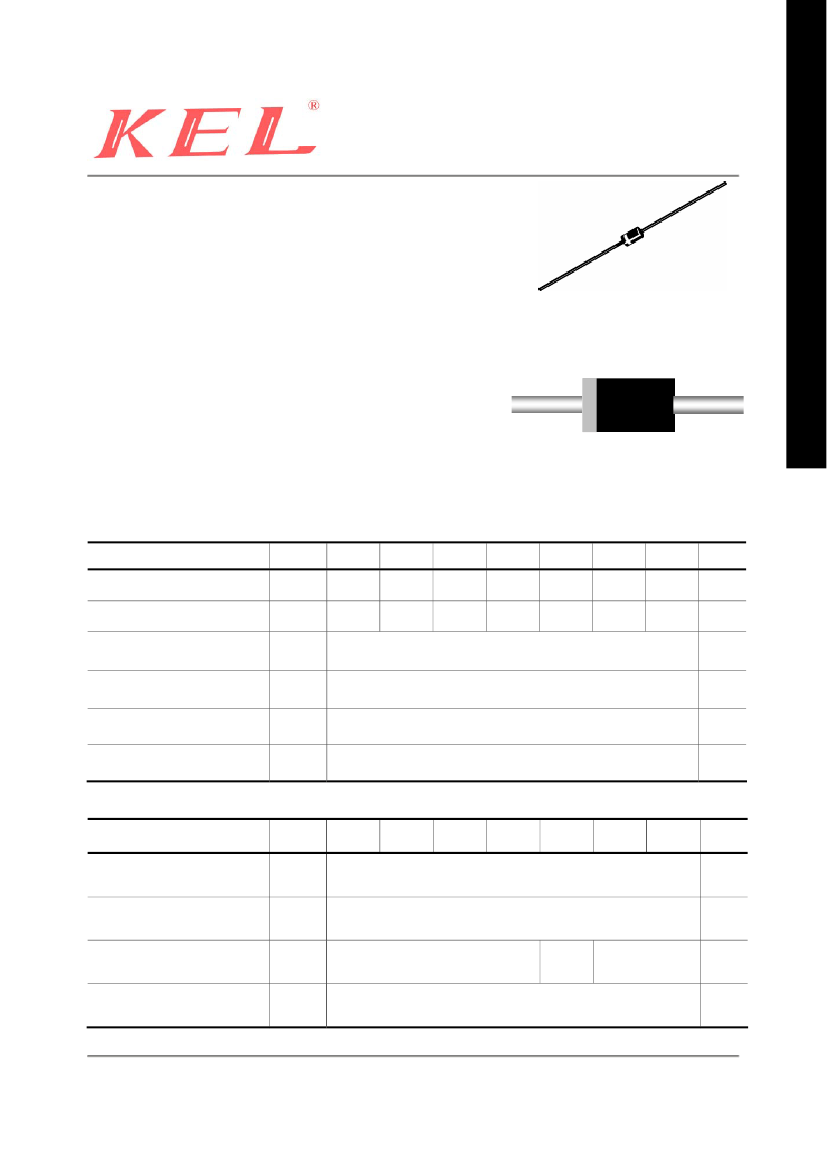

P re lim in ary Da t a S he et

FR301

THRU

FR307

3.0AMP.

Fast Recovery Rectifiers

VOLTAGE:50 TO 1000V

CURRENT:3.0A

AXIAL LEAD

DO-201AD

Specification Features:

Case: Epoxy, Molded

Weight: 1.20Gram (Approximately)

High current capability, Low leakage current

High surge current capability

Finish: All External Surfaces Corrosion Resistant And Terminal Leads Are

Readily Solderable

Lead And Mounting Surface Temperature For Soldering Purposed:

260℃ Max. For 10 Seconds 1/16 Inch From Case

RoHS Compliant

Cathode Indicated By Polarity Band

DEVICE MARKING DIAGRAM

FR30X : Device Name FR301~ FR307

KEL

: KEL Logo

Absolute Maximum Ratings

Parameter

Maximum Repetitive Peak

Reverse Voltage

Maximum DC Blocking Voltage

Maximum Average Forward

Rectifier Current.

(0.375” Lead Length @ T

=75℃)

Non-repetitive Peak Forward

Surge Current.

(8.3mS Single Half Sine-wave)

Operating Junction and Storage

Temperature Range

Thermal Resistance

(Junction to Ambient)

(Note 1)

= 25°C unless otherwise noted

Symbol

301

302

303

RRM

F(AV)

FSM

STG

θJA

100

200

304

400

3.0

150

-65 to +150

305

600

FR30X

KEL

306

800

307

1000

Units

°C

°C/W

Electrical Characteristics

Parameter

= 25°C unless otherwise noted

Symbol

301

302

303

304

305

306

307

Units

Reverse Current @V

Forward Voltage @3A

Maximum Reverse Recovery Time

(Note 2)

Total Capacitance

@VR=4V, f=1MHz

1.3

150

250

500

Apr. 2008 Release / Orig

Page 1

FR301 through FR307 Series

FR306 Related Products

	FR306	FR307
Description	3 A, 800 V, SILICON, RECTIFIER DIODE, DO-27	3 A, 1000 V, SILICON, RECTIFIER DIODE, DO-201AD
Maker	Tak Cheong	Tak Cheong
Parts packaging code	DO-201AD	DO-201AD
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2	O-PALF-W2
Contacts	2	2
Reach Compliance Code	compli	unknown
Other features	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT
application	FAST RECOVERY	FAST RECOVERY
Shell connection	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-201AD	DO-201AD
JESD-30 code	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	150 A	150 A
Number of components	1	1
Phase	1	1
Number of terminals	2	2
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND
Package form	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	800 V	1000 V
Maximum reverse recovery time	0.5 µs	0.5 µs
surface mount	NO	NO
Terminal form	WIRE	WIRE
Terminal location	AXIAL	AXIAL
