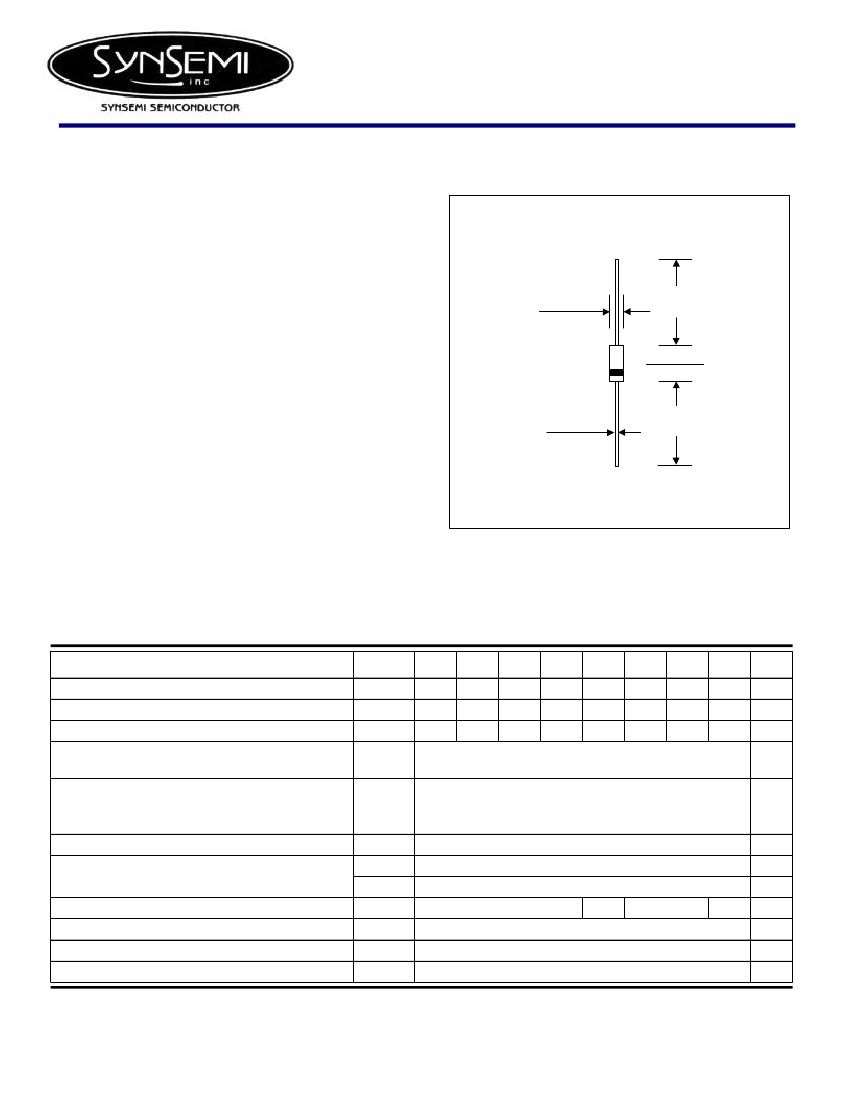

FR301 - FR307-STR
PRV : 50 - 1000 Volts
Io : 3.0 Amperes
FEATURES :
*
*
*
*
*
*
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Fast switching for high efficiency
FAST RECOVERY
RECTIFIER DIODES
DO-201AD
0.21 (5.33)
0.19 (4.82)
1.00 (25.4)
MIN.
0.375 (9.52)
0.285 (7.24)
MECHANICAL DATA :
* Case : DO-201AD Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 1.16 grams
0.052 (1.32)
0.048 (1.22)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
Rating at 25
°
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current
0.375"(9.5mm) Lead Length
Ta = 55
°C
Peak Forward Surge Current
8.3ms Single half sine wave Superimposed
on rated load (JEDEC Method)
Maximum Peak Forward Voltage at I
F
= 3 A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Ta = 25
°C
Ta = 100
°C
SYMBOL
FR301 FR302 FR303 FR304 FR305 FR306 FR307
FR307
-STR
UNIT
V
RRM
V
RMS
V
DC
I
F(AV)
50
35
50
100
70
100
200
140
200
400
280
400
3.0
600
420
600
800
560
800
1000
700
1000
1000
700
1000
V
V
V
A
I
FSM
V
F
I
R
I
R(H)
Trr
200
1.3
10
150
150
60
- 65 to + 150
- 65 to + 150
250
500
250
A
V
µA
µA
ns
pf
°C
°C
Maximum Reverse Recovery Time ( Note 1 )
Typical Junction Capacitance ( Note 2 )
Junction Temperature Range
Storage Temperature Range
C
J
T
J
T
STG
Notes :
( 1 ) Reverse Recovery Test Conditions : I
F
= 0.5 A, I
R
= 1.0 A, Irr = 0.25 A.
( 2 ) Measured at 1.0 MHz and applied reverse voltage of 4.0 V
DC
Page 1 of 2
Rev. 01 : January 10, 2004

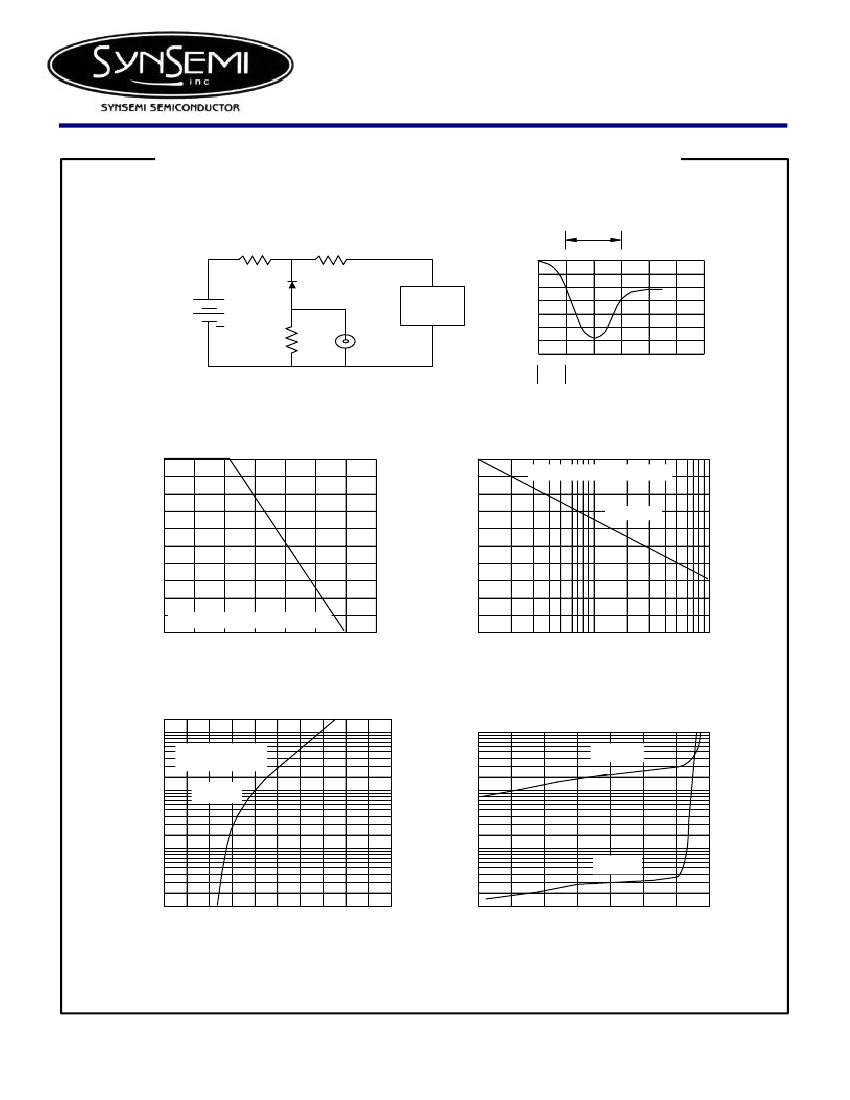

RATING AND CHARACTERISTIC CURVES ( FR301 - FR307-STR )
FIG.1 - REVERSE RECOVERY TIME CHARACTERISTIC AND TEST CIRCUIT DIAGRAM
50
Ω
10
Ω
+ 0.5 A
D.U.T.
50 Vdc
(approx)
1
Ω
PULSE
GENERATOR
( NOTE 2 )
OSCILLOSCOPE
( NOTE 1 )
0
- 0.25 A
Trr
+
- 1.0 A
SET TIME BASE FOR 50/100 ns/cm
NOTES : 1. Rise Time = 7 ns max., Input Impedance = 1 megaohm, 22 pF.
2. Rise time = 10 ns max., Source Impedance = 50 ohms.
3. All Resistors = Non-inductive Types.
1 cm
FIG.2 - DERATING CURVE FOR OUTPUT
RECTIFIED CURRENT
AVERAGE FORWARD OUTPUT
CURRENT, AMPERES
3.0
200
FIG.3 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE
CURRENT, AMPERES
8.3 ms SINGLE HALF SINE WAVE
160
Ta = 50
°
C
120
2.4
1.8
1.2
80
0.6
60Hz RESISTIVE OR INDUCTIVE LOAD
0
0
25
50
75
100
125
150
175
40
0
1
2
4
6
10
20
40
60 100
AMBIENT TEMPERATURE, (
°C)
NUMBER OF CYCLES AT 60Hz
FIG.4 - TYPICAL FORWARD CHARACTERISTICS
FORWARD CURRENT, AMPERES
10
Pulse Width = 300
µs
1% Duty Cycle
T
J
= 25
°
C
FIG.5 - TYPICAL REVERSE CHARACTERISTICS
REVERSE CURRENT, MICROAMPERES
10
T
J
= 100
°
C
20
1.0
1.0
0.1
0.1
T
J
= 25
°
C
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
0.01
0
20
40
60
80
100
120
140
FORWARD VOLTAGE, VOLTS
PERCENT OF RATED REVERSE
VOLTAGE, (%)
Page 2 of 2
Rev. 01 : January 10, 2004
