8D021J77PBL

Description
MIL Series Connector,
CategoryThe connector    The connector
File Size435KB,2 Pages
ManufacturerEsterline Technologies Corporation
Download Datasheet Parametric View All

8D021J77PBL Overview

MIL Series Connector,

8D021J77PBL Parametric

Parameter NameAttribute value
MakerEsterline Technologies Corporation
Reach Compliance Codeunknow
ECCN codeEAR99
Connector typeMIL SERIES CONNECTOR
LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Composite
: Olive drab Cadmium
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles

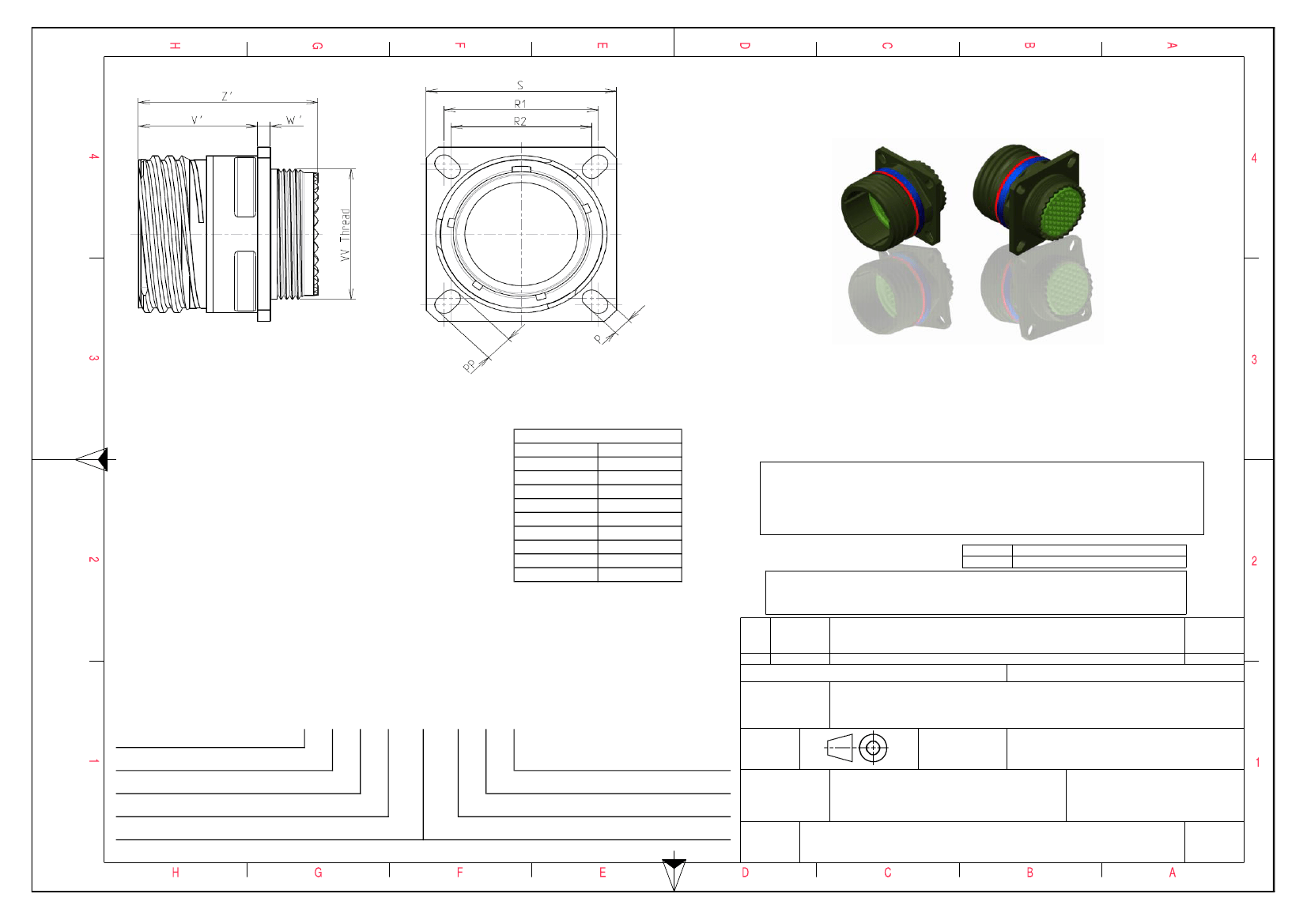

Connector dimension
Dim
Nominal
P
3.25±0.2
PP
4.93±0.2
R1
31.75
R2
29.36
S
39.7±0.3
V'
18.7+1.4/-0
W'
2.1/4.35
Z'
32 Max
VV THREAD
M31x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered without Souriau contacts
-Temperature Range
-Salt Spray
: -65°C to +175°C
: 2000 hours
PN: 8D021J77PBL
A
ISS
03-11-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:
8D
0
-
21
J
77
P
B
L
Delivered W/O Contacts
ORIENTATION : B
CONTACT TYPE : PIN(500 Matings)
Olive drab Cadmium

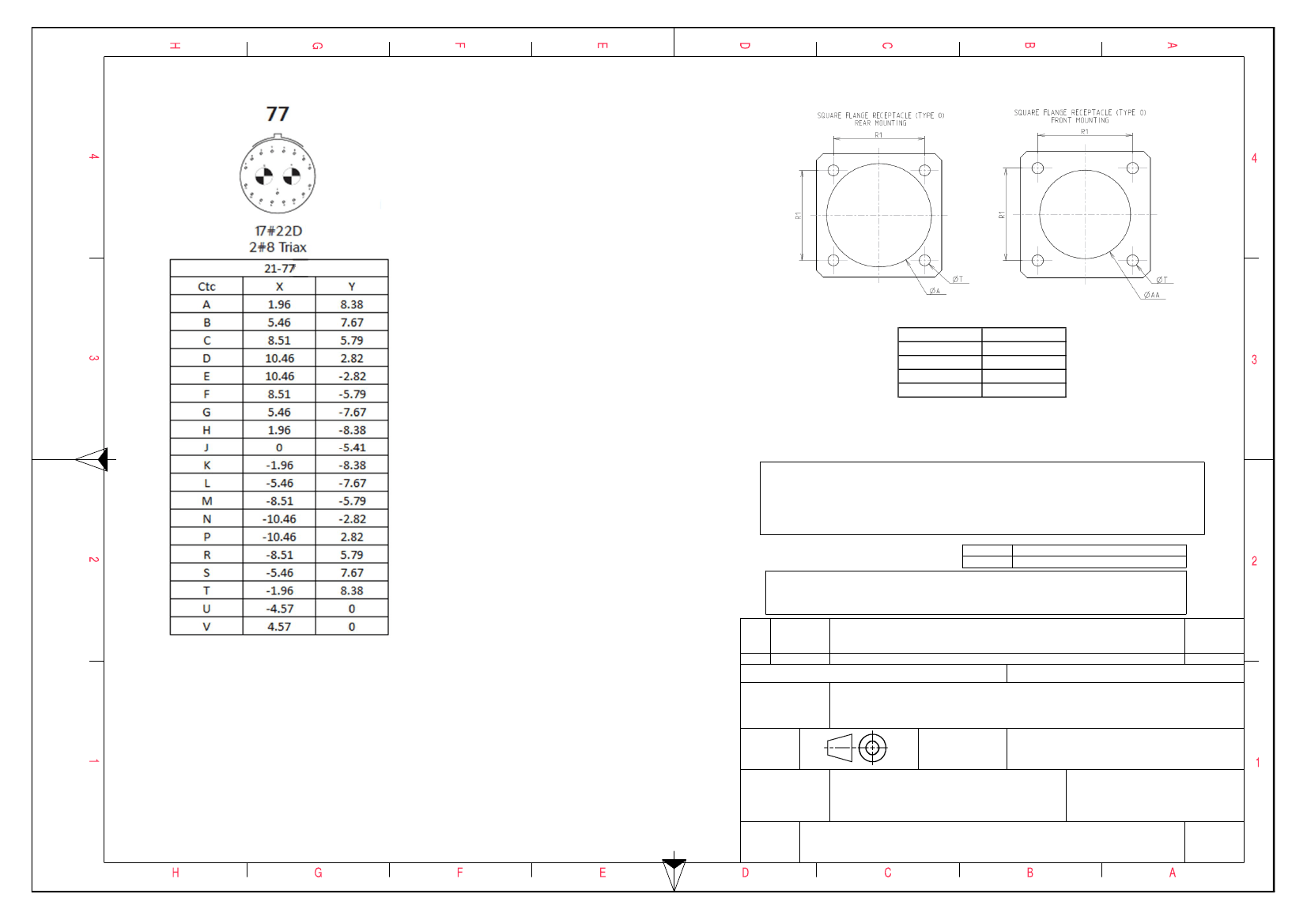

CONTACT LAYOUT : 21-77
FORMAT
Composite Receptacle 8D series
General linear
Tolerances:
±--
SCALE
NPRDS / PROJECT
SHELL TYPE : Square Flange Receptacle
CONTACT TYPE
SHELL SIZE : 21
PLATING
:
J =
: Standard Crimp Contact
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
A3
WWW.SOURIAU.COM
SOURIAU DRG N°
8D021J77PBL-C
SHEET
1/2
