8TA60835PN Overview

Circular Connector, 6 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug,

8TA60835PN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Esterline Technologies Corporation
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-38999, COMPACTABLE CONTACT: 8599-0702 JJ
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	ZINC PLATED
Shell material	ALUMINUM ALLOY
Housing size	8
Termination type	CRIMP
Total number of contacts	6

Preview

Download Datasheet

View All

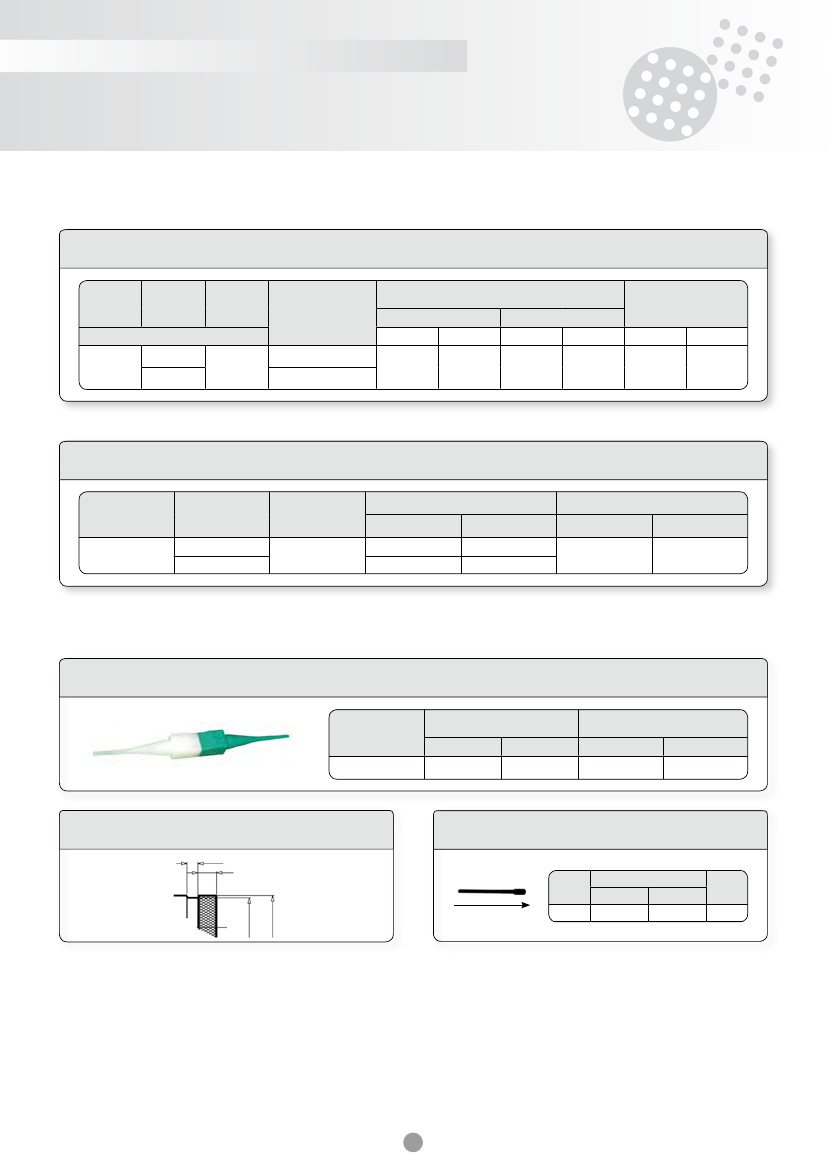

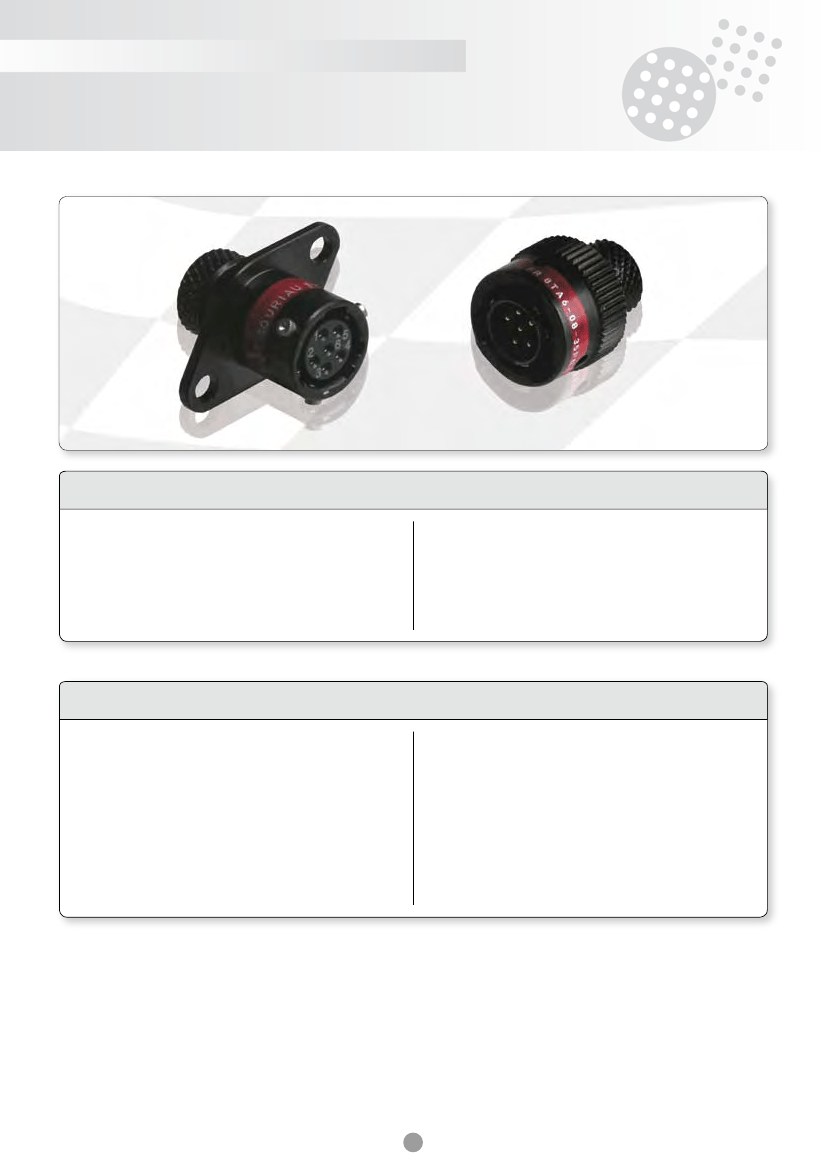

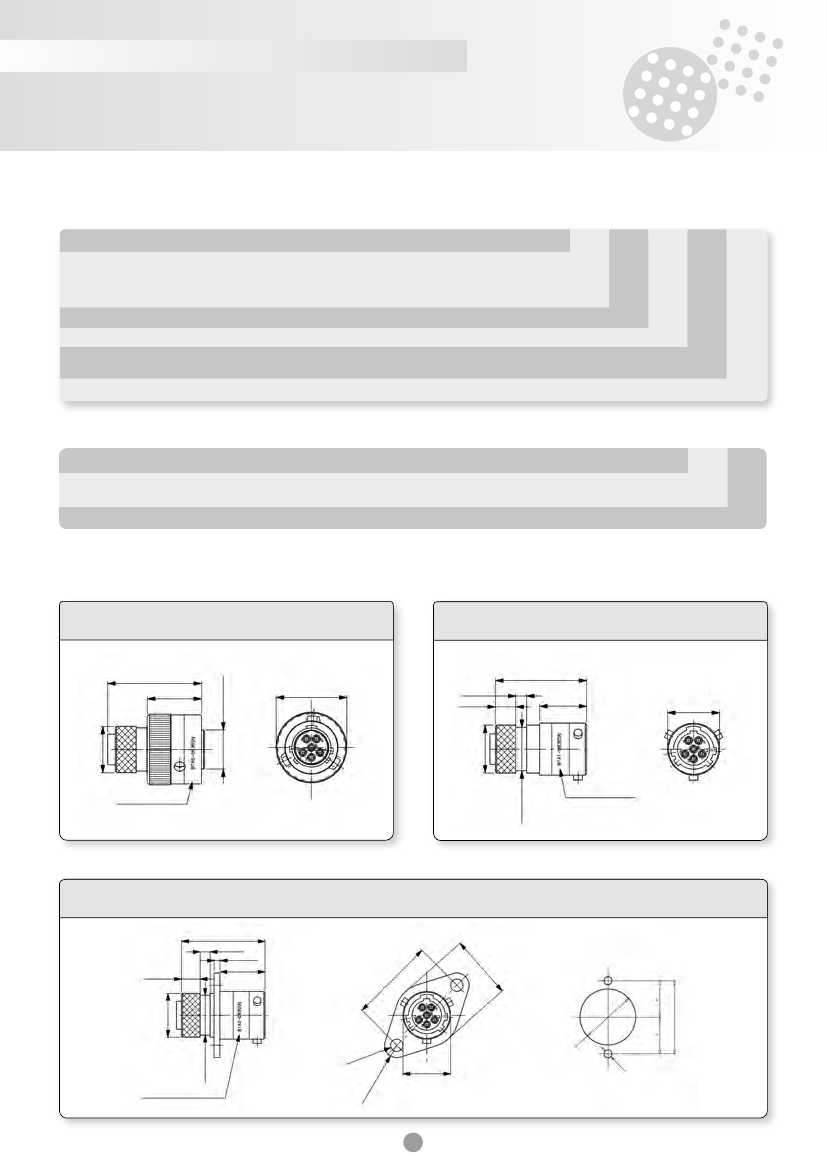

8TA Connector

Features & Benefits

• Rugged aluminium body to ensure long service life in the

harshest environment

• Compact low profile derived from MIL-DTL-38999 Series 2

• 6 gold plated #22D contacts

• Environment sealing from interfacial seal and rear grommet

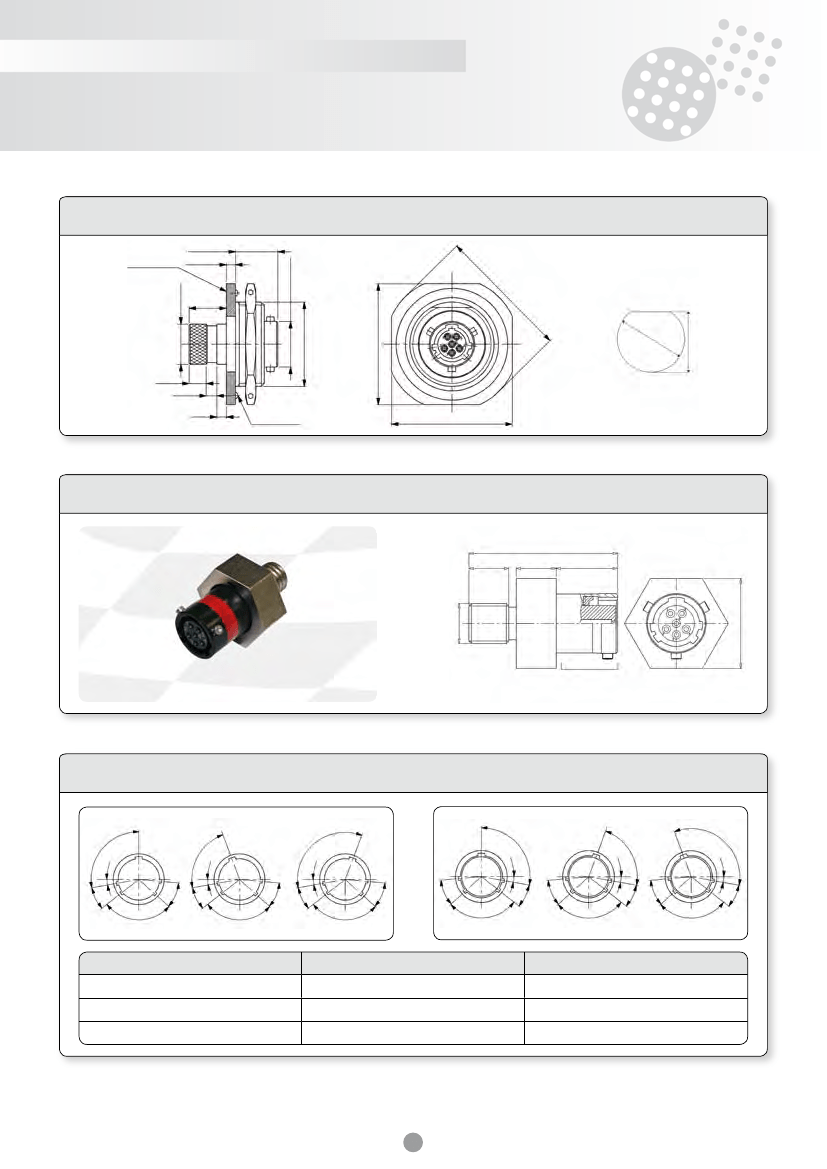

• Positive locking mechanism with locked colour indicators 3

keyway orientations

• Boot termination feature

• Conductive black zinc plating

Technical characteristics

Mechanical

• Shell

• Shell plating

• Insulator

• Seal

• Contact

• Contact plating

• Endurance

• Shock resistance

• Vibration resistance

• Contact retention

Aluminium alloy

Conductive black zinc

Thermoplastic

Liquid silicone rubber

Copper alloy

Gold

500 matings/unmatings

300 g for 3 ms and EIA-364-27

random 100 to 1000 Hz - 1 g²/Hz

45 N

Electrical

• Test voltage

• Contact resistance

• Insulation resistance

• Contact rating

• Shell continuity

300 Vrms (sea level)

4.6 mΩ

≥

5000 MΩ

(at

500 Vdc)

<60 mΩ

Climatic

• Temperature range

• Sealing mated connectors

• Salt spray

-55°C to +1

75°C

IP67

(1 metre for 30 min. minimum)

48 hours
