TCP7334-012100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> TCP7334-012100

TCP7334-012100: DescriptionTelecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Plug; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerHosiden Corporation

Download Datasheet Parametric Compare View All

TCP7334-012100 Overview

Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Plug

TCP7334-012100 Parametric

Parameter Name	Attribute value
Maker	Hosiden Corporation
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

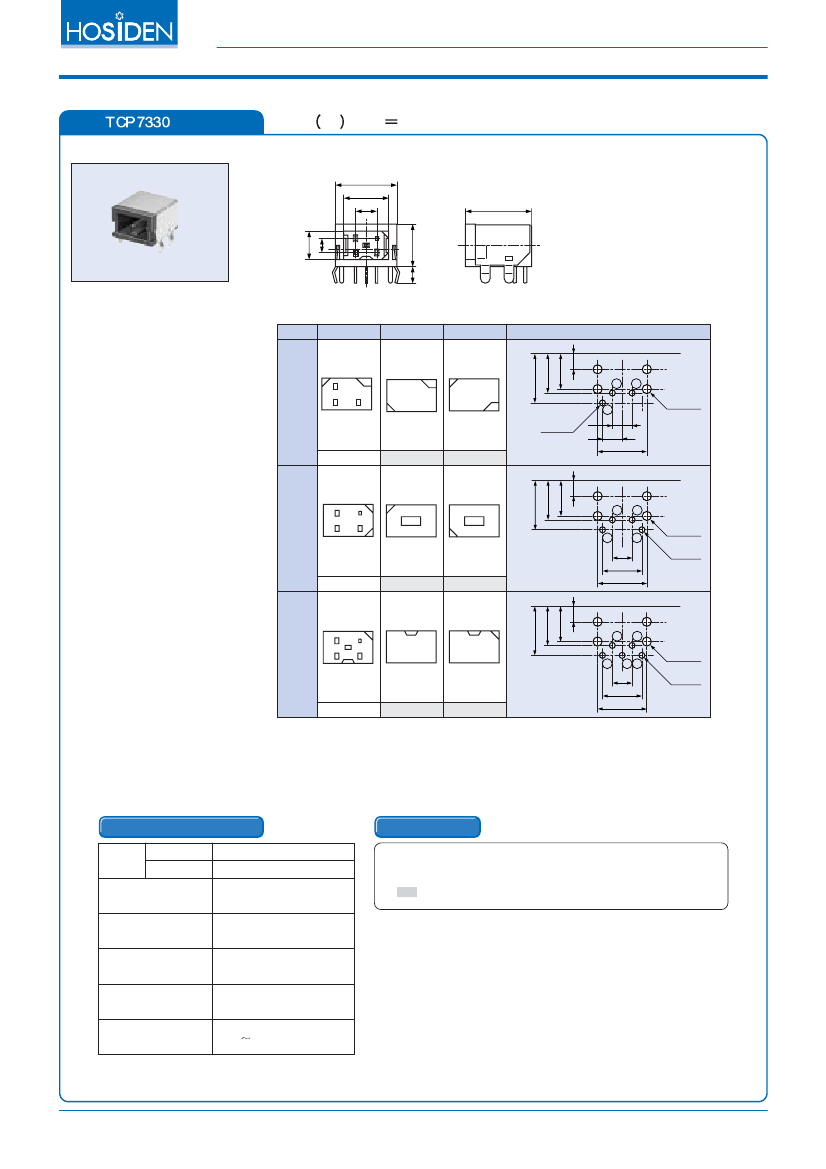

Rectangular Connectors for power source use

Unit: mm

Series

Half Lock Type

Plug 5P

9 mm

9.5

4.5

TCP7335-010100

Contacts

Key Type

Hole Layout (Bottom View)

3.5

12.5

2.3

Hole

1.5

Hole

TCP7333-010100 TCP7333-011100 TCP7333-012100

12.5

3 4

12.5

2.3

Hole

1.5

Hole

1 2

TCP7334-010100 TCP7334-011100 TCP7334-012100

12.5

2.3

Hole

1.5

Hole

TCP7335-010100 TCP7335-011100 TCP7335-012100

5 4

12.5

Specifications

Rating

Pin Nos. 1~3

Pin Nos. 4, 5

12 V DC 5 A Max.

12 V DC 1 A Max.

50 MΩ Min. at 250 V DC

Notes

1. Socket Suitability.

The Sockets are sultable for use with the TCS7330 Series (see page 6).

2. Color: Black

: Upon your request (standard item).

Insulation Resistance

Dielectric Strength

250 V AC/1 min

Contact Resistance

30 mΩ Max.

Insertion Force

49 N Max.

Withdrawal Force

9.8

49 N

TCP7334-012100 Related Products

	TCP7334-012100	TCP7333-010100	TCP7335-012100	TCP7335-010100	TCP7334-011100	TCP7335-011100
Description	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Plug	Telecom and Datacom Connector, 3 Contact(s), Male, Right Angle, Solder Terminal, Plug	Telecom and Datacom Connector, 5 Contact(s), Male, Right Angle, Solder Terminal, Plug	Telecom and Datacom Connector, 5 Contact(s), Male, Right Angle, Solder Terminal, Plug	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Plug	Telecom and Datacom Connector, 5 Contact(s), Male, Right Angle, Solder Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	3	5	5	4	5
Maker	Hosiden Corporation	Hosiden Corporation	-	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation
