TCS5783-014151(P.11) datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> TCS5783-014151(P.11)

Preview

TCS5783-014151(P.11): DescriptionCircular DIN Connector, 20 Contact(s), Male, Cable Mount, Socket; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerHosiden Corporation

Download Datasheet Parametric Compare View All

TCS5783-014151(P.11) Overview

Circular DIN Connector, 20 Contact(s), Male, Cable Mount, Socket

TCS5783-014151(P.11) Parametric

Parameter Name	Attribute value
Maker	Hosiden Corporation
Reach Compliance Code	unknow
Body/casing type	SOCKET
Connector type	CIRCULAR DIN CONNECTOR
Contact point gender	MALE
DIN compliance	YES
Electromagnetic interference shielding	NO
IEC compliance	NO
MIL compliance	NO
Installation method	RIGHT ANGLE
Installation type	CABLE
Options	GENERAL PURPOSE
Total number of contacts	20

Preview

Download Datasheet

View All

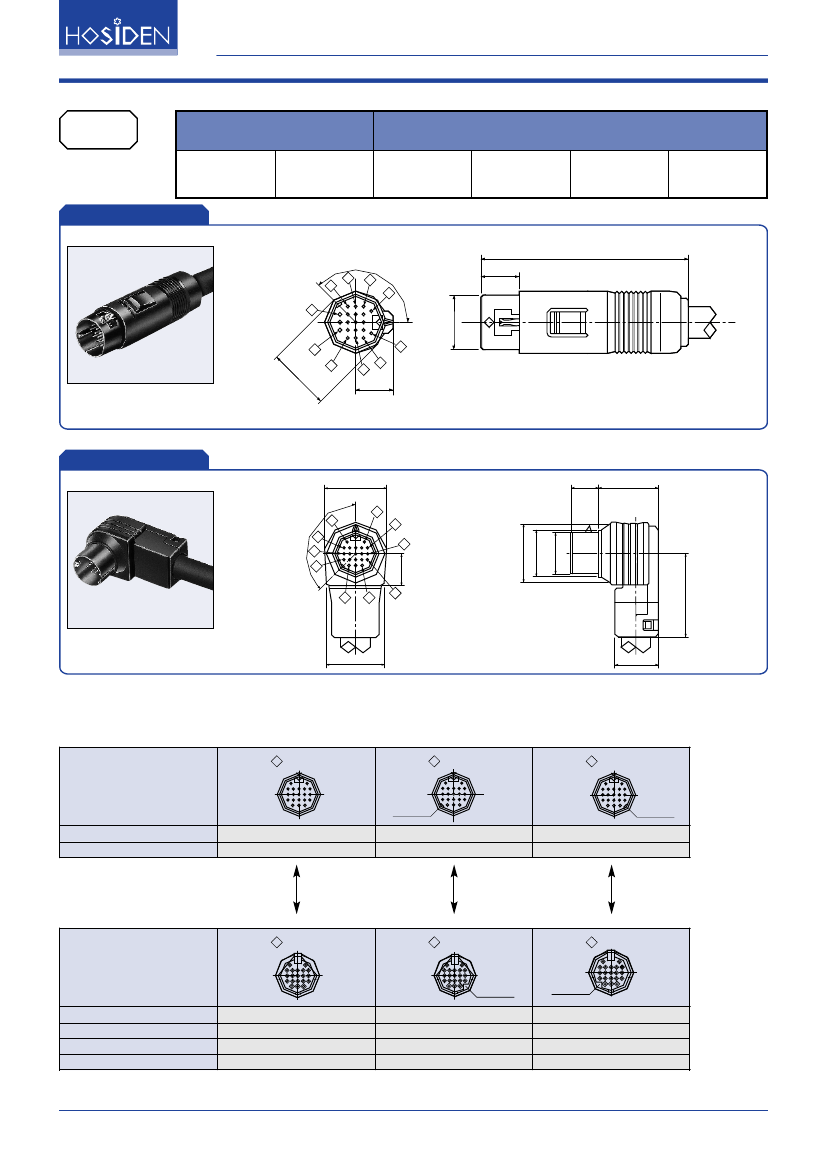

丸½【20P】ワンタッチロックタイプ

Circular

【

20P

】

Quick Locking Type

Unit:mm

プラグ品番

Plug Model No.

TCP5771

TCP5772

TCP5773

TCP5761

TCP5762

TCP5763

TCS5751 (P.10)

TCS5752 (P.10)

TCS5753 (P.10)

適合レセプタクル品番

Mate Receptacle Model No.

TCS5771 (P.10)

TCS5772 (P.10)

TCS5773 (P.10)

TCS5781 (P.10)

TCS5782 (P.10)

TCS5783 (P.10)

TCS5761 (P.11)

TCS5762 (P.11)

TCS5763 (P.11)

20Pin

TCS5003-01-4151

TCP5772

組立式ストレートプラグ／Assembly

Type Straight Plug

53

9.79.7

PUSH OUT

8

3

13

135

°

18

20

1

4

ax

19

9

14

9.4

TCP5762

組立式ライトアングルプラグ／Assembly

Type Right Angle Plug

φ20

19

φ1

4

φ1

4

135

°

Mo e

dl

It is possible a pulling cord drection with a locking position to provide

4

3

1

T S 0 30 -0 1

C 5 0 -14 5

T S 0 30 -1 1

C 5 0 -14 5

11

8

φ20

φ16

φ14

Max

※ロック½½に対するコード引き出し方向は4 °

5間隔にて設定できます。

(

at intervals of 45 degrees.)

19.5

14.3

½品½系一覧表

(20P Connectors Cross Reference Table)

プラグ品番 /

Plug Model No.

誤挿入防止キー½½

Faulty Insertion

Prevention Key Position

Straight Plug

Right Angle Plug

A Position

B Position

C Position

Key

Position

TCP5771-010100

TCP5761-010100

TCP5772-010100

TCP5762-010100

Key

Position

TCP5773-010100

TCP5763-010100

適合½ケット品番

Mate Socket Model No.

誤挿入防止キー½½

Faulty Insertion

Prevention Key Position

Right Angle Socket

In-Line Socket

A Position

B Position

Key

Position

TCS5753-014151（P.11

）

TCS5773-014151（P.11

）

TCS5783-014151（P.11

）

TCS5763-010100（P.12

）

C Position

Key

Position

TCS5751-014151（P.11

）

TCS5771-014151（P.11

）

TCS5781-014151（P.11

）

TCS5761-010100（P.12

）

TCS5752-014151（P.11

）

TCS5772-014151（P.11

）

TCS5782-014151（P.11

）

TCS5762-010100（P.12

）

28.5

φ

16

M

.2

9.25

20

18

13

14

9

TCS5783-014151(P.11) Related Products

	TCS5783-014151(P.11)	TCS5763-010100(P.12)	TCP5763-010100	TCP5761-010100	TCP5762-010100	TCS5751-014151(P.11)
Description	Circular DIN Connector, 20 Contact(s), Male, Cable Mount, Socket	Circular DIN Connector, 20 Contact(s), Male, Cable Mount, Crimp Terminal, Socket	Circular DIN Connector, 20 Contact(s), Male, Cable Mount, Crimp Terminal, Plug	Circular DIN Connector, 20 Contact(s), Male, Cable Mount, Crimp Terminal, Plug	Circular DIN Connector, 20 Contact(s), Male, Cable Mount, Crimp Terminal, Plug	Circular DIN Connector, 20 Contact(s), Male, Cable Mount, Socket
Maker	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation	Hosiden Corporation
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
Body/casing type	SOCKET	SOCKET	PLUG	PLUG	PLUG	SOCKET
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES	YES
Electromagnetic interference shielding	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Total number of contacts	20	20	20	20	20	20
Installation method	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Termination type	-	CRIMP	CRIMP	CRIMP	CRIMP	-
Base Number Matches	-	1	1	1	1	-
