174163205030

Description
IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder
CategoryThe connector    socket
File Size213KB,2 Pages
ManufacturerW+P Products GmbH
Environmental Compliance
Download Datasheet Parametric View All

174163205030 Overview

IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

174163205030 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerW+P Products GmbH
Reach Compliance Codecompliant
ECCN codeEAR99
subject depth0.315 inch
body length0.8 inch
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN
Contact materialBE-CU
Contact styleRND PIN-SKT
current rating1 A
Device slot typeIC SOCKET
Type of equipment usedDIP16
Dielectric withstand voltage1400VAC V
Shell materialTHERMOPLASTIC
Insulation resistance10000000000 Ω
Manufacturer's serial number174
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Number of contacts16
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
PCB contact row spacing0.3 mm
Terminal pitch2.54 mm
Termination typeSOLDER
174/187

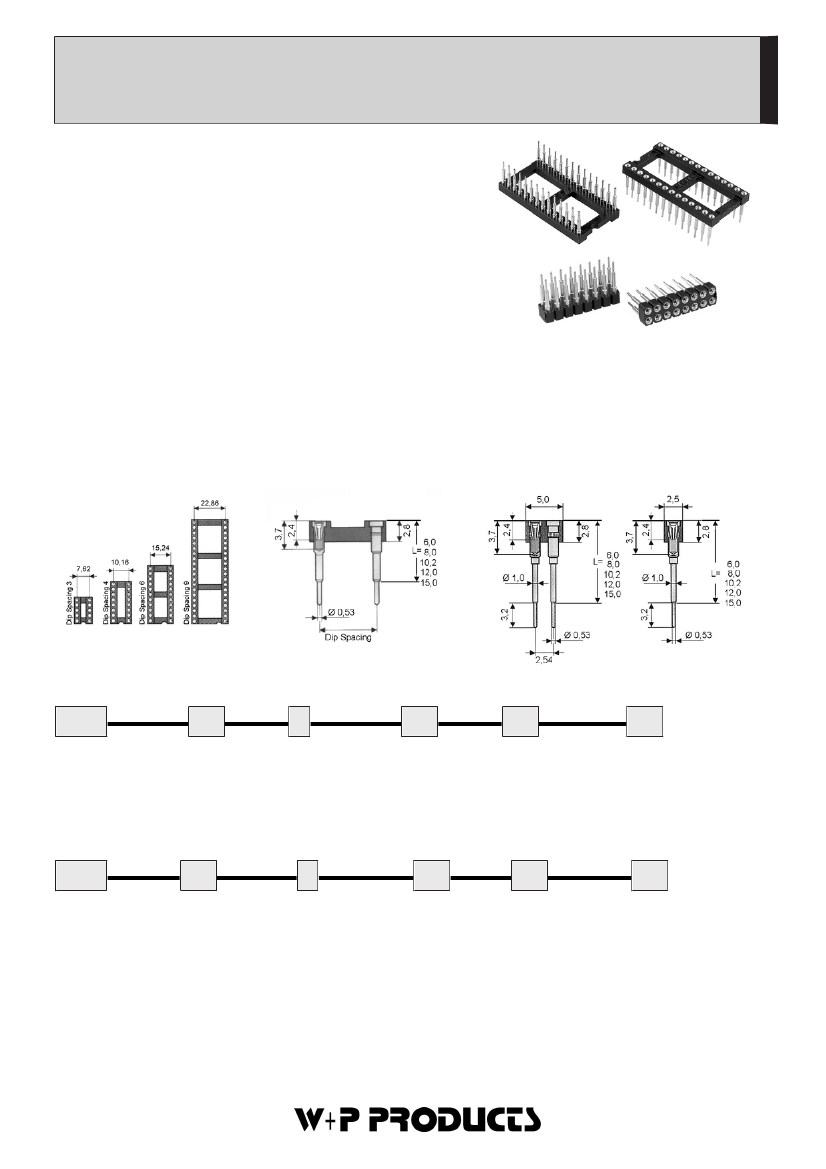

IC-Fassung / IC-Leiste - Bauhöhe 6mm ... 15mm
IC Sockets / IC-Strips - Height 6,0mm ... 15,0mm
Technische Daten /Technical
Data
Gehäuse/Abdeckung/Hebel
Thermoplastischer Kunststoff, nach UL94 V-0
Case/Cover/Actuator
Thermoplastic, rated UL94 V-0
Kontaktmaterial
Hülse: Messing gedreht
Feder: 4-Lamellen-Clip, Beryllium-Kupfer
Contact Material
Sleeve: screw machined brass
Clip: 4 Finger-Clip, Beryllium-Copper
Kontaktoberfläche
Lt. Oberflächenoptionen, über Ni (2 ... 3µm)
Contact Surface
Acc. to options (see below), over Ni (2 ... 3µm)
Lötbarkeit
IEC512-12A
Solderability
IEC512-12A
Durchgangswiderstand
< 10mΩ
Contact Resistance
< 10mΩ
10
Isolationswiderstand
> 10
10
Insulation Resistance
> 10
Spannungsfestigkeit
1000V
RMS
Test Voltage
1000V
RMS
Betriebsspannung
100V
RMS
/ 150V
DC
Operating Voltage
100V
RMS
/ 150V
DC
Nennstrom
1A
Current Rating
1A
Temperaturbereich
-25°C ... +85°C
Temperature Range
-25°C ... +85°C
Verarbeitung
Reflow-Lötverfahren; weitere Informationen in Kapitel T
Processing
Reflow-soldering, detailed information in ch. T
Für Rundstifte Ø 0,4 ... 0,56mm
oder Vierkantstift 0,25 x 0,45mm.
For round pin Ø 0,4 ... 0,56mm
or square pin 0,25 x 0,45mm.
Series
Contacts
*
DIP-Spacing
*
Terminal
*
Sleeve Plating
Clip Plating
*
174
174
IC-Fassung
IC-Socket
24
06/08/10/12/14/16/
18/ 20/22/24/28
20/22/24/28/32
10/24/28/32/36/
40/42/48/50/52
50/52/64
3
3
7,62mm
4
10,16mm
6
15,24mm
9
22,86mm
10
10
L=6,0mm
20
L=8,0mm
30
L=10,2mm
40
L=12,0mm
50
L=15,0mm
50
50
Verzinnt
Tin plated
30
10
0,25µm Gold
0,25µm gold plated
30
Vergoldet 0,75µm
0,75µm gold plated
Series
Contacts
*
Rows
*
Terminal
*
Sleeve Plating
Clip Plating
187
187
IC-Leiste
IC-Strip
24
01-64
Einreihig
Single row
02-64
Zweireihig
Double row
2
1
Einreihig
Single row
2
Zweireihig
Double row
10
10
L=6,0mm
20
L=8,0mm
30
L=10,2mm
40
L=12,0mm
50
L=15,0mm
50
50
Verzinnt
Tin plated
10
10
Vergoldet 0,25µm
0,25µm gold plated
(
*
Bestellbeispiel - Bitte durch Ihre
Spezifikationen ersetzen.
*
Order example - To be replaced by your
specifications.)
TEL.: +49 5223 98507-0
FAX.: +49 5223 98507-50
E-MAIL: sales@wppro.com
INTERNET: www.wppro.com
1
