3800912020 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3800912020

3800912020: DescriptionD Type Connector, 9+9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size215KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric View All

3800912020 Overview

D Type Connector, 9+9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

3800912020 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
ECCN code	EAR99
body width	1.394 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VDC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	380
Plug contact pitch	0.109 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2+2
Number of rows loaded	2+2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.11 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

380

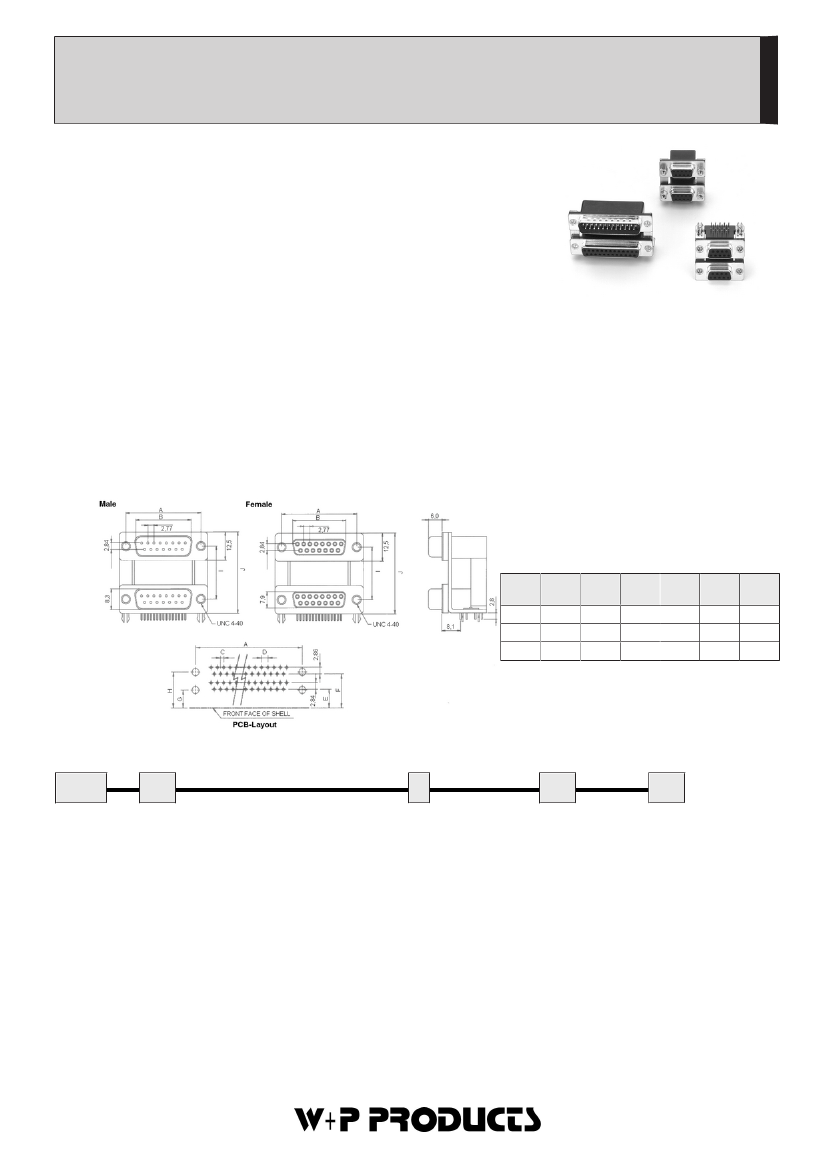

D-SUB-Steckverbinder - Dual Port Version

D-SUB-Connector - Dual Port Version

Technische Daten /

Technical Data

Gehäuse

Stahl vernickelt, verzinnt

Shell

Steel, tin coated over nickel

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Kupferlegierung

Contact Material

Copper alloy

Kontaktoberfläche

Gold über Nickel

Contact Surface

Gold plated over nickel

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 10mΩ

Contact Resistance

< 10mΩ

Isolationswiderstand

> 10

Ω

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

1000V

Test Voltage

1000V

Nennstrom

Current Rating

Temperaturbereich

-55°C ... +125°C

Temperature Range

-55°C ... +125°C

Verarbeitung

Wellenlötverfahren; weitere Informationen in Kapitel T

Processing

Wave soldering, detailed information in ch. T

Güteklasse

GK 3, min. 50 Steckzyklen, andere GK auf Anfrage

Quality Class

Quality class 3, min. 50 cycles, more quality options by

request

Port

Code

Dist. I

22,86

19,05

15,88

8,08

14,73

7,75

15,62

35,41

31,60

28,43

Series

Contacts

Type

Port Distance

Mounting

380

I=22,86mm

I=19,05mm

I=15,88mm

Durchgangsloch

Through hole

Rastclip

Board lock

Type 09/09: A=24,99mm; B=30,89mm; C=1,385mm;

Stift / Stift

D=2,77mm

Male / male

Type 25/25: A=47,04mm; B=53,09mm;

Stift / Buchse

C=1,385mm; D=2,77mm

Male / female

Buchse / Stift

Female / male

Buchse / Buchse

Female / female

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com
