5MP2
SERIES
Metallized
Polypropylene
Metallized Polypropylene
Switching power supply capacitors that require snubber and high current
applications. Voltage: 400 to 2000VDC: Capacitance as high as l0.0µf; ESR as
low as 0.005OHMS; ESL as low as 18nH; RMS current to 48.4amps; UL94-VO
flame retardant; three configurations; with axial leads or tab terminations.
FEATURES
-
Low loss polypropylene
dielectric
-
High Power Rugged
construction
-
Tested for high peak currents
-
Smaller size
-
UL 94-VO flame retardant
-
Low inductance
-
High RMS capability
-
Low impedance and ESR

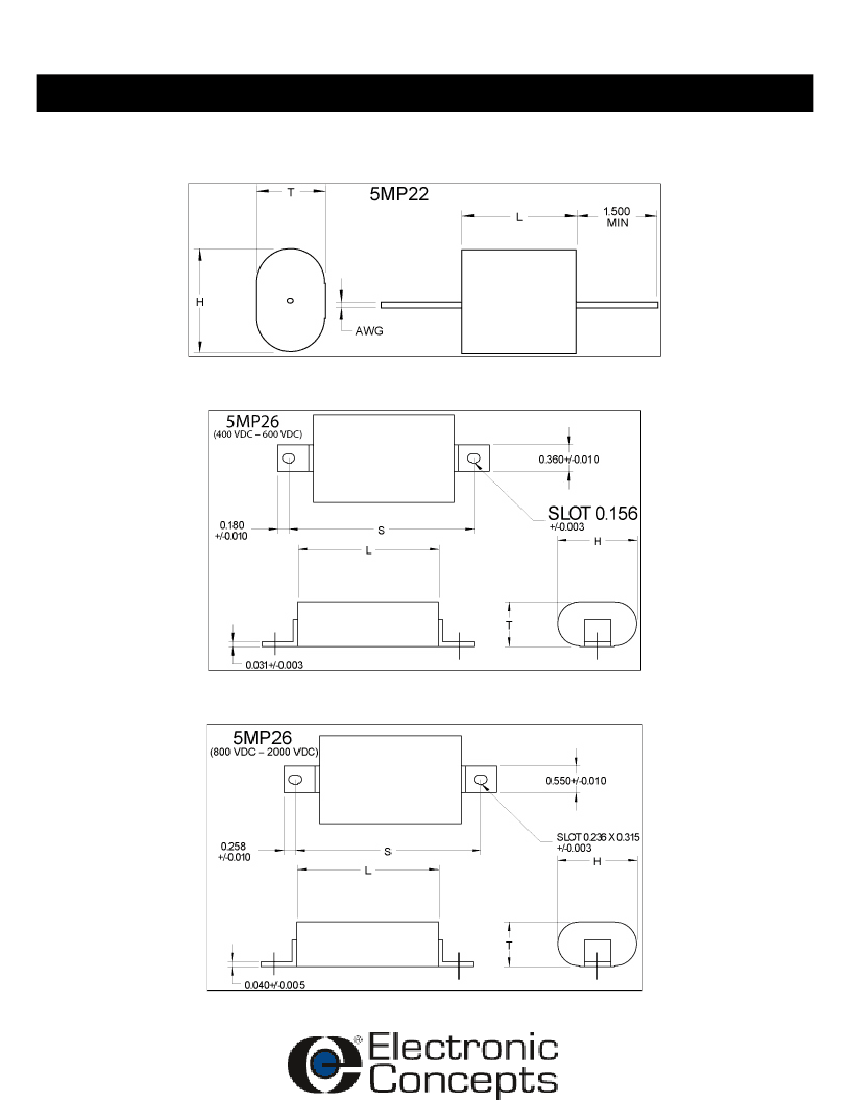

STANDARD CONFIGURATION
-
5MP22: axial leads
-
5MP26: radial tabs/low profile
-
5MP27: radial tabs/high profile
Specification Summary
Capacitance Range
0.47µF to 10.0µF
Capacitance Tolerance
Standard tolerance is ±10%. Tolerances of ±5%, ±2% & ±1%
are also available.
Operating Temperature Range
-55°C to +105°C
Enclosure/ Construction
Extended Foil
Voltage Rating
VDC at 400VDC to 2000VDC VAC at 230VAC to 460VAC
Process and inspection data are maintained on file and available
on special request.
Environmental
Parameter
Vibration
Immersion
Shock
Humidity
Thermal Shock
Life
Method
204
104
213
106
107
108
Condition
D
B
I
-
A
F
Quality Control
Capacitors are tested 100% for:
o Capacitance tolerance
o Dissipation Factor
o Dielectric withstanding voltage
o Insulation Resistance
o Equivalent Series Resistance (ESR)
Reference MIL-STD-202
Characteristics
Insulation Resistance
Temperature(°C)
25
Megaohms x
50,000
Microfarads
85
5,000
105
150
Capacitance Change
Temperature(°C)
-55
Percentage
1.4
Change(Typical)
25
0
85
-2.5
105
-3.5
Insulation Resistance
Capacitance Change
Dissipation Factor
When measured at 1kHz, the dissipation factor will not exceed
0.1%.
Dielectric Strength
Capacitors withstand a DC potential of 1.5 x rated
voltage for one (1) minute without damage or
breakdown. Test Voltage is applied and discharged
through a minimum resistance of 100 OHMS per volt.
ELECTRICAL DATA
EC Part Number
5MP2_J474K
5MP2_J684K
5MP2_J105K
5MP2_J155K
5MP2_J205K
5MP2_J225K
5MP2_J335K
5MP2_J475K
5MP2_J685K
5MP2_J106K
5MP2_K474K
5MP2_K684K
5MP2_K105K
5MP2_K155K
5MP2_K205K
5MP2_K225K
5MP2_K335K
5MP2_K475K
5MP2_N305K
5MP2_N405K
5MP2_K505K
5MP2_K605K
5MP2_K705K
5MP2_K805K
5MP2_BN105K
5MP2_BN155K
5MP2_BN205K
5MP2_BN255K
5MP2_BN305K
5MP2_BN335K
5MP2_BT105K
5MP2_BT135K
5MP2_BT155K
5MP2_BT185K
5MP2_P105K
5MP2_P125K
CAP
µf
0.47
0.68
1.00
1.50
2.00
2.20
3.30
4.70
6.80
10.00
0.47
0.68
1.00
1.50
2.00
2.20
3.30
4.70
3.00
4.00
5.00
6.00
7.00
8.00
1.00
1.50
2.00
2.50
3.00
3.30
1.00
1.30
1.50
1.80
1.00
1.20
VDC
400
400
400
400
400
400
400
400
400
400
600
600
600
600
600
600
600
600
800
800
800
800
800
800
1200
1200
1200
1200
1200
1200
1600
1600
1600
1600
2000
2000
VAC
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
230
460
460
460
460
460
460
460
460
460
460
460
460
ESR
100kHz
OHMS
MAX
0.016
0.015
0.010
0.007
0.006
0.006
0.005
0.006
0.007
0.005
0.011
0.008
0.006
0.005
0.005
0.010
0.007
0.006
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
0.005
MAXIMUM RIPPLE
CURRENT IN AMPS 20kHz I PEAK dv/dt (TYP) (TYP)
ESL kHz F
AMPS
V/µs
res
TEMPERATURES
nH
25°C
50°C
85°C 105°C
5.3
4.4
2.7
0.7
79
168
18
1710
6.2
5.2
3.2
0.8
97
143
22
1312
8.1
6.8
4.2
1.0
143
143
22
1082
10.8
8.9
5.5
1.3
214
143
22
884
13.1
10.9
6.7
1.6
285
143
22
765
14.0
11.6
7.1
1.7
314
143
22
730
16.5
13.7
8.4
2.0
471
143
22
596
17.2
14.3
8.8
2.1
421
89
35
392
18.0
15.0
9.2
2.2
443
65
50
274
23.2
19.3
11.9
2.8
652
65
50
226
7.9
6.6
4.1
1.0
118
251
18
1710
10.3
8.6
5.3
1.3
171
251
18
1422
13.5
11.2
6.9
1.6
251
251
18
1173
16.0
13.3
8.2
1.9
321
214
22
884
17.5
14.6
9.0
2.1
428
214
22
765
13.5
11.2
6.9
1.6
249
113
42
522
17.9
14.9
9.1
2.2
373
113
42
426
22.7
18.9
11.6
2.8
532
113
42
357
41.9
34.9
21.4
5.1
856
285
22
625
42.6
35.5
21.8
5.2
880
220
28
473
42.7
35.6
21.8
5.2
895
179
35
379
42.7
35.5
21.8
5.2
905
151
42
316
42.5
35.3
21.7
5.2
913
130
50
270
42.3
35.2
21.6
5.1
918
115
57
236
37.5
31.2
19.2
4.6
1076
1076
20
1120
42.3
35.2
21.6
5.1
1143
762
28
782
45.8
38.1
23.4
5.6
1219
610
34
609
47.9
39.9
24.5
5.8
1270
508
41
498
48.4
40.3
24.7
5.9
1276
425
49
416
47.1
39.2
24.1
5.7
1232
373
56
371
34.6
28.8
17.7
4.2
813
813
34
862
37.8
31.4
19.3
4.6
881
677
41
691
37.3
31.0
19.0
4.5
851
567
49
588
39.1
32.5
20.0
4.8
896
498
56
502
33.7
28.0
17.2
4.1
709
709
49
721
35.5
29.5
18.1
4.3
746
622
56
615
Note:
RMS current ratings based on maximum capability of the capacitor element. For capacitor style with leads, the RMS current rating is
limited by the lead wire as follows: #16: 19 AMPS; #18: 16 AMPS; #20: 12 AMPS.
