BD034-64-B-166-0-0630-N-D datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BD034-64-B-166-0-0630-N-D

Preview

BD034-64-B-166-0-0630-N-D: DescriptionBoard Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD034-64-B-166-0-0630-N-D Overview

Board Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,

BD034-64-B-166-0-0630-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.222 inch
subject depth	0.732 inch
body length	1.726 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (100)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
maximum insertion force	1.1954 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	BD034
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9116 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	64
Evacuation force-minimum value	.1946 N

Preview

Download Datasheet

View All

5

3

4

1

2

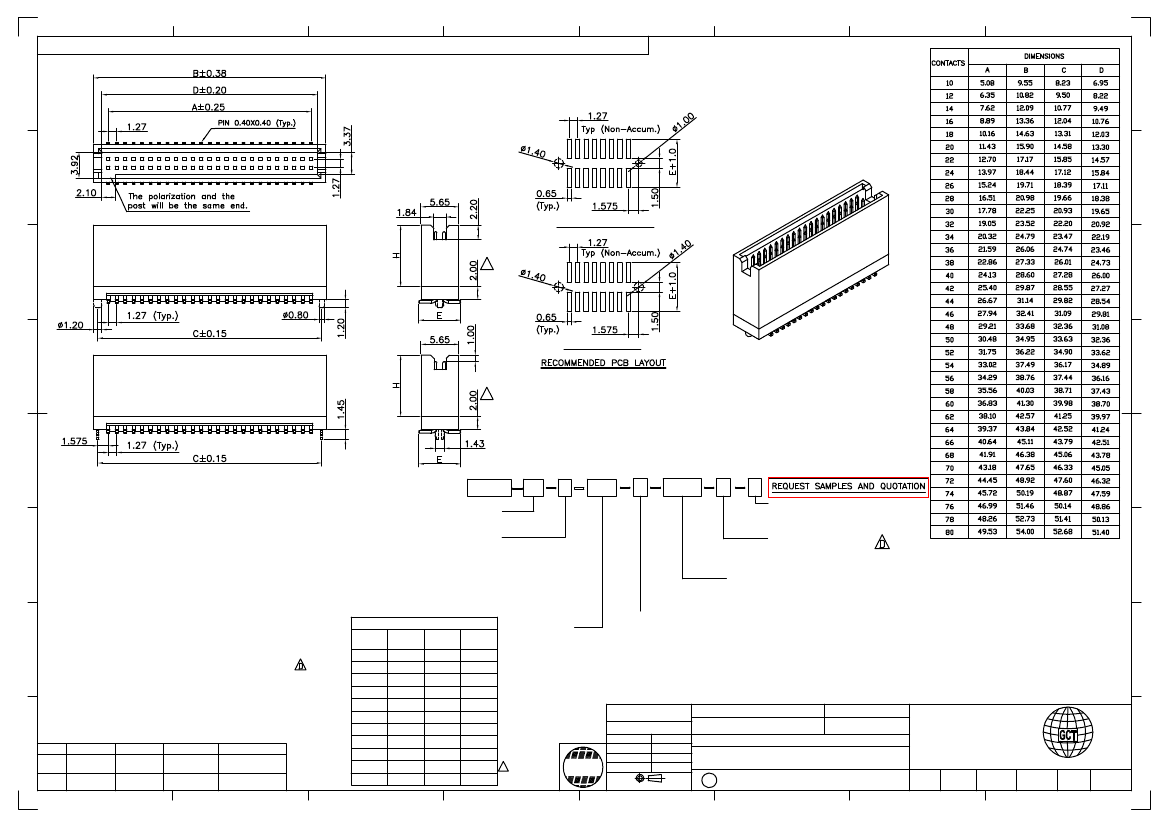

Global Connector Technology Ltd. - BD034: 1.27mm PITCH SHROUDED PIN HEADER, DUAL ROW, SURFACE MOUNT, VERTICAL

A

6

7

8

A

B

LOCATING PEG OPTION

C

KEY LOCK OPTION

D

C

D

E

Ordering Grid

E

BD034

No. of Contacts

10 to 80

XX

X

XXX

X

XXXX

N

X

Packing Options

D = Tube (Standard)

E = Tube with Cap

Insulator Material

N = Nylon 6T (Standard)

Dimension E (1/100mm)

(Footprint Width)

Standard - 6.30mm = 0630

or specify Dimension E

e.g. 2.50mm = 0250

Tol +/- 0.2mm

F

SPECIFICATIONS

规格

:

CURRENT RATING

电流额定值

: 1 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

DIELECTRIC WITHSTANDING

耐电压

: AC 300 V

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

SOLDERING PROCESS

可焊性

:

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BD065

By

DETAIL

REV

DATE

AE

DRAWING

RELEASE

A

03/04/08

PN

TABLE A

AMENDED

B

04/06/09

PN

AE

DIMENSION

INSULATOR INFO

AMMENDED

AMENDMENTS

C

D

06/07/09

27/07/09

Contact Plating

A = Gold Flash All Over

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

TABLE A

Order

Code

070

074

076

082

083

084

087

090

092

095

102

Insulator

Height

7.00mm

7.40mm

7.60mm

8.20mm

8.30mm

8.40mm

8.70mm

9.00mm

9.20mm

9.50mm

10.20mm

Order

Code

115

121

122

132

136

153

156

166

169

173

Insulator

Height

11.50mm

12.10mm

12.20mm

13.20mm

13.60mm

15.30mm

15.60mm

16.60mm

16.90mm

17.30mm

F

G

Insulator Height 'H'

Standard - 9.20mm = 092

Please see Table A

for all options

Locating Peg

0 = No Peg/No key Lock

1 = With Peg

2 = With Key Lock

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X. ± 0.30

X.X ± 0.25

X.XX ± 0.15

X.XXX ± 0.10

.X°±5°

.X°±3°

.XX°±2°

.XXX°±1°

BD034

Description:-

03 APR 08

H

B

RoHS

4

1.27mm PITCH SHROUDED PIN HEADER,

DUAL ROW, SURFACE MOUNT, VERTICAL

Global

Connector

Technology

www.globalconnectortechnology.com

Scale

NTS

H

Third Angle Projection

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

D

Material

See Note

Drawn by

AE

E & OE

Sheet No.

1/1

1

2

3

5

6

7

8
