BF170-012-G-0400-0240-0760-L-G datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BF170-012-G-0400-0240-0760-L-G

Preview

BF170-012-G-0400-0240-0760-L-G: DescriptionBoard Connector, 12 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size124KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric Compare View All

BF170-012-G-0400-0240-0760-L-G Overview

Board Connector, 12 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,

BF170-012-G-0400-0240-0760-L-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.236 inch
subject depth	0.299 inch
body length	0.315 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	BF170
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	10u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

5

3

1

2

4

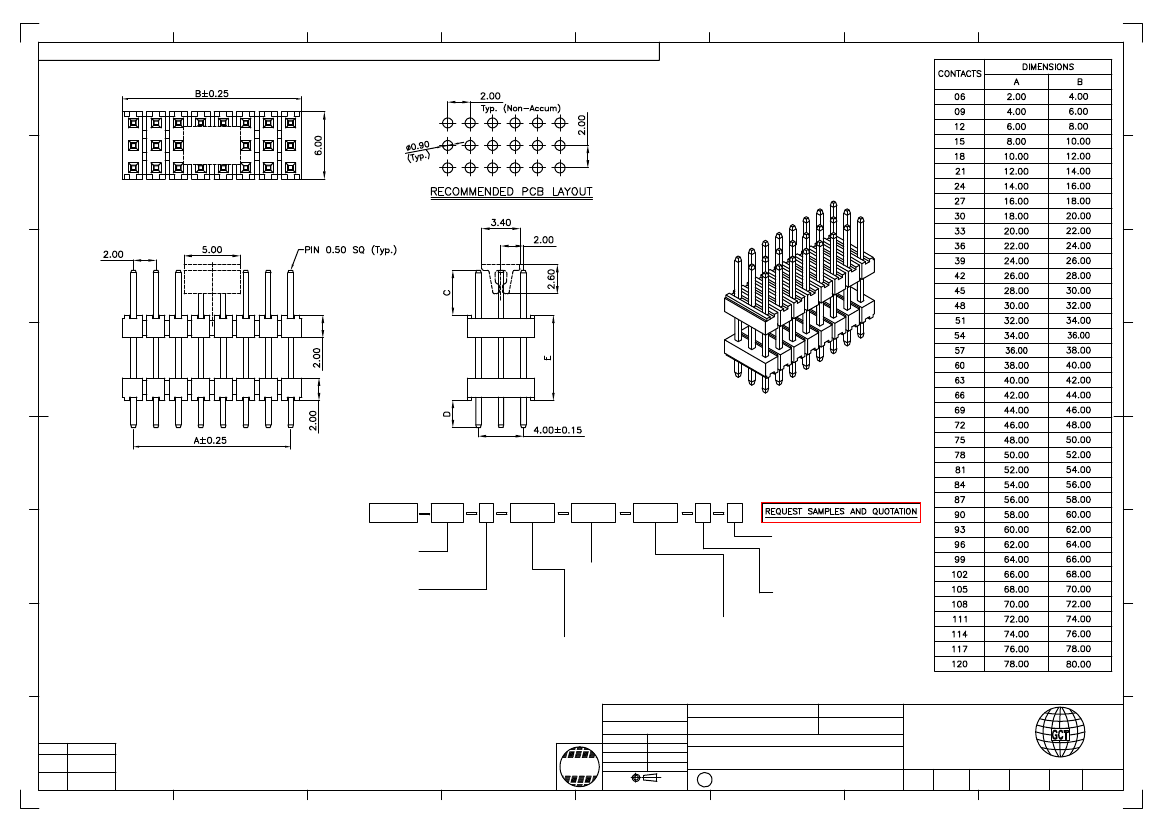

Global Connector Technology Ltd. - 2.00mm PITCH ELEVATED PIN HEADER, TRIPLE ROW, THROUGH HOLE, VERTICAL

A

6

7

8

A

B

C

D

E

Ordering Grid

BF170

F

No. of Contacts

06 to 120

XXX

X

XXXX

L

X

Packing

G = Plastic Box (Standard)

D = Tube

E = Tube with Cap

F

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 2 AMP

Contact Plating

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

A = Gold Flash All Over

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

B = Selective Gold Flash Contact Area/

DIELECTRIC WITHSTANDING

耐电压

: AC 500 V

Tin On Tail

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

C = Tin All Over

CONTACT MATERIAL

端子物料

: COPPER ALLOY

G = 10µ" Gold Contact Area/Tin On Tail

G

INSULATOR MATERIAL

绝缘½物料

:

I = 30µ" Gold Contact Area/Tin On Tail

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

Standard = Gold Flash All Over

SOLDERING PROCESS

可焊性

:

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BF155

BF160

H

By

RD

DETAIL

REV

DATE

DRAWING

RELEASE

A

08/4/07

Dimension D (1/100mm)

(Tail length)

Standard - 2.40mm = 0240

Insulator Material

Or specify Dimension D

L = LCP (Standard)

e.g. 2.50mm = 0250

Dimension E (1/100mm)

TOL.: ±0.2mm

(Stacking Height)

Dimension C (1/100mm)

Standard - 7.60mm = 0760

(Post Height)

Or specify Dimension E

Standard - 4.00mm = 0400

e.g. 2.50mm = 0250

Or specify Dimension C

TOL.: ±0.2mm

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Tolerances

(Except as noted)

G

Part Number:-

Date:-

Dimensions in mm

X. ± 0.30

X.X ± 0.25

X.XX ± 0.15

X.XXX ± 0.10

X.°±5°

.X°±3°

.XX°±2°

.XXX°±1°

BF170

Description:-

08 APR 07

RoHS

2

3

4

2.00mm PITCH ELEVATED PIN HEADER, TRIPLE

ROW, THROUGH HOLE, VERTICAL

Global

Connector

Technology

Scale

NTS

H

Sheet No.

E & OE

1/1

www.globalconnectortechnology.com

Material

See Note

1

Third Angle Projection

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

A

Drawn by

RD

5

6

7

8

BF170-012-G-0400-0240-0760-L-G Related Products

	BF170-012-G-0400-0240-0760-L-G	BF170-006-A-0400-0240-0760-L-G	BF170-018-G-0400-0240-0760-L-D	BF170-015-G-0400-0240-0760-L-G	BF170-006-G-0400-0240-0760-L-D	BF170-018-G-0400-0240-0760-L-G
Description	Board Connector, 12 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,	Board Connector, 6 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,	Board Connector, 18 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,	Board Connector, 15 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,	Board Connector, 6 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,	Board Connector, 18 Contact(s), 3 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
subject depth	0.299 inch	0.299 inch	0.299 inch	0.299 inch	0.299 inch	0.299 inch
body length	0.315 inch	0.157 inch	0.472 inch	0.394 inch	0.157 inch	0.472 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3	e4	e3	e3	e3	e3
Manufacturer's serial number	BF170	BF170	BF170	BF170	BF170	BF170
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	3	3	3	3	3	3
Number of rows loaded	3	3	3	3	3	3
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	10u inch	FLASH inch	10u inch	10u inch	10u inch	10u inch
Rated current (signal)	2 A	2 A	2 A	2 A	2 A	2 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	6	18	15	6	18
Base Number Matches	-	1	1	1	1	1
