13400FL211010-02 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 13400FL211010-02

13400FL211010-02: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size83KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

13400FL211010-02 Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator

13400FL211010-02 Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.136 inch
subject depth	0.19 inch
body length	0.27 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	134
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

Serie 134

Technische Daten:

Isolierkörper

Farbe

Kontaktmaterial

Nennspannung

Nennstrom

Temperaturbereich

Lötwärmebeständigkeit

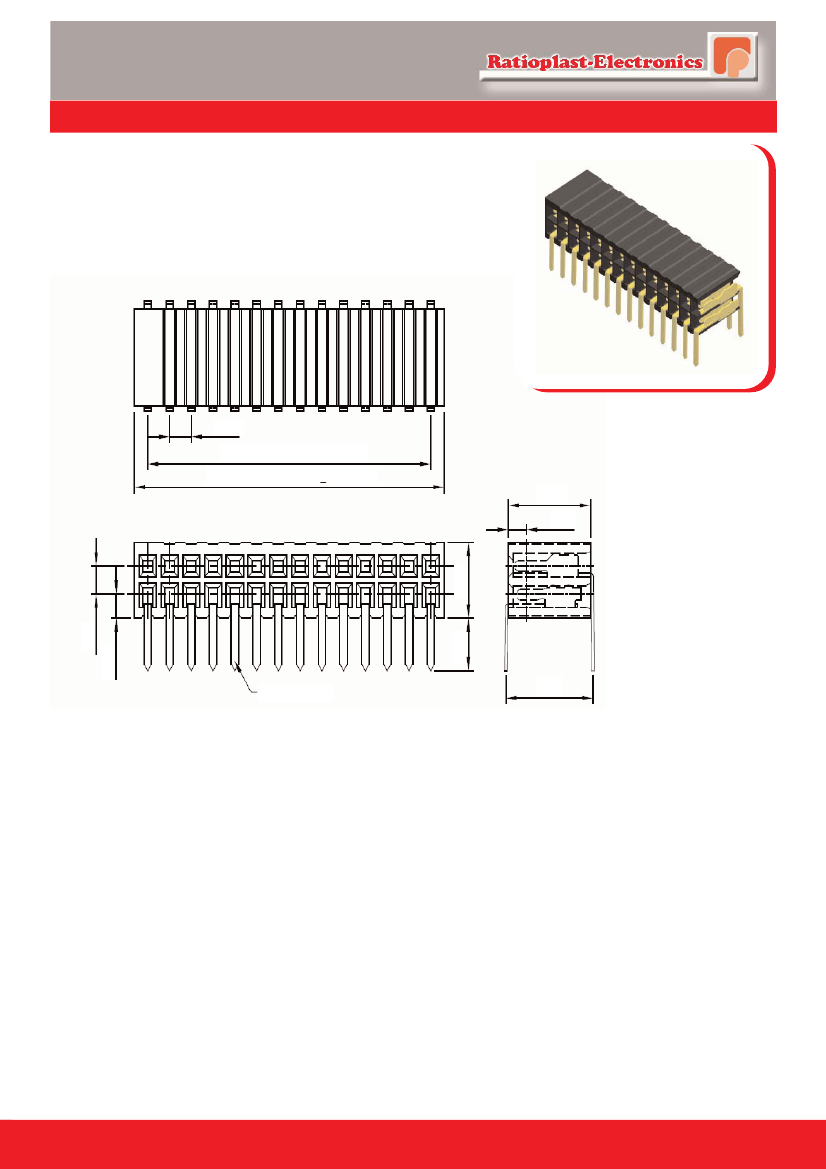

BUCHSENLEISTE

FEMALE HEADER

RASTER1,27mm mit Vierkantstift 0,4mm

PITCH 1,27mm with square contact 0,4mm

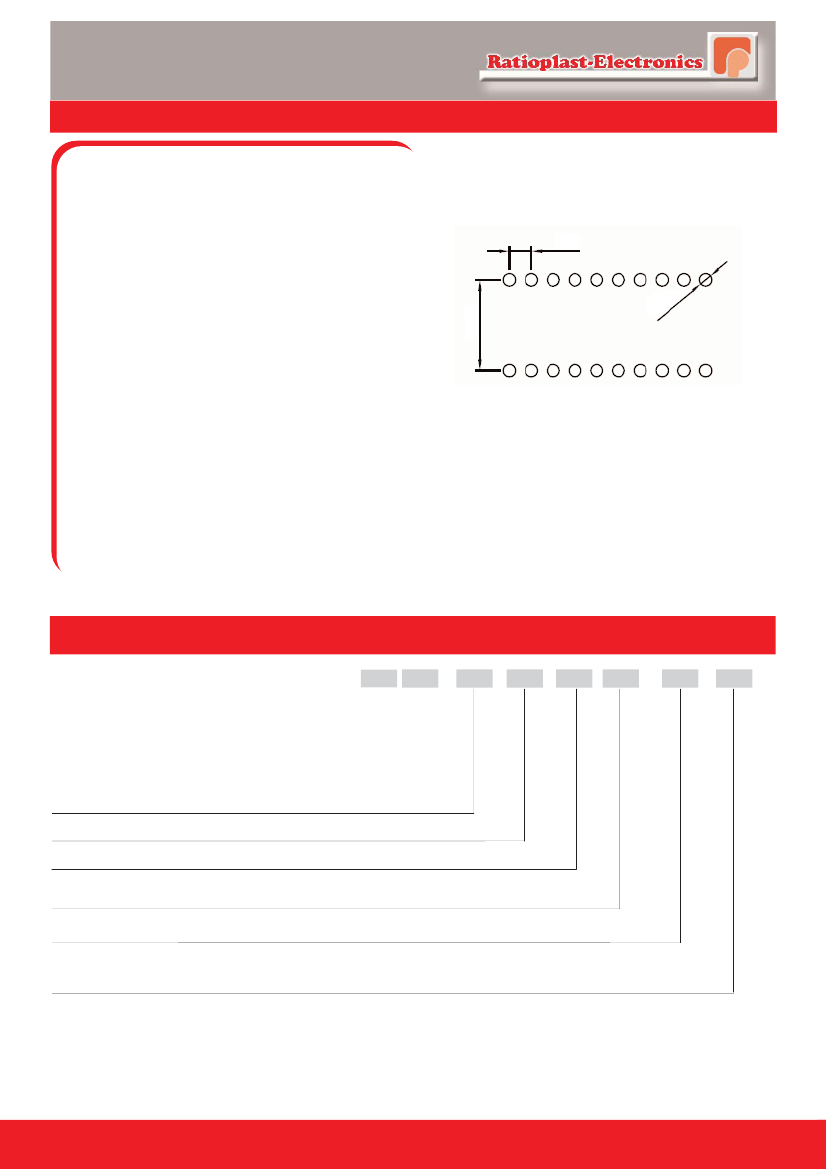

Empfohlenes Leiterplatten-Layout

(Toleranz +0,05)

Recommended P.C.B Layout

(Tolerance +0,05)

Nylon 6T

Hochtemperaturfest, UL94-V0

Schwarz

Messing

500 V AC (1 min.)

- 40°C ... +105°C

235°C (30-60 sek.)

max. 260°C (5 sek.)

5,08

1,27

Weitere technische Informationen zu den Produkten erhalten Sie auf

Anfrage

Technical Data

Insulator

Colour

Contact Material

Current Voltage

Current Rating

Temperature Range

Resistance to soldering

More technical Information on request

Nylon 6T

High temperature, UL94-V0

Black

Brass

250 V AC

- 40°C ... +105°C

235°C (30-60 sec.)

max. 260°C (5 sec.)

BESTELLBEISPIEL

HOW TO ORDER

BITTE ERSETZEN SIE `X` DURCH UNTEN AUFGEFÜHRTEN CODE

PLEASE REPLACE `X`WITH CODING LISTED BELOW

134 00

XXX - XX

Veredelung - Plating

FL = Flash Vergoldet - Flash gold plated(Au) (Standard)

Andere Veredelungen auf Anfrage - Other plating on request

2 = 2- reihig - 2- row

1 = Liegend - Lying

1 = 1,27 mm Raster - Pitch

9 = Sonderraster - Other pitch

Polzahl - Number of contacts (006... 100)

01= Verpackt in Stangen ohne - Packed in tubes (Standard)

02 = Verpackt auf Rolle (auf Anfrage) - Reel packing (on request)

Seite: 84

Version 1 / 2011

www.ratioplast.com
