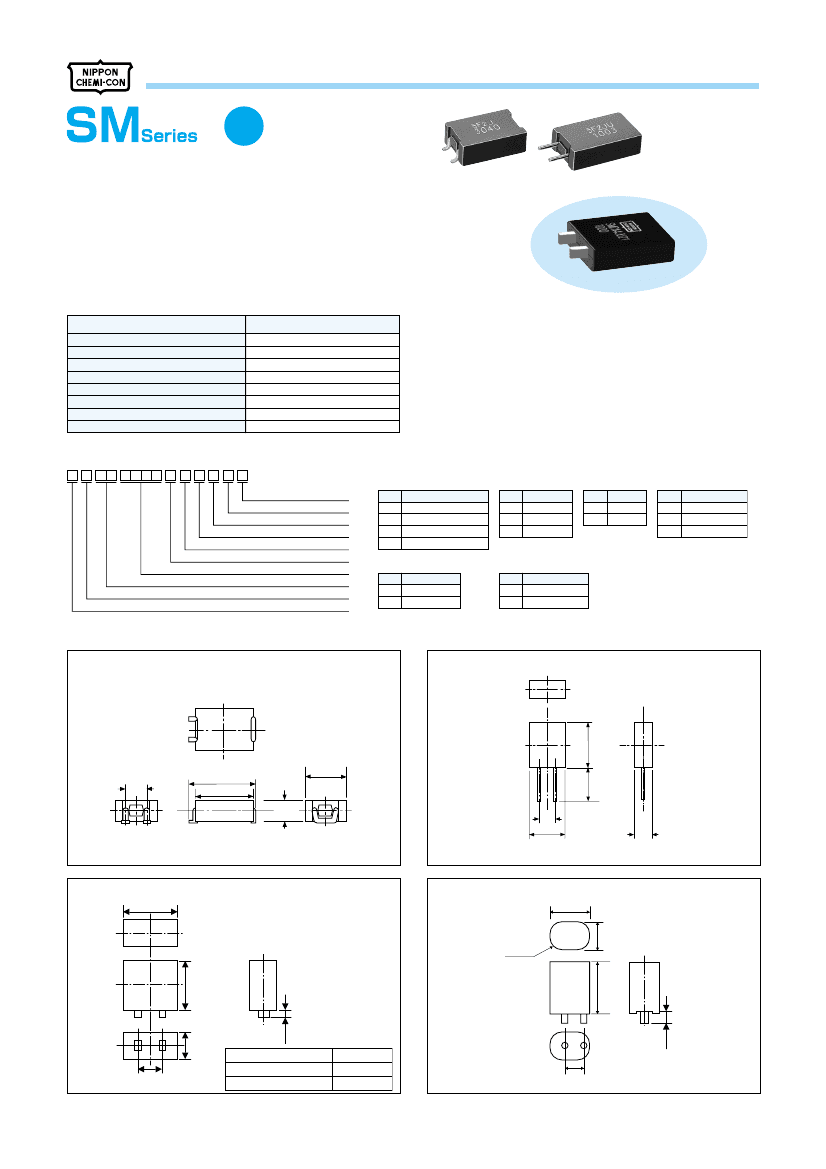

AMORPHOUS CHOKE COILS
Compliant
RoHS
?MAJOR
USES
@Choke
coils for DC-DC converter
@Output
choke coils for Switching Mode Power Supply
?FEATURES
@Minimum
device thickness of 6.8 mm with high D.C. rated current
@Remarkably
small of D.C. resistance in this type of device
@Use
of Fe-base amorphous for excellent operation stability at high temperature
@Preparation
of both SMD and SIP type
?GENERAL
SPECIFICATION
Items
Operating Temperature Range
Storage Temperature Range
Operating Humidity Range
Storage Humidity Range
Operating Frequency Range
*2
Increase in Temperature
*3
Insulating Type
Incombustibility
*4
*1
Rated value
-40 to 130C
-40 to 130C
20 to 95%RH
20 to 80%RH
20kHz to 500kHz
45 K or less
Type B (130C)
UL94V-0
*1 Temperature on the coil surface including the temperature rise
in installation. Never use the coil at a temperature exceeding the
rated temperature range.
*2 Recommended range. When infra-acoustic frequency component
is impressed, a beat sound sometimes occurs.
*3 The temperature rise on the coil surface at the rated d.c. current.
*4 Housing case material.
?PART
NUMBER DESIGNATIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
L E SM 5 F 2 J L 3 2 L 0 E
Solder control code6
Specifications control code5
Package Method4
Lead side3
Lead number2
Lead shape1
Core type
Series
Section code
Class code
1Lead
shape
Code
S
L
U
G
Lead shape
SMD type(Vertical)
SMD type(Horizontal)
SIP type(Vertical)
SIP type(Horizontal)
2Lead
number
Code Laad number
2
2
3
3
4
4
3Lead
side
Code Lead side
1 One Side
2 Two Side
4Package
Method
Code
T
L
N
Contents
Taping
Standard tray
Others
5Specifications
control code
Code Specifications
Standard
0
Custom
1
6Solder
control code
Code
0
E
Specifications
Not Pb free
Pb free
?STANDARD
DIMENSION DIAGRAM (mm)
SMD type : LESM5F2JL32L0E
SIP type : LESM5F2JU21L0E
5.8
22.0
19.0
7.4
13.0
6
5.8
13.5
6.8
Lead phase :
F1.2
SIP type : LESMCA4JU21L0E, LESMCA4HU21L0E
27.7
SIP type : LESMBA2HU21L0E
18.9
23.0
13.9
4-R5
25.9
26.5
4.5
14.0
12.9
Lead phase
LESMCA4JU21L0E
3B5
LESMCA4HU21L0E
F3.2
4.5
8.8
Lead phase :
F3.2
(1/2)
CAT. No. E1008K

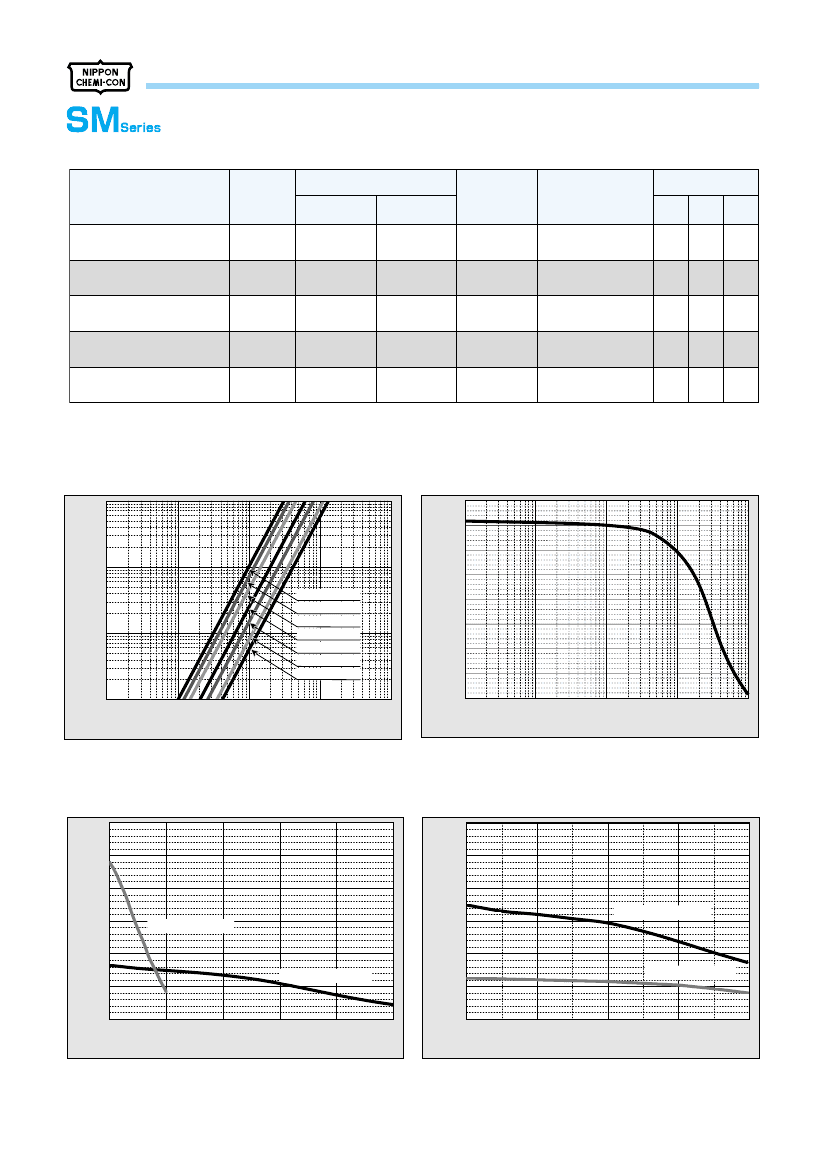

AMORPHOUS CHOKE COILS
?COIL
STANDARD SPECIFICATIONS
Coil Part No.
(Old Coil Part No.)
Rated
Current
A
Inductance
*1
(100kHz)
*2
0[A]
mH
Rating
mH
D.C.R.
mo
(max)
Mounting
Direction
Outside Dimensions
r
mm
w
mm
h
mm
LESM5F2JU21L0E
(SM5F2JU21PBF)
LESM5F2JL32L0E
(SM5F2JL32PBF)
LESMCA4HU21L0E
(SMCA4HU21ZPBF)
LESMBA2HU21L0E
(SMBA2HU21ZPBF)
LESMCA4JU21L0E
(SMCA4JU21PBF)
10
10
30
35
70
4.8
4.8
3.5
1.2
1.6
*2
2.6
2.6
2.2
0.9
0.9
*2
1.0
1.0
0.3
0.3
0.2
Vertical
Horizontal
Vertical
Vertical
Vertical
13.5
6.8 23.0
7.4
22.0 13.0
27.7 14.0 25.9
18.9 13.9 26.5
27.7 14.0 25.9
*2
*2
*1 The inductance at current 0[A] indicates the reference value.
*2 Inductance measurement condition : LESMCA4HU21L0E, LESMBA2HU21L0E : 200kHz
?CORE
LOSS CHARACTERISTICS
1000
?FREQUENCY
- INDUCTANCE CHARACTERISTICS
110
100
90
Core loss PFe [mW/g]
Relative value [%]
100
80
70
60
50
40
30
10
500[kHz]
400[kHz]
300[kHz]
200[kHz]
150[kHz]
100[kHz]
80[kHz]
1
1
10
100
1000
10000
1
10
100
1000
10000
Magnetic flux density
D
Bp-p[mT]
Frequency f [kHz]
?D.C.
BIAS CHARACTERISTICS (1)
@
Frequency : 100[kHz]
6
?D.C.
BIAS CHARACTERISTICS (2)
@
Frequency : 200[kHz]
6
5
5
Inductance L [MH]
Inductance L [MH]
4
4
3
LESM5F2JL32L0E
3
LESMCA4HU21L0E
2
2
LESMCA4JU21L0E
1
LESMBA4HU21L0E
1
0
0
20
40
60
80
100
0
0
10
20
30
40
D.C Current I [A]
D.C Current I [A]
(2/2)
CAT. No. E1008K
