2544S62ZP0T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2544S62ZP0T

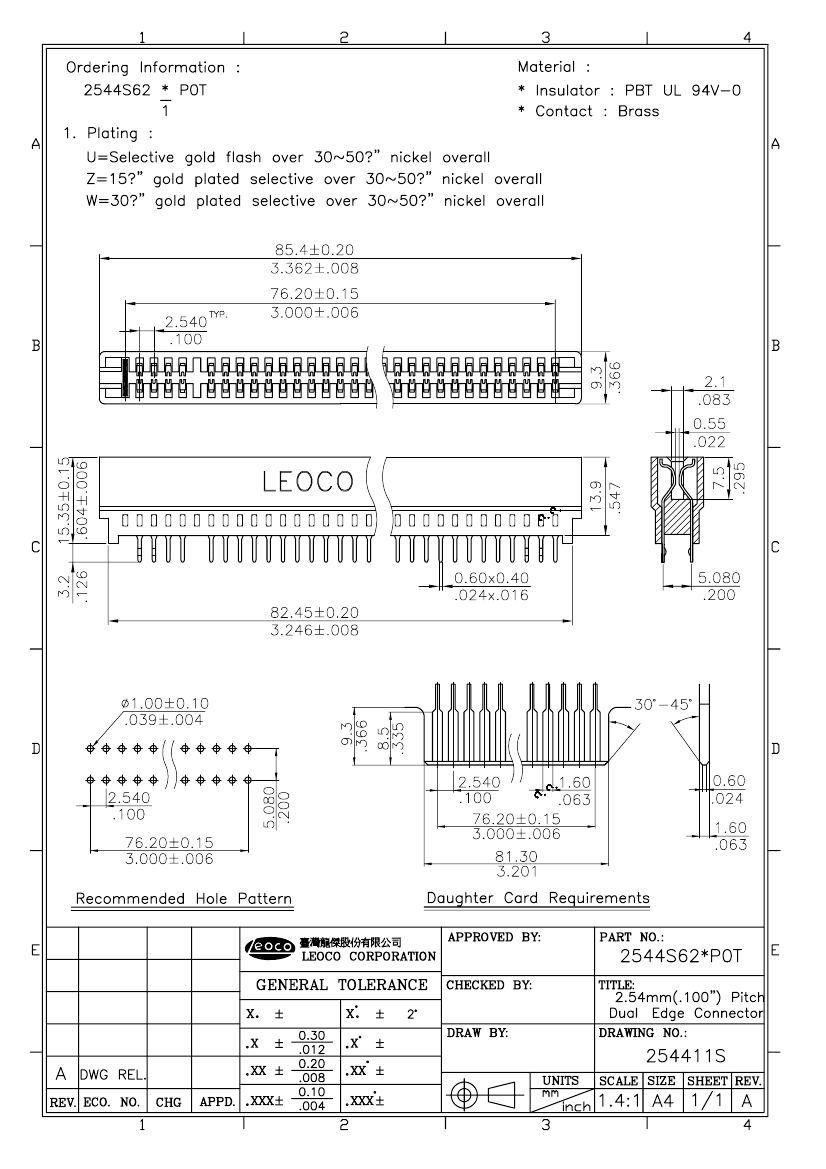

2544S62ZP0T: DescriptionCard Edge Connector, 62 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric Compare View All

2544S62ZP0T Overview

Card Edge Connector, 62 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

2544S62ZP0T Parametric

Parameter Name	Attribute value
Maker	Leoco USA Corp
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH MOLDED STANDOFFS
body width	0.366 inch
subject depth	0.604 inch
body length	3.362 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
Insulation resistance	500000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2544S
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	62

Preview

Download Datasheet

View All

2544S62ZP0T Related Products

	2544S62ZP0T	2544S62WP0T
Description	Card Edge Connector, 62 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Card Edge Connector, 62 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
Maker	Leoco USA Corp	Leoco USA Corp
Reach Compliance Code	unknown	unknown
Other features	WITH MOLDED STANDOFFS	WITH MOLDED STANDOFFS
body width	0.366 inch	0.366 inch
subject depth	0.604 inch	0.604 inch
body length	3.362 inch	3.362 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact material	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V	1000VAC V
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2544S	2544S
Plug contact pitch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.08 mm	5.08 mm
Plating thickness	15u inch	30u inch
Rated current (signal)	3 A	3 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	62	62
