Part Number

Search

55-46021-50W-T-TR

Description
Card Edge Connector, 50 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Latch, White Insulator
CategoryThe connector    The connector
File Size51KB,1 Pages
ManufacturerAstron
Websitehttp://www.astron.com.tw
Download Datasheet Parametric View All

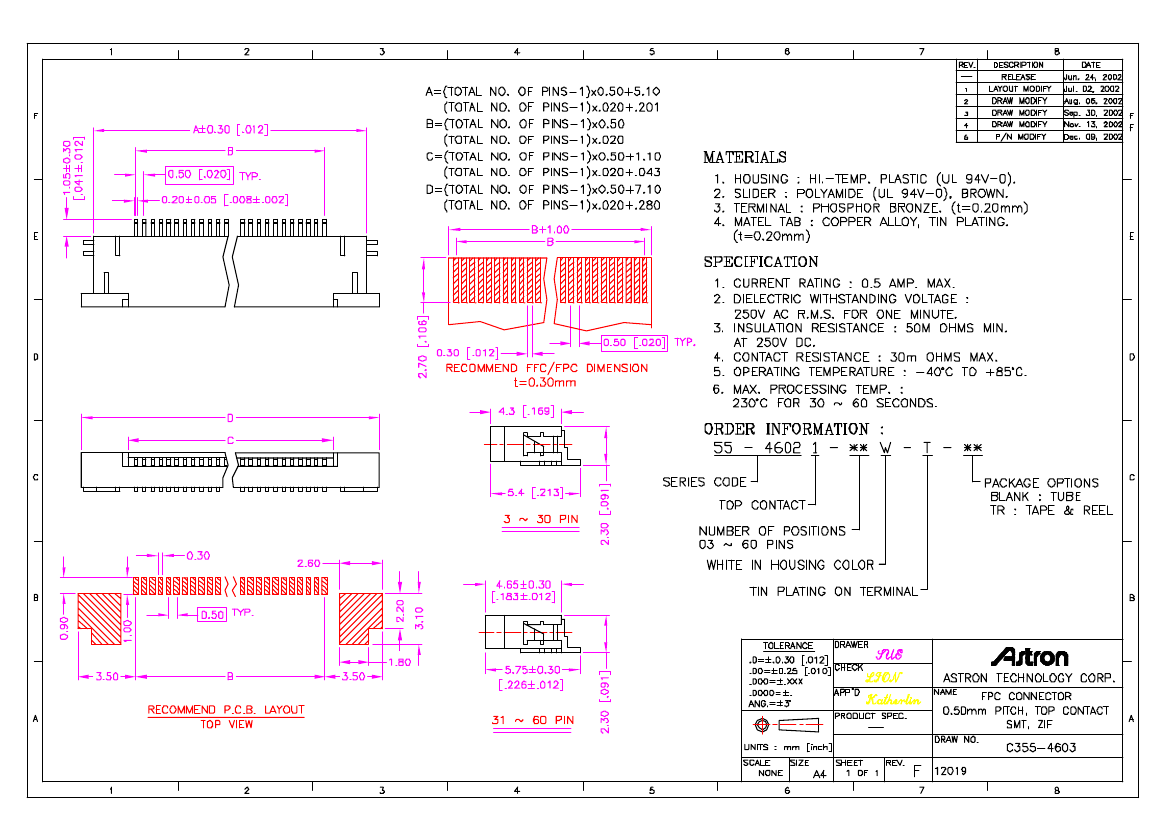

55-46021-50W-T-TR Overview

Card Edge Connector, 50 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Latch, White Insulator

55-46021-50W-T-TR Parametric

Parameter NameAttribute value
MakerAstron
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresBROWN SLIDER, TAPE & REEL PKG
Board mount optionsSOLDER HOLDING POSTS
body width0.091 inch
subject depth0.183 inch
body length1.244 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationSN
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSINGLE PRONG
Dielectric withstand voltage250VAC V
maximum insertion forceZIF N
Insulation resistance50000000 Ω
Insulator colorWHITE
insulator materialTHERMOPLASTIC
Plug contact pitch0.02 inch
Installation option 1LATCH
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.508 mm
Termination typeSURFACE MOUNT
Total number of contacts50
