T1500WBBB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> T1500WBBB

T1500WBBB: DescriptionRocker Switch, SPST, Latched, Solder Terminal, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size240KB，2 Pages; ManufacturerArcolectric

Download Datasheet Parametric View All

T1500WBBB Overview

Rocker Switch, SPST, Latched, Solder Terminal, Panel Mount, ROHS COMPLIANT

T1500WBBB Parametric

Parameter Name	Attribute value
Maker	Arcolectric
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
body width	14 mm
body height	16.2 mm
Body length or diameter	33.4 mm
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact voltage (AC)	250 V
Manufacturer's serial number	1500
Installation features	PANEL MOUNT
seal	SPLASH PROOF
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	ROCKER SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

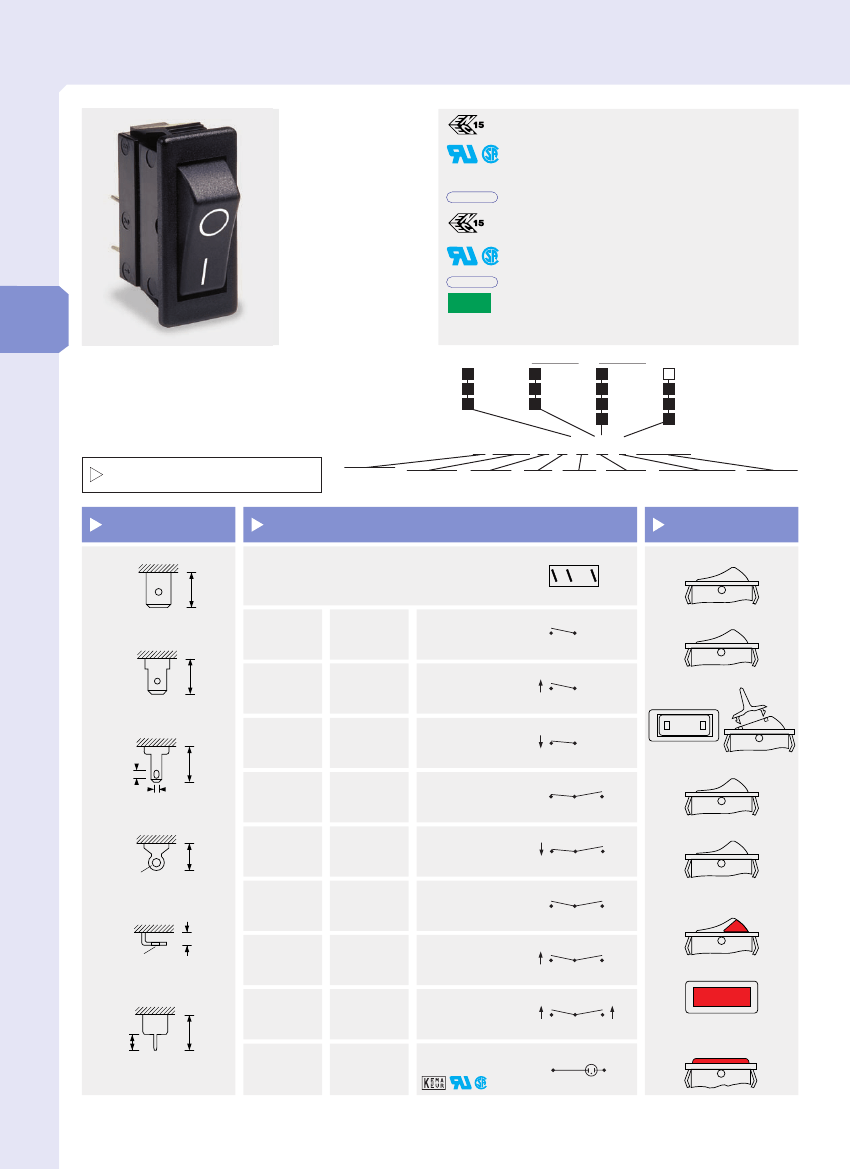

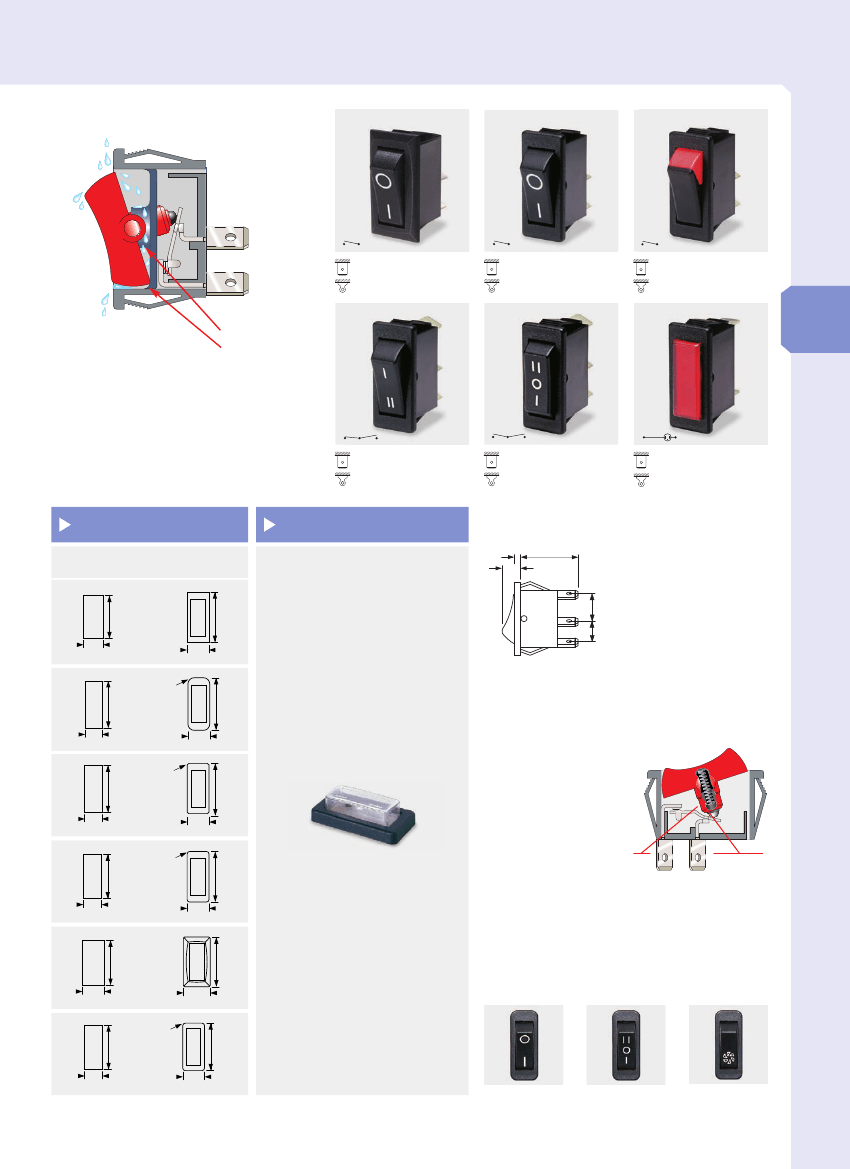

1500 Standard & 1300 High Inrush Switches

150A to EN61058-1 and 16A 250Vac

Standard rocker switch

Non-illuminated

1300 high inrush current

Choice of switching

circuits including 3

position

Choice of bezel styles

Choice of 6 panel cut

outs

We match all major

brands

Matching indicator

Single pole

Splash resistant option

Panel cut out ‘A’ style:

27.3 x 12.3

1500 Series 16(4)A 250Vac T125

UL CSA 16A Non Ind 250Vac, (2 posn) 250Vac 1hp, 125Vac

1/2hp, (3 posn) 250Vac 1/2hp, 125Vac 1/4hp

UL 10A 14Vdc ‘T’ (1500 and 1510 only)

UL 85˚C, file E45221, CSA file LR10990

In house test

10A 24Vdc

1300 series 16(6)A 250Vac T125 5E4 (50,000 Ops.)

150A Inrush to EN61058-1

UL CSA 20A 250Vac 1hp, 125Vac 1/2hp

UL 85˚C, file E45221, CSA file LR10990

In house test

20A 24Vdc

RoHS compliant

3mm contact gap except if marked µ.

Technical data on pages 4 & 5 (switches), 6 (indicators).

rocker

switches

RoHS

NON-LIT

BLACK

RED

WHITE

BLACK

RED

WHITE

LIT

AMBER

CLEAR

GREEN

RED

‘X’ ROCKER COLOR R,G,W,B

125V NEON

250V NEON

12V INCANDESCENT

C 1300 A L B B - 602AW

ORDER FORMAT

TERMINAL

9.1

TERMINAL

CODE

FUNCTION

CODE

FUNCTION

ROCKER

CODE

BODY BODY

CODE COLOR

ROCKER

COLOR

LAMP VOLTAGE

OR “ON LIGHT”

ROCKER

Softline Matt

LEGEND &

OPTIONS

Approvals & ratings vary with function

ON OFF Switches - ON when pressed over terminal 1

6.3 x 0.8

9.1

Standard

1500

‘L’ body only

Approvals apply to C & T

terminals only

High Inrush

1300

Splash resistant (with Arcshield)

ON - OFF

Matt

1501

HP rating N/A

ON - OFF

(momentary ON)

Slotted (for custom Adaptors)

not momentary

4.8 x 0.8*

9.1

2.0

1.2

1502

HP rating N/A

ON - OFF

(momentary OFF)

Curved Matt or gloss

1510

HP rating N/A

ON - ON

2.8 x 0.8*

1511

7.0

Ø2.1

HP rating N/A

Splash resistant (with Arcshield)

ON - ON

(momentary 1 side)

Matt

Solder

1520

125V & 250V 1/2 HP

H terminal rated

T100 only

Two color Matt

ON - OFF - ON

ON - OFF only (not momentary)

3.2

Ø2.1

1521

HP rating N/A

H terminal rated

T100 only

Right angle “T” solder terminal

ON - OFF - ON

(momentary 1 side)

Flat lens Gloss (0430 only)

9.1

4.0

1522

HP rating N/A

H terminal rated

T100 only

ON - OFF - ON

(momentary 2 sides)

Indicator

Technical data on page 6

Softline lens Matt (0430 only)

as F but with raised profile

PCB 0.8Sq*

*N/A for 1300 series

430

X terminal N/A

Phone: 760-343-3650 •

Arcolectric

• Email: americas@elektron-technology.com
