Datasheet> All Categories > Passive components> oscillator> X1G004171002511

X1G004171002511: DescriptionCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size236KB，5 Pages; ManufacturerSeiko Epson Corporation; Environmental Compliance

Download Datasheet Parametric Compare View All

X1G004171002511 Overview

CMOS Output Clock Oscillator,

X1G004171002511 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Seiko Epson Corporation
Reach Compliance Code	unknow
Other features	STANDBY; ENABLE/DISABLE FUNCTION
maximum descent time	3.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	14.7456 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	2.5mm x 2mm x 0.8mm
longest rise time	3.5 ns
Maximum slew rate	1.8 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	1.6 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

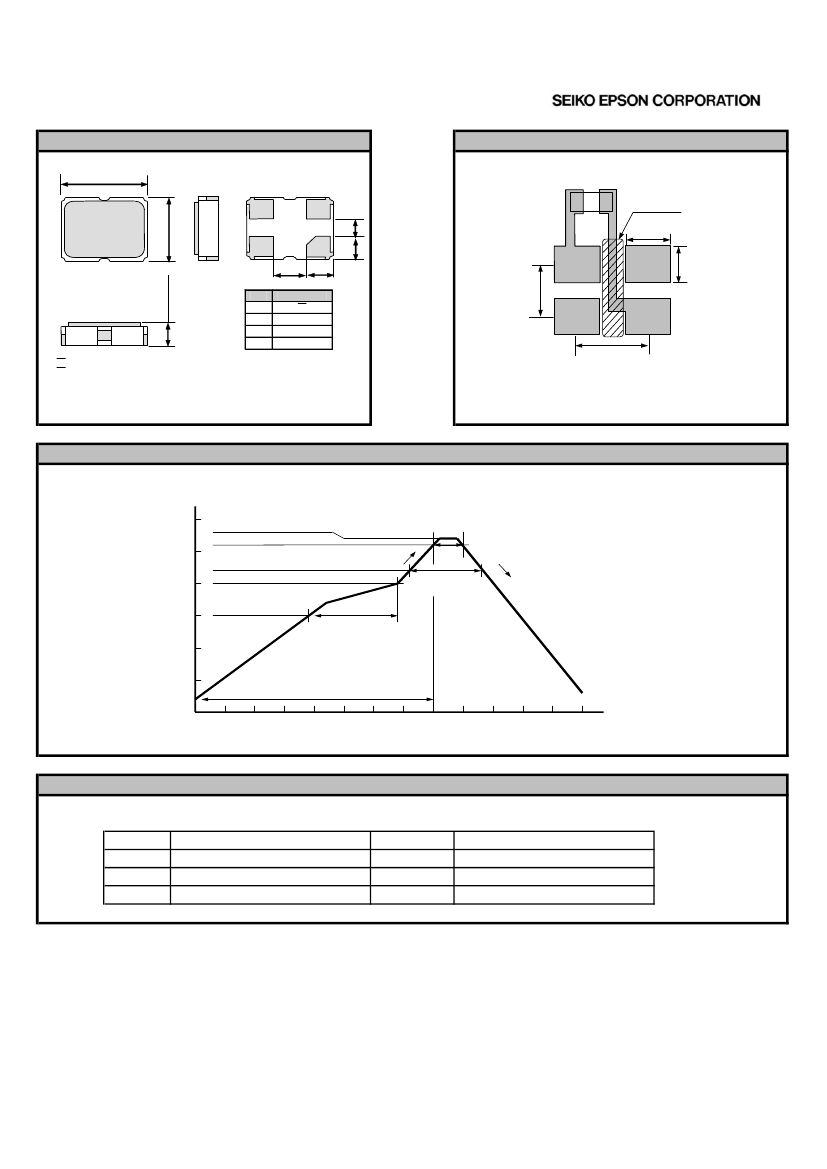

Clock OSC

SG-210STF

SG-210STF 14.745600 MHz L

Product name

Product Number / Ordering code

X1G0041710025xx

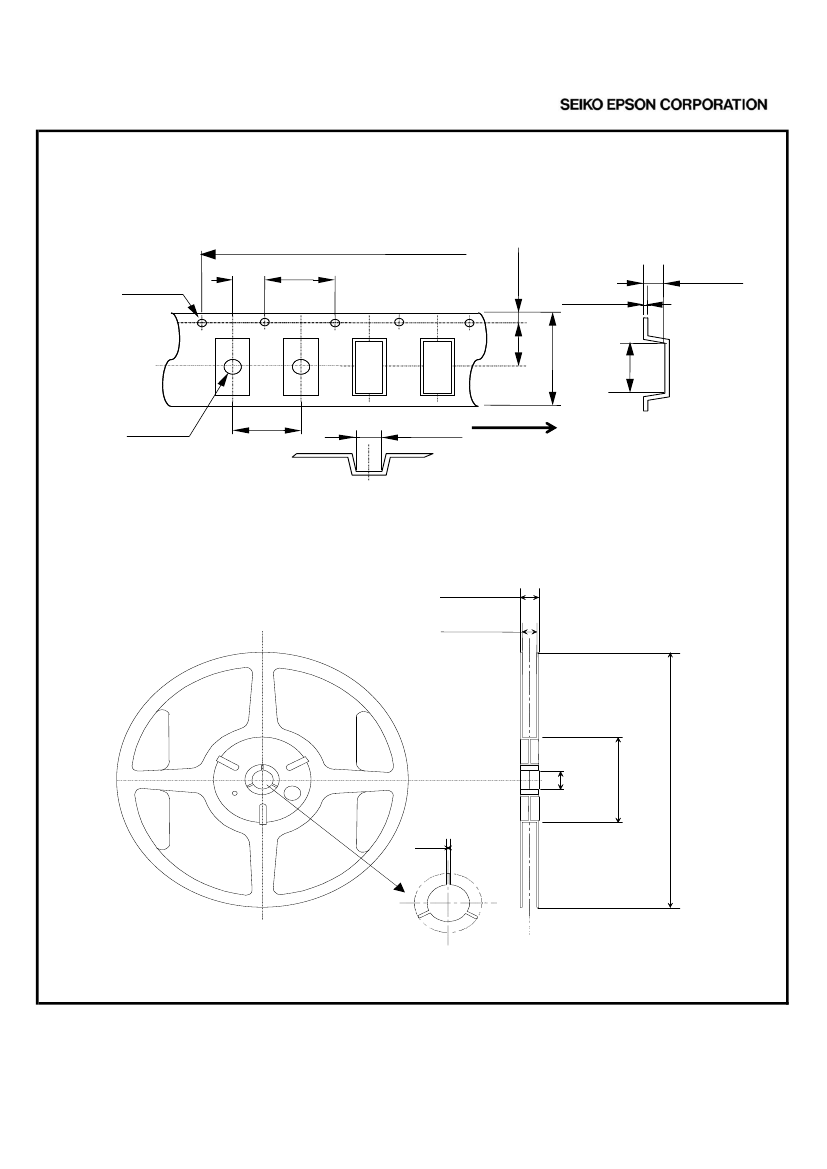

Please refer to the 8.Packing information about xx (last 2 digits)

Output waveform CMOS

Pb free / Complies with EU RoHS directive

Reference weight Typ. 12 mg

1.Absolute maximum ratings

Parameter

Symbol

Maximum supply voltage

Storage temperature

Input voltage

Min.

-0.3

-40

-0.3

Typ.

Max.

+125

Vcc+0.3

Unit

ºC

Conditions / Remarks

Storage as single product

ST terminal

Vcc-GND

T_stg

Vin

2.Specifications(characteristics)

Parameter

Symbol

Output frequency

Supply voltage

Operating temperature

Frequency tolerance

Current consumption

Stand-by current

Symmetry

Output voltage

Output load condition

Input voltage

Min.

1.6

-40

-50

Vcc-0.4

0.8Vcc

-3

Typ.

14.745600

2.4

2.3

2.5

0.66

-97

-126

-146

-155

-158

-159

Max.

3.6

+85

1.8

2.7

0.4

0.2Vcc

3.5

Unit

MHz

ºC

x10

-6

µA

Conditions / Remarks

T_use

No load condition Vcc = 3.6V

Vcc = 3.6V , ST = GND

50% Vcc Level L_CMOS=<15pF

Vcc

T_use

f_tol

Icc

I_std

SYM

L_CMOS

t_str

RMS

p-p

acc

CMOS Load

ST terminal

Vcc1.8V±10% : 0.2Vcc to 0.8Vcc Level,

L_CMOS=15pF

Vcc1.8V±10% : 0.2Vcc to 0.8Vcc Level,

L_CMOS=15pF

t = 0 at 0.9Vcc

Deterministic Jitter Vcc=3.3V

Random Jitter Vcc=3.3V

δ(RMS of total distribution) Vcc=3.3V

Peak to Peak Vcc=3.3V

Accumulated Jitter(δ) n=2 to 50000

cycles

Off set Frequency: 12kHz to 20MHz, Vcc=3.3V

Rise time

Fall time

Start-up time

Jitter

dBc/Hz

x10

-6

Phase jitter

Phase noise

L(f)

Off set 10Hz Vcc=3.3V

Off set 100Hz Vcc=3.3V

Off set 1kHz Vcc=3.3V

Off set 10kHz Vcc=3.3V

Off set 100kHz Vcc=3.3V

Off set 1MHz Vcc=3.3V

@+25ºC first year

Frequency aging

f_age

1 Page

X1G004171002511 Related Products

	X1G004171002511	X1G004171002501	X1G004171002500	X1G004171002515	X1G004171002514	740W-A/01
Description	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,	CMOS Output Clock Oscillator,	AC RECEPTACLE
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	-
Maker	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	Seiko Epson Corporation	-
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	-
Other features	STANDBY; ENABLE/DISABLE FUNCTION	STANDBY; ENABLE/DISABLE FUNCTION; TAPE	STANDBY; ENABLE/DISABLE FUNCTION	STANDBY; ENABLE/DISABLE FUNCTION	STANDBY; ENABLE/DISABLE FUNCTION	-
maximum descent time	3.5 ns	3.5 ns	3.5 ns	3.5 ns	3.5 ns	-
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	-
frequency stability	50%	50%	50%	50%	50%	-
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Number of terminals	4	-	4	4	4	-
Nominal operating frequency	14.7456 MHz	14.7456 MHz	14.7456 MHz	14.7456 MHz	14.7456 MHz	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-
Oscillator type	CMOS	CMOS	CMOS	CMOS	CMOS	-
Output load	15 pF	15 pF	15 pF	15 pF	15 pF	-
physical size	2.5mm x 2mm x 0.8mm	2.5mm x 2.0mm x 0.8mm	2.5mm x 2mm x 0.8mm	2.5mm x 2mm x 0.8mm	2.5mm x 2mm x 0.8mm	-
longest rise time	3.5 ns	3.5 ns	3.5 ns	3.5 ns	3.5 ns	-
Maximum slew rate	1.8 mA	-	1.8 mA	1.8 mA	1.8 mA	-
Maximum supply voltage	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	-
Minimum supply voltage	1.6 V	1.6 V	1.6 V	1.6 V	1.6 V	-
surface mount	YES	YES	YES	YES	YES	-
maximum symmetry	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	-
Base Number Matches	1	1	1	1	1	-
