BS0504CDSU561KT: DescriptionGeneral Purpose Inductor, 560uH, 10%, 1 Element, SMD, CHIP, 2320; CategoryPassive components inductor; File Size405KB，3 Pages; ManufacturerKing Core Electronics Inc

Download Datasheet Parametric Compare View All

BS0504CDSU561KT Overview

General Purpose Inductor, 560uH, 10%, 1 Element, SMD, CHIP, 2320

BS0504CDSU561KT Parametric

Parameter Name	Attribute value
Maker	King Core Electronics Inc
Reach Compliance Code	unknow
ECCN code	EAR99
DC Resistance	2.5 Ω
Nominal inductance(L)	560 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum rated current	0.2 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.001 MHz
Tolerance	10%

Preview

Download Datasheet

View All

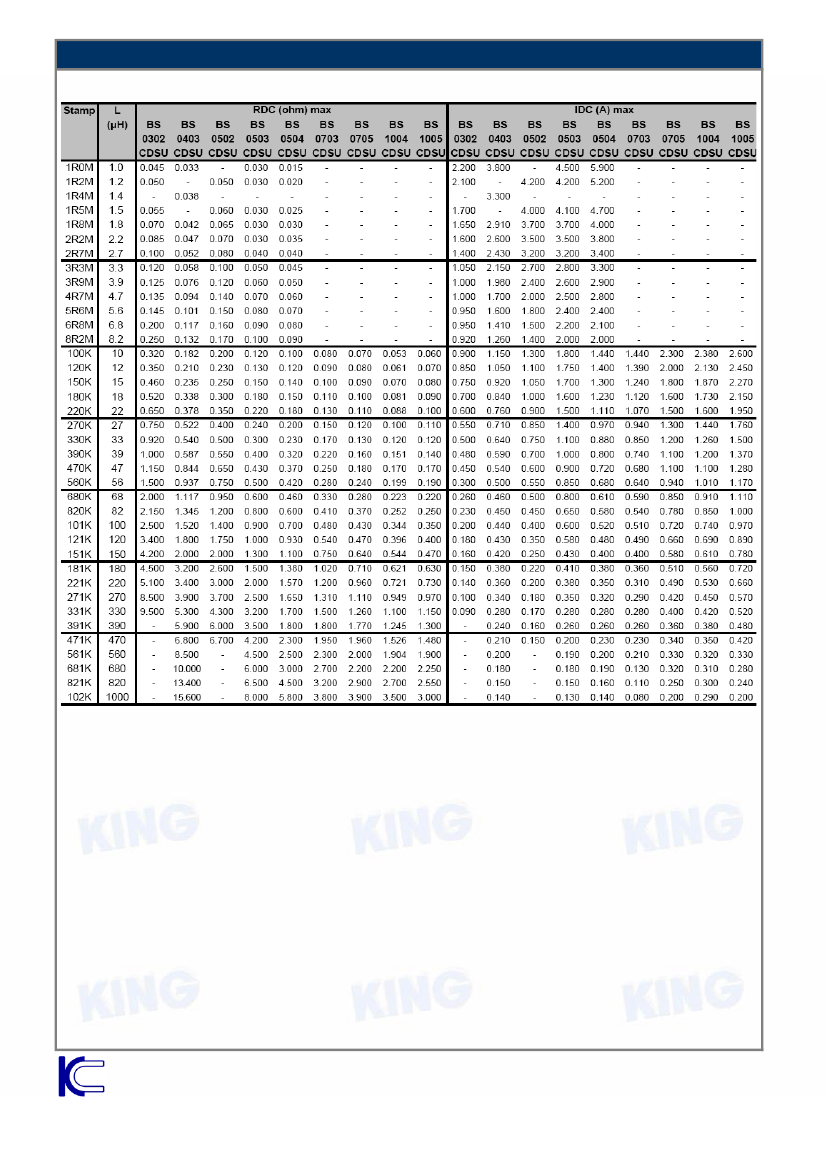

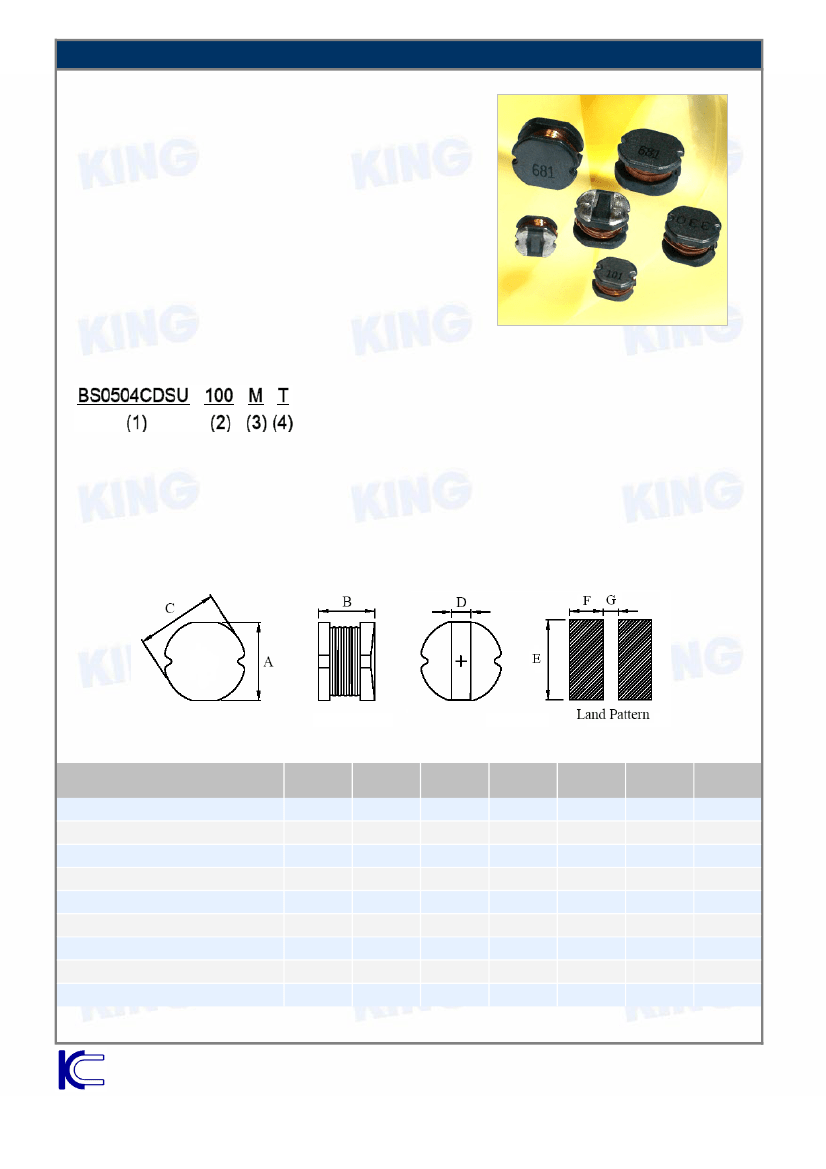

SPECIFICATION OF BS□□□□CDSU SERIES

FEATURES

1. To be high saturation for surface mounting type

inductors.
