B003-L33-02 datasheet, PDF - EEWORLD Datasheet

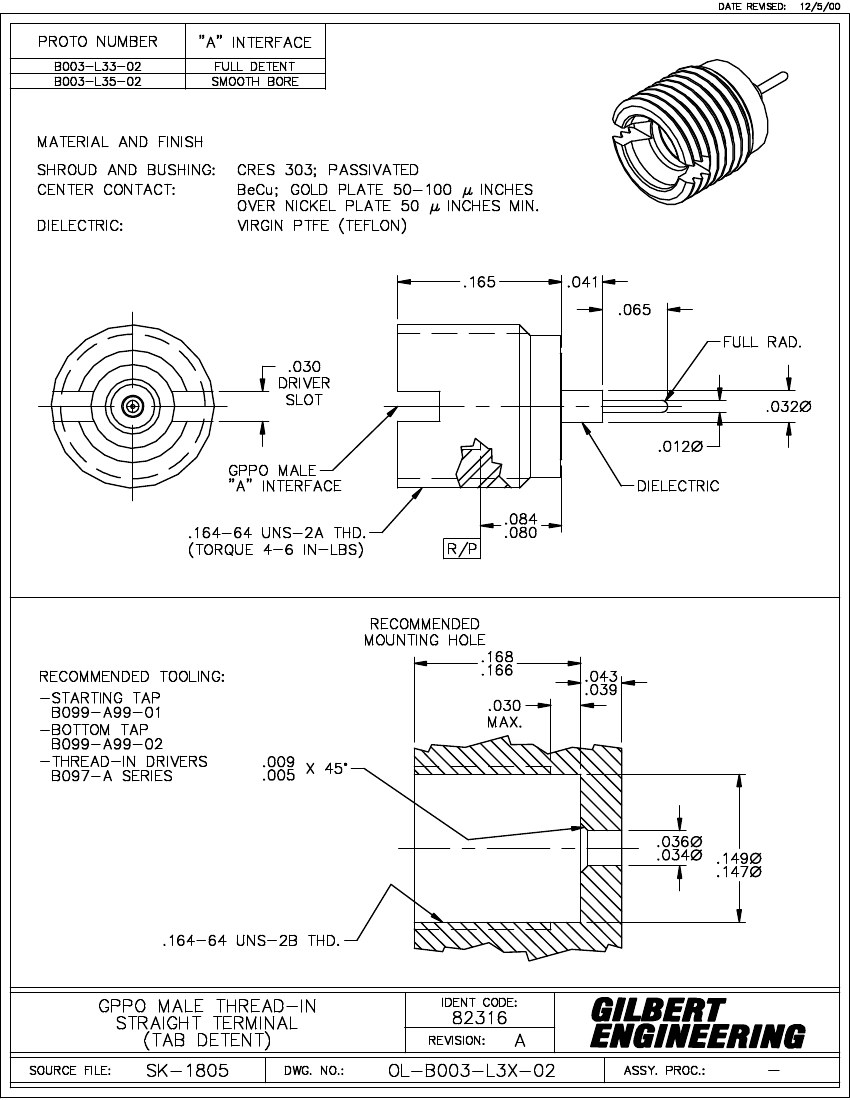

B003-L33-02: DescriptionBlindmate Connector, Male, Panel Mount,; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerCorning Gilbert Inc

Download Datasheet Parametric Compare View All

B003-L33-02 Overview

Blindmate Connector, Male, Panel Mount,

Parameter Name	Attribute value
Maker	Corning Gilbert Inc
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	GPPO, VSWR MEASURED AT 50 GHZ; VSWR AT 26.5 GHZ: 1.1
Characteristic impedance	50 Ω
Connector type	BLINDMATE CONNECTOR
Contact to complete cooperation	GOLD (100) OVER NICKEL (50)
Contact completed and terminated	GOLD (100) OVER NICKEL (50)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SLIDE ON
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PTFE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	B003-L
Installation method	STRAIGHT
Maximum operating frequency	65 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
voltage standing wave ratio	1.3

	B003-L33-02	B003-L35-02
Description	Blindmate Connector, Male, Panel Mount,	Blindmate Connector, Male, Panel Mount,
Maker	Corning Gilbert Inc	Corning Gilbert Inc
Reach Compliance Code	unknow	unknown
Other features	GPPO, VSWR MEASURED AT 50 GHZ; VSWR AT 26.5 GHZ: 1.1	GPPO, VSWR MEASURED AT 50 GHZ; VSWR AT 26.5 GHZ: 1.1
Characteristic impedance	50 Ω	50 Ω
Connector type	BLINDMATE CONNECTOR	BLINDMATE CONNECTOR
Contact to complete cooperation	GOLD (100) OVER NICKEL (50)	GOLD (100) OVER NICKEL (50)
Contact completed and terminated	GOLD (100) OVER NICKEL (50)	GOLD (100) OVER NICKEL (50)
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
Coupling type	SLIDE ON	SLIDE ON
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	PTFE	PTFE
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	B003-L	B003-L
Installation method	STRAIGHT	STRAIGHT
Maximum operating frequency	65 GHz	65 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES
voltage standing wave ratio	1.3	1.3
