384960 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 384960

Preview

384960: DescriptionD Subminiature Connector, 9 Contact(s), Female, Surface Mount Terminal,; CategoryThe connector The connector; File Size135KB，1 Pages; ManufacturerProvertha Connectors Cables & Solutions GmbH

Download Datasheet Parametric Compare View All

384960 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	384960	-	-	View	Buy Now

384960 Overview

D Subminiature Connector, 9 Contact(s), Female, Surface Mount Terminal,

384960 Parametric

Parameter Name	Attribute value
Maker	Provertha Connectors Cables & Solutions GmbH
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Housing size	1/E
Termination type	SURFACE MOUNT
Total number of contacts	9

Preview

Download Datasheet

View All

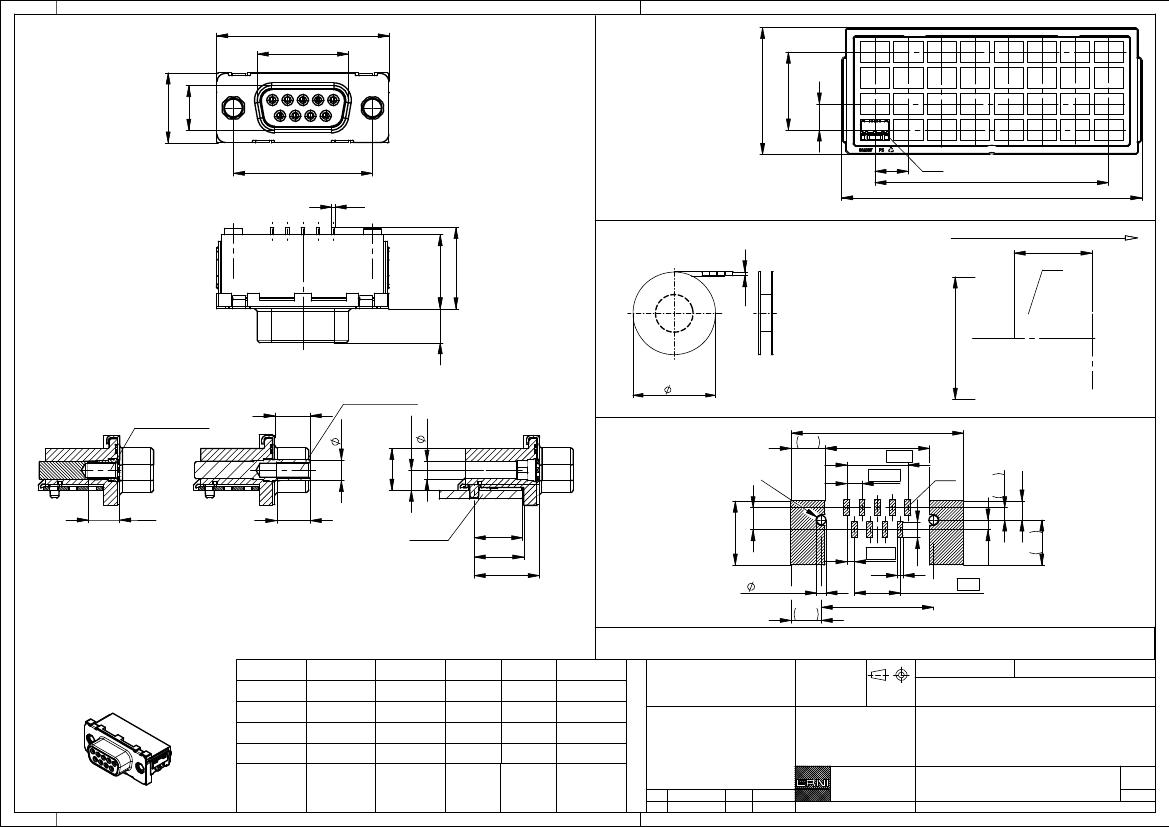

31

-0,4

+0,2

16,4

-0,2

12,6

±0,3

8

-0,2

28

tray packaging

packaging unit 32 pcs

3 x 28 = 84

138

max.

Verpackt in Tray

Verpackungseinheit 32 Stück

25

±0,1

0,6

36

Pin 1

7 x 36 = 252

325

max.

Sonstige Angaben siehe Zeichnung 204630 /

additional indications according to drawing 204630

Verpackt in Gurtverpackung

-

Tape on Reel Packaging

Verpackungseinheit: 125 Stück -

Packaging unit: 125 pcs

13,3

14,6

Abspulrichtung -

Reel off Direction

28

Pin 1

6,3

-0,25

13,5

Mutter /

nut

Gewinde /

thread

M3 / #4-40

Bolzen /

bolt

6,4

3,7

Gewinde /

thread

M3 / #4-40

3,6

±0,1

3,2

ohne / without

330

Sonstige Angaben siehe Zeichnung 204656 /

additional indications according to drawing 204656

Layoutvorschlag

recommended layout

R0

,9

5

6,1

31

18,8

4 x 2,74 = 10,96

2,2

2:1

1,75

3,4

8,1

2,74

Pin 1

LP /

PCB

11,7

Anschlussbereich verzinnt

terminal area tin plating

1,7

+0,1

1

3 x 2,74 = 8,22

20,2

±0,05

5,4

Koplanarität der Anschlüsse

≤

0,1 mm

coplanarity area of termination

≤

0,1 mm

Anforderungsstufe: 2

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to production documentation

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

class: 2

224818

464553

214647

384960

Ident-Nr.

174428

154142

154141

204773

214643

Ident-Nr.

Ø

3,2

#4-40

M3

#4-40

M3

Information:

Tolerances

All Dimensions

in mm

2,8

Scale

Designation

8,9

11,5

Gewindetiefe /

depth of thread

Gewindetiefe /

depth of thread

8,7

3,95

5,6

6

7,5

1,37

part-no.

Gurt

part-no.

Tray

tape on reel

tray

without

ohne

Mutter

nut

Bolzen

bolt

Bemerkung

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

n

Index

16.02.2012

Date

Subject to modification without

prior notice.

Drawing will not be updated.

44

TMC-S-09-SMD-Euro-BA8

remark

www.ERNI.com

Class

144847

TMCS

I

A3

384960 Related Products

	384960	214647	154142	174428	204773
Description	D Subminiature Connector, 9 Contact(s), Female, Surface Mount Terminal,	D Subminiature Connector, 9 Contact(s), Female, Surface Mount Terminal, #4-40, Plug,	D Subminiature Connector, 9 Contact(s), Female, Surface Mount Terminal, #4-40, Plug, ROHS COMPLIANT	D Subminiature Connector, 9 Contact(s), Female, Surface Mount Terminal, M3, Plug, ROHS COMPLIANT	D Subminiature Connector, 9 Contact(s), Female, Surface Mount Terminal, #4-40, Plug, ROHS COMPLIANT
Maker	Provertha Connectors Cables & Solutions GmbH	Provertha Connectors Cables & Solutions GmbH	Provertha Connectors Cables & Solutions GmbH	Provertha Connectors Cables & Solutions GmbH	Provertha Connectors Cables & Solutions GmbH
Reach Compliance Code	compliant	compliant	compli	compli	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	1/E	1/E	1/E	1/E	1/E
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	9	9	9	9	9
Is it Rohs certified?	-	conform to	conform to	conform to	conform to
Other features	-	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	-	0.496 inch	0.496 inch	0.496 inch	0.496 inch
body length	-	1.22 inch	1.22 inch	1.22 inch	1.22 inch
Body/casing type	-	PLUG	PLUG	PLUG	PLUG
Contact material	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	-	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
maximum insertion force	-	3.336 N	3.336 N	3.336 N	3.336 N
Insulation resistance	-	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	-	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
Installation option 1	-	#4-40	#4-40	M3	#4-40
Installation option 2	-	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
PCB row number	-	2	2	2	2
Number of rows loaded	-	2	2	2	2
Maximum operating temperature	-	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	-	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm
Rated current (signal)	-	5.5 A	5.5 A	5.5 A	5.5 A
Guideline	-	UL	UL	UL	UL
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	-	TIN	TIN	TIN	TIN
Shell material	-	STEEL	STEEL	STEEL	STEEL
Terminal pitch	-	2.7432 mm	2.7432 mm	2.7432 mm	2.7432 mm
UL Flammability Code	-	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	-	.3058 N	.3058 N	.3058 N	.3058 N
package instruction	-	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
