REVISIONS
REV.
01
02
03
04
05
DESCRIPTION
FIRST RELEASE FOR RFQ#A02-5230
ADD MECHANICAL DIMENSIONS AND CHANGE LEAD LENGTH
REVISE THE DRAWING FORMAT AS PER CUSTOMER REQUEST
ADD RoHS COMPLIANT VERSION INTO DRAWING
DELETE STANDOFF DIMENSION AND UPDATE INTERNAL SPECIFICATION
ECN NO.
N/A
EE2901
EE5287
EE6570
EE7157
DATE
09/23/02
10/10/02
06/18/04
05/16/05
08/16/05
PART NUMBER
832-00256
832-00256F
PART DESCRIPTION
Standard version, with Lead(Pb)
RoHS compliant per EU Directive 2002/95/EC(without exemption of solder content)
UNLESS OTHERWISE
SPECIFIED, DIMENSIONS
ARE IN INCH/mm.
PAGE 4 IS FOR INTERNAL ONLY
TITLE
COMMON MODE CHOKE, VERTICAL
MOUNT, THRU HOLE, 4 PIN
APPROVALS
DRAWN BY
DATE
08/16/05
08/16/05
08/16/05
08/16/05
SCALE
DRAWING NO./MODEL
REV
WARNING !
B. MAK
PROJ. ENG
ALL SHEETS OF THIS DOCUMENT ARE
CONTROLLED DOCUMENTA TION AND
TOLERANCE ARE:
ARE NOT TO BE RELEASED OUTSIDE
INCH
mm
ANGLE
OF E&E OR ITS SUB-CONTRACTORS
.XXX ± .005 .XX ± .13 X.X ± 0.3
WITHOUT AUTHORIZATION.
.XX ± .02
.X ± .5
X. ± 1
B. MAK
APPROVED BY
V. TSUI
Q.A.
832-00256
PAGE
OF
05
1
4
C.M. TSUI
DO NOT SCALE
SIDE VIEW
.680
17.27 MAX
4
END VIEW
.750
MAX
19.05
Reference or
Gauge Plane
.200
5.08
.750 MAX
19.05
.425
MAX
10.80
FOOT PRINT
.600±.010
15.24±0.25
1
4
.250±.010
6.35±0.25
2
3
DIA:
.050
1.27

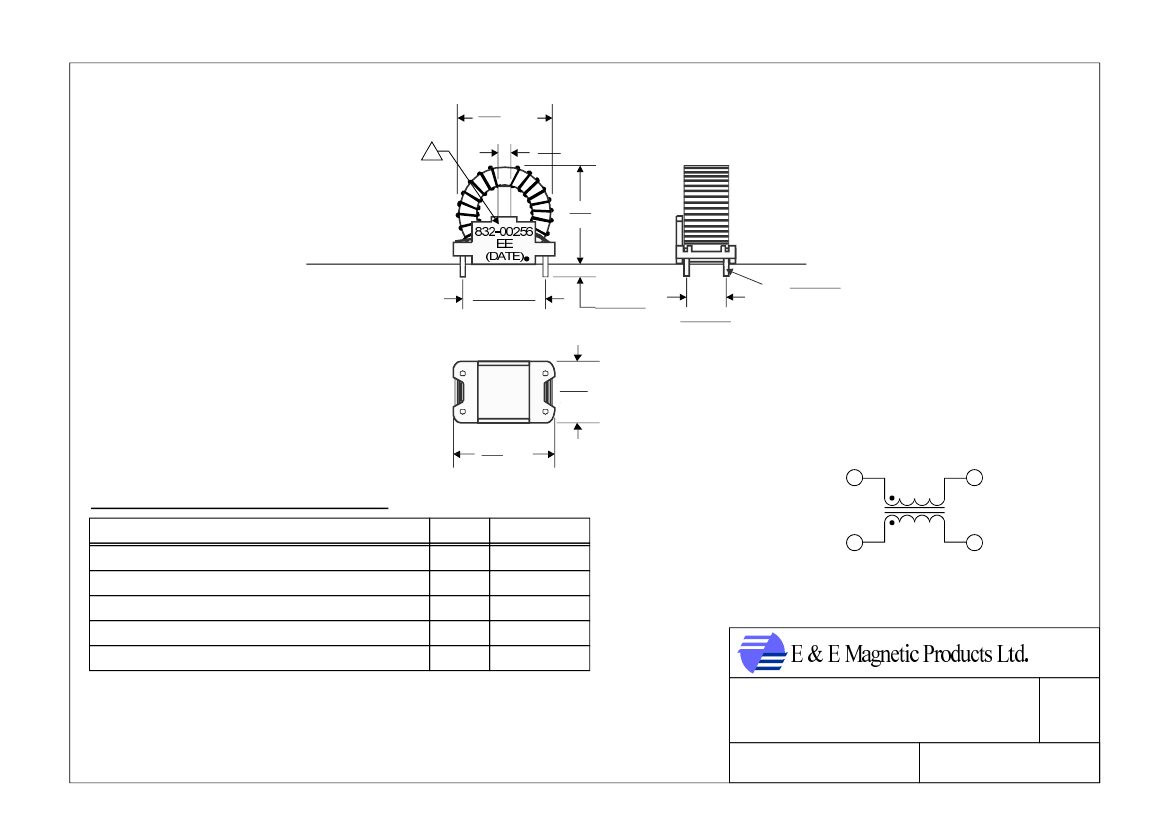

MECHANICAL OUTLINE
1. Dimensions are specified in
inches
with higher precedence in inches.
mm
2. Unless otherwise specified, all tolerances are ±
0.25
.
3. "(DATE)" includes at least the manufacturing date code(in YYWW format) plus two
character country code.
4. For RoHS compliant version, 832-00256F, the part will be marked with “832-00256F”, instead of
“832-00256”.
SCALE
.010
DRAWING NO./MODEL
REV
832-00256
PAGE
OF
05
2
4
DO NOT SCALE
ELECTRICAL SPECIFICATION @25
°
C:
PARAMETERS
Turn Ratio(1-2):(4-3)
Polarity
Inductance, Ls(1-2) @10kHz, 1.0Vrms
DCR(Each Winding)
HIPOT(1-2):(4-3)
1
2
UNIT
-
-
mH
Ω
LIMITS
1:1 ± 1%
Per Schematic
1.12 Min
0.025 Max
1500 Min
4
3
SCHEMATIC
VAC
DRAWING NO./MODEL
REV
5. Rated current is 5Arms and rated voltage is 250Vac, 50/60Hz.
6. Operating temperature: -20°C to +85°C.
SCALE
832-00256
PAGE
OF
05
3
4
DO NOT SCALE
.680
17.27 MAX
4
.079
TYP
2.00
.750
MAX
19.05
Reference or
Gauge Plane
.600±.010
15.24±0.25
.200±.010
5.08±0.25
DIA:
.030±.005
0.76±0.13
.250±.010
6.35±0.25
4
1
.425
MAX
10.80
3
.750 MAX
19.05
2
1
2
ELECTRICAL SPECIFICATION @25
°
C:
PARAMETERS
Turn Ratio(1-2):(4-3)
Polarity
Inductance, Ls(1-2) @10kHz, 1.0Vrms
DCR(Each Winding)
HIPOT(1-2):(4-3)
UNIT
-
-
mH
Ω
LIMITS
4
1:1 ± 1%
Per Schematic
1.20 Min
0.022 Max
1500 Min
3
SCHEMATIC
FOR PRODUCTION ONLY
DRAWING NO./MODEL
REV
Vrms
832-00256
SCALE
PAGE
OF
05
4
4
DO NOT SCALE
