LGC-AM303: DescriptionFiber Optic Connector Adapter, Simplex, ROHS COMPLIANT; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

LGC-AM303 Overview

Fiber Optic Connector Adapter, Simplex, ROHS COMPLIANT

LGC-AM303 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	NO
Insertion loss	0.3 dB
MIL compliance	NO
Installation type	PANEL
Options	GENERAL PURPOSE

Preview

Download Datasheet

View All

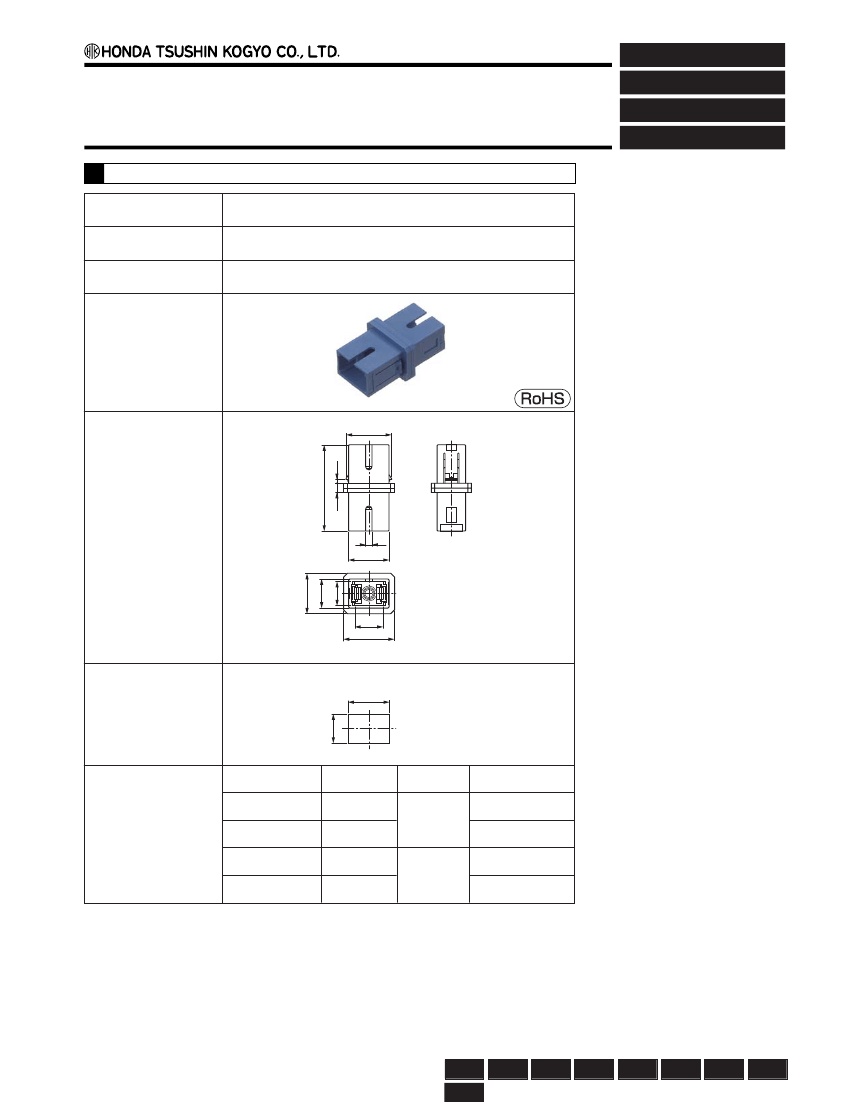

Optical fiber connector

SC-type Adaptor

LGC-300 series

SC-type Adaptor (SC-A type Adaptor)

Type of Adaptor

Mounting Clamps

Housing

Simplex

Retaining-lock-bracket for vertical board

Plastic (Color: Blue)

SC-type

JIS C 5973 F04 type

Adaptor

Overview

14.4

unit(mm)

27.4

Drawing

12.8

12.6

9.1

7.4

3

A

2

9

16

unit(mm)

13.1

+0.3

0

9.3

+0.3

0

Mounting

Hole Size

A (mm)

LGC-AM301

Item Number

LGC-AM301A

LGC-AM303

LGC-AM303A

1.2

±0.1

1.8

±0.1

1.2

±0.1

1.8

±0.1

Alignment- Thickness of PCB

(mm)

Sleeve

Phosphor-

Bronze

1.0

1.6

1.0

1.6

Zirconia

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

SMT

Through

hole

LGC-AM303 Related Products

	LGC-AM303	LGC-AM301A	LGC-AM301	LGC-AM303A
Description	Fiber Optic Connector Adapter, Simplex, ROHS COMPLIANT	Fiber Optic Connector Adapter, Simplex, ROHS COMPLIANT	Fiber Optic Connector Adapter, Simplex, ROHS COMPLIANT	Fiber Optic Connector Adapter, Simplex, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknow	unknown	unknown	unknown
Connection Type	SIMPLEX	SIMPLEX	SIMPLEX	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR ADAPTER	FIBER OPTIC CONNECTOR ADAPTER	FIBER OPTIC CONNECTOR ADAPTER	FIBER OPTIC CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Coupling type	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insertion loss	0.3 dB	0.3 dB	0.3 dB	0.3 dB
MIL compliance	NO	NO	NO	NO
Installation type	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
