Optical fiber connector
MU-type Plug
LGC-600 series
MU-type
JIS C 5983 F14 type
Plug
●

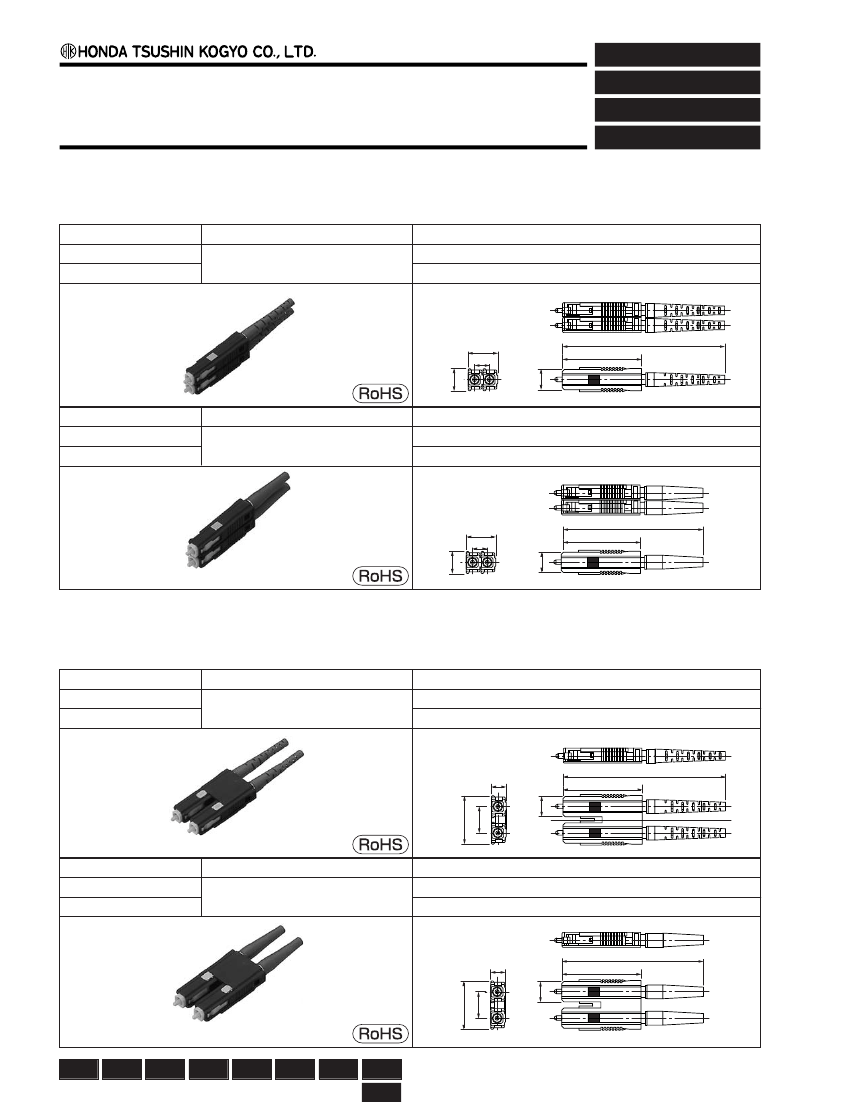

MU-type Vertical (H type) duplex Plug Housing (MU-2PH type Plug Housing)
This MU-plug is connectable to the high-density plug-in-type back board housing, MU-type vertical (H type) 2-ports and 8-ports
adaptors, Simplified Receptacle 2-ports or more, respectively.
Item Number
LGC-2PH604+R
LGC-2PH604B+R
Applicable Outside Diameter of Optical fiber cords
Note
For AdPC polishing (Boot color : Mauve)
For PC polishing
Ferrule is excluded.
ø2mm
(Boot color : Blue)
unit(mm)
8.9
4.5
6.6
5.6
48 REF.
23.6
Item Number
LGC-2PH603+R
LGC-2PH603B+R
Applicable Outside Diameter of Optical fiber cords
Note
For AdPC polishing (Boot color : Mauve)
For PC polishing
Ferrule is excluded.
ø0.9mm
(Boot color : Blue)
unit(mm)
8.9
4.5
6.6
5.6
42 REF.
23.6
●
MU-type Horizontal (F type) duplex Plug Housing
This plug housing is connectable to the MU-type horizontal 2-ports adaptor. It is not employable as a high-density plug-in-type
optical connector.
Item Number
LGC-F2PH604+R
LGC-F2PH604B+R
Applicable Outside Diameter of Optical fiber cords
Note
For AdPC polishing (Boot color : Mauve)
For PC polishing
Ferrule is excluded.
48 REF.
23.6
5.6
ø2mm
(Boot color : Blue)
unit(mm)
4.4
14.1
7.5
Item Number
LGC-F2PH603L+R
LGC-F2PH603B+R
Applicable Outside Diameter of Optical fiber cords
Note
For AdPC polishing (Boot color : Mauve)
For PC polishing
Ferrule is excluded.
42 REF.
23.6
5.6
ø0.9mm
(Boot color : Blue)
unit(mm)
4.4
14.1
7.5
