LPC-30F02 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> LPC-30F02

LPC-30F02: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Female, Crimp Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

LPC-30F02 Overview

Board Connector, 30 Contact(s), 2 Row(s), Female, Crimp Terminal, ROHS COMPLIANT

LPC-30F02 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	30

Preview

Download Datasheet

View All

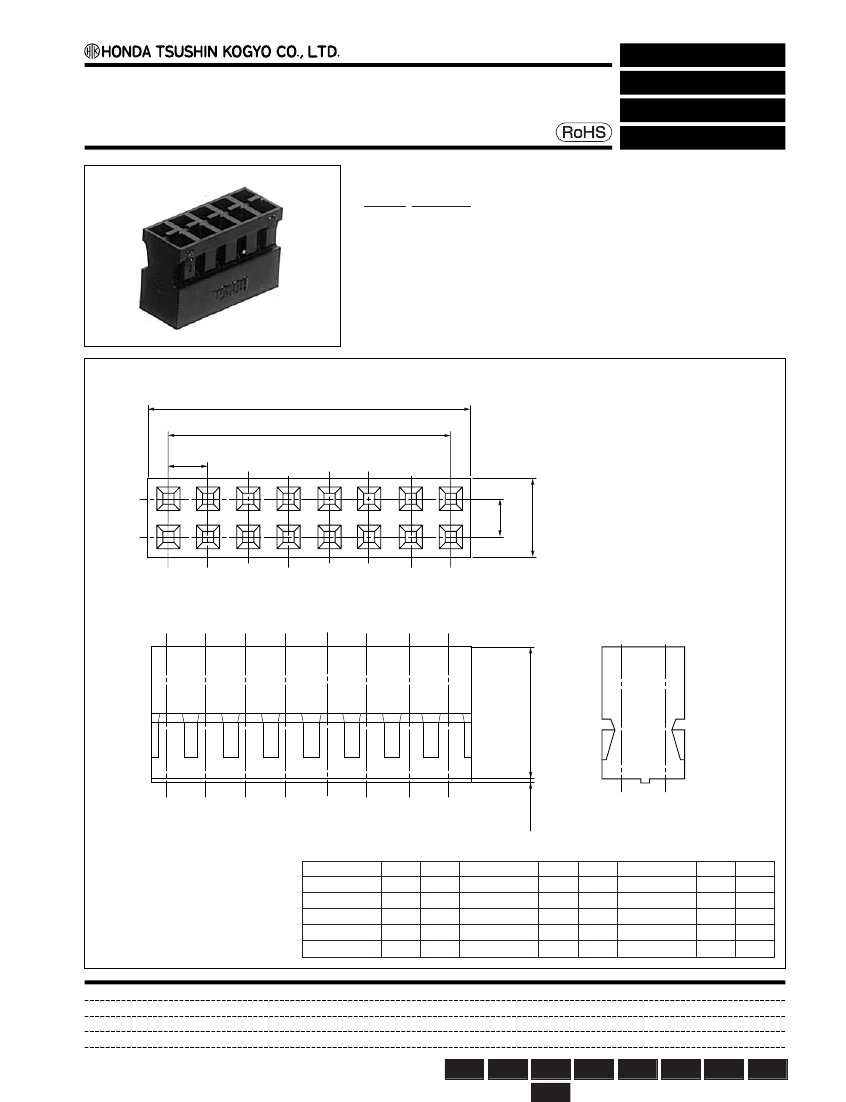

2 mm pitch connector

Cable crimping type female insulator

LPC-( )F02

●

Configuration of product Part No.

For cable

Crimping

LPC- ( )F02

➀

➁

➀

Series name

➁

No. of contacts: 6-20, 24, 26, 28, 30, 34, 36 or 44

HONDA

●

Dimensions

Part No.

LPC-6F02

LPC-8F02

LPC-10F02

LPC-12F02

LPC-14F02

Part No.

LPC-16F02

LPC-18F02

LPC-20F02

LPC-24F02

LPC-26F02

Part No.

LPC-28F02

LPC-30F02

LPC-34F02

LPC-36F02

LPC-44F02

Mating connectors:

LPC series cable crimping type female contacts

Accessories:

Polarization keys: LPC-PK

Mating connectors:

LPC series of male connectors

Others

Wire

wrapping Crimping Soldering

0.3 REF.

6.5

IDC

Press-in

SMT

Through

hole

LPC-30F02 Related Products

	LPC-30F02	LPC-36F02	LPC-14F02	LPC-34F02	LPC-6F02	LPC-8F02
Description	Board Connector, 30 Contact(s), 2 Row(s), Female, Crimp Terminal, ROHS COMPLIANT	Board Connector, 36 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Black Insulator, Plug, ROHS COMPLIANT	Board Connector, 14 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Black Insulator, Plug, ROHS COMPLIANT	Board Connector, 34 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Black Insulator, Plug, ROHS COMPLIANT	Board Connector, 6 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Black Insulator, Plug, ROHS COMPLIANT	Board Connector, 8 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Black Insulator, Plug, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	30	36	14	34	6	8
Maker	Honda Tsushin Kogyo Co., Ltd.	-	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.
ECCN code	EAR99	EAR99	EAR99	EAR99	-	-
Other features	-	NONE	NONE	NONE	NONE	NONE
body width	-	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch
subject depth	-	0.268 inch	0.268 inch	0.268 inch	0.268 inch	0.268 inch
body length	-	1.417 inch	0.551 inch	1.339 inch	0.236 inch	0.315 inch
Body/casing type	-	PLUG	PLUG	PLUG	PLUG	PLUG
contact mode	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Insulation resistance	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	-	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	-	POLYPHENYLENE OXIDE	POLYPHENYLENE OXIDE	POLYPHENYLENE OXIDE	POLYPHENYLENE OXIDE	POLYPHENYLENE OXIDE
Plug contact pitch	-	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	-	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Guideline	-	UL	UL	UL	UL	UL
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
UL Flammability Code	-	94V-0	94V-0	94V-0	94V-0	94V-0
