PCS-XE68LFDG1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PCS-XE68LFDG1

PCS-XE68LFDG1: DescriptionTelecom and Datacom Connector, 68 Contact(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

PCS-XE68LFDG1 Overview

Telecom and Datacom Connector, 68 Contact(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT

PCS-XE68LFDG1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	68

Preview

Download Datasheet

View All

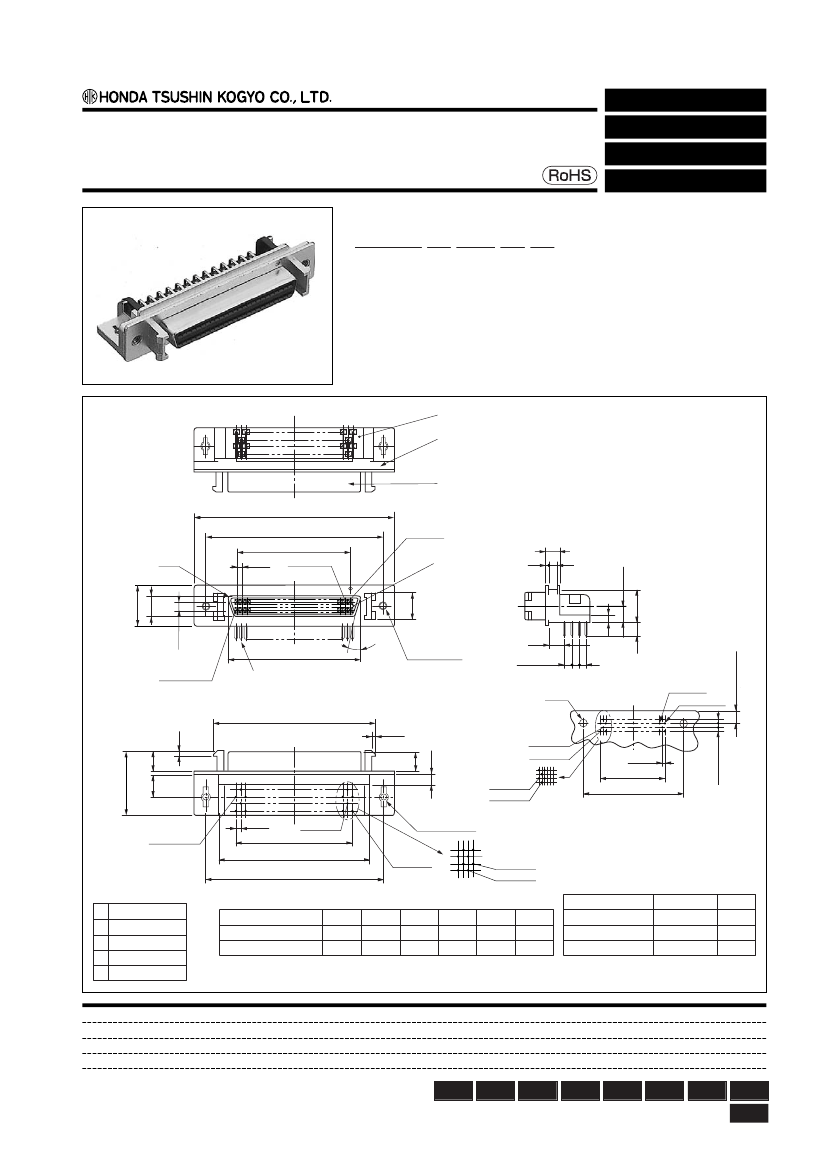

1.27 mm pitch connector

Right-angle through hole type female connector for PCB

PCS-XE( )LFD( )( )+

●

Configuration of product Part No.

For PCB

Right-angle Through hole

SCSI-II

PCS-XE ( ) LFD ( ) ( )+

➀

➁

➂

➃

➄

➀

Series name

➄

Contact plating

➁

No. of contacts: 50 or 68

Blank: Min. 0.2

μm

Gold plating

➂

Type of connector

G1 : Min. 0.76

μm

Gold plating

LFD: Right-angle through hole type,

female

➃

Screw size

Blank: M2.5≈0.45 (standard)

: #4-40UNC

U2 : #2-56UNC

™

4-R1

1.27

POS.#2

POS.#1

3.6

10.5

5.5

4.37

3.4

0.8

2.54

15˚

Screws size

4.0

1.905≈3

8.47

LAST POS.

∞

øG

±0.1

ø0.8

±0.06

LAST POS.

1.5

2.8

5.905 5.5

5.4

1.27

LAST POS.

POS.#2

Screws size

POS.#1

POS.#2

For 68-contact

Recommended PCB layout

connector

(Connector side)

t = 1.6 mm

±0.1

POS.#1

●

Components

➀

Bracket

➁

Shell A

➂

Shell B

➃

Insulator

➄

Contacts

POS.#1

POS.#2

For 68-contact connector

34.7

46.13

42.29

53.72

39.28

50.71

Part No.

PCS-XE( )LFD( )+

PCS-XE( )LFDU( )+

Screws size

M2.5≈0.45

#4-40UNC

øG

2.8

3.05

2.5

●

Dimensions

Part No.

PCS-XE50( )LFD( )( )+

PCS-XE68( )LFD( )( )+

52.5

63.9

46.5

57.9

30.48

41.91

PCS-XE( )LFDU2( )+

#2-56UNC

Because some combinations of “Configurations of Product Part No.”, are under

consideration for development, please contact us for availability details.

Mating connectors:

PCS-XE series IDC type male connector for cable

Others

Wire

wrapping Crimping Soldering

1.905

1.27

±0.05

POS.#2

POS.#1

≈3

Through

hole

0.85

IDC

Press-in

SMT

5.705 REF.

PCS-XE68LFDG1 Related Products

	PCS-XE68LFDG1	PCS-XE68LFDG1+	PCS-XE68LFDU2G1	PCS-XE68LFDU2G1+	PCS-XE68LFDUG1	PCS-XE68LFDUG1+
Description	Telecom and Datacom Connector, 68 Contact(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 68 Contact(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 68 Contact(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 68 Contact(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 68 Contact(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT	Telecom and Datacom Connector, 68 Contact(s), Female, Right Angle, Solder Terminal, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	68	68	68	68	68	68
