1223-10-01B-H29 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1223-10-01B-H29

1223-10-01B-H29: DescriptionCard Edge Connector, 10 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size198KB，1 Pages; ManufacturerNeltron Industrial Company Ltd; Environmental Compliance

Download Datasheet Parametric Compare View All

1223-10-01B-H29 Overview

Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,

1223-10-01B-H29 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Neltron Industrial Company Ltd
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STAGGERED CONFIGURATION
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

Neltron

Connectors

RoHS Compliant

1223-01-H29 Series

1.00mm FPC/FFC SMD

Top Entry Type

TUV

SUD

TUV

SUD

TUV

SUD

Specifications

1. Current Rating: 1.0A AC/DC.

2. Voltage Rating: 100V AC/DC.

3. Contact Resistance: 30m ohm. max.

4. Insulation Resistance: 100M ohm. Min.

5. Withstanding Voltage: 500V AC for one minute.

6. Operating Temperature Range: -25°C to +105°C.

-H

-C

-X

X-

-H

-X

X-

-H

-X

-C

X-

-C

Material and Finish

-X

X-

-H

-X

X-

1. Insulator: High Temperature Material (UL94V-0).

2. Contact: Phosphor Bronze.

3 . Plating: Tin Plated .

-X

X-

Feature

-H

1. Design for Digital Cameras, Mobile Phones,MP3,MP4,

MP5,Home Appliances, Aviation Electronics, Automobile

Electronics and Computer(PC) Peripherals.

Dim.A±0.10

Dim. B ±0. 10

Dim. C ±0. 15

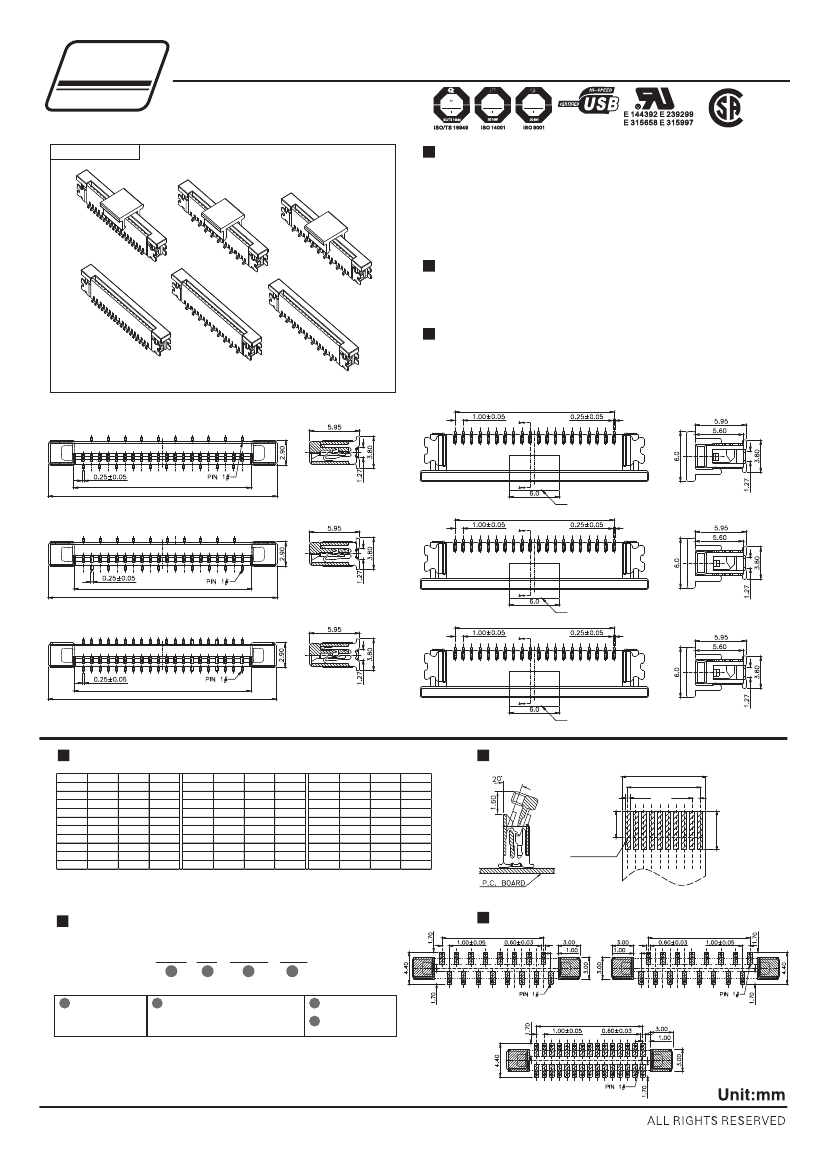

P/N: 1223-XX-01B-H29

Cap in the center

CP Type

Dim.A±0.10

01B Type

Dim. B ±0. 10

Dim. C ±0. 15

P/N: 1223-XX-01A-H29

CP Type

Cap in the center

01A Type

Dim.A±0.10

Dim. B ±0. 10

Dim. C ±0. 15

P/N: 1223-XX-01-H29

Cap in the center

CP Type

Engineering Dimension

Circuits

Dim. A

2.00

3.00

4.00

5.00

6.00

7.00

8.00

9.00

10.00

11.00

Dim.B

4.20

5.20

6.20

7.20

8.20

9.20

10.20

11.20

12.20

13.20

Dim. C

10.40

11.40

12.40

13.40

14.40

15.40

16.40

17.40

18.40

19.40

Circuits

Dim. A

12.00

13.00

14.00

15.00

16.00

17.00

18.00

19.00

20.00

21.00

Dim.B

14.20

15.20

16.20

17.20

18.20

19.20

20.20

21.20

22.20

23.20

Dim. C

20.40

21.40

22.40

23.40

24.40

25.40

26.40

27.40

28.40

29.40

Circuits

Dim. A

22.00

23.00

24.00

25.00

26.00

27.00

28.00

29.00

30.00

31.00

Dim.B

24.20

25.20

26.20

27.20

28.20

29.20

30.20

31.20

32.20

33.20

Dim. C

30.40

31.40

32.40

33.40

34.40

35.40

36.40

37.40

38.40

39.40

FPC Dimension Reference

1.0X(PIN+1)±0.10

1.0X(PIN-1)±0.10

0.70

1.00

(2.30)

Contact Line

Thickness: 0.30 ±0. 03

FPC Dimension Reference

Ordering Information

Recommended PCB Layout

Dim.A±0.10

1223-XX-01-H29-CP

No. Of Contacts

Height: 2.90mm

Blank: Standard

CP: With Cap

01: Vertical Connector Type

01A: Vertical Connector A Type

01B: Vertical Connector B Type

P/N: 1223-XX-01A-H29

Dim.A±0.10

P/N: 1223-XX-01B-H29

No. of contacts please consult to our sales dept.

P/N: 1223-XX-01-H29

2017-2026

(2.70)

1223-10-01B-H29 Related Products

	1223-10-01B-H29	1223-10-01-H29	1223-10-01A-H29-CP	1223-19-01-H29-CP	1223-16-01-H29	1223-16-01-H29-CP	1223-16-01A-H29	1223-16-01A-H29-CP	1223-16-01B-H29
Description	Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,	Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,	Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,	Card Edge Connector, 19 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,	Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,	Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,	Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,	Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,	Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	1 mm	2 mm	1 mm	1 mm	1 mm	2 mm	2 mm	2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	10	10	10	19	16	16	16	16	16
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Other features	STAGGERED CONFIGURATION	-	STAGGERED CONFIGURATION	-	-	-	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION
