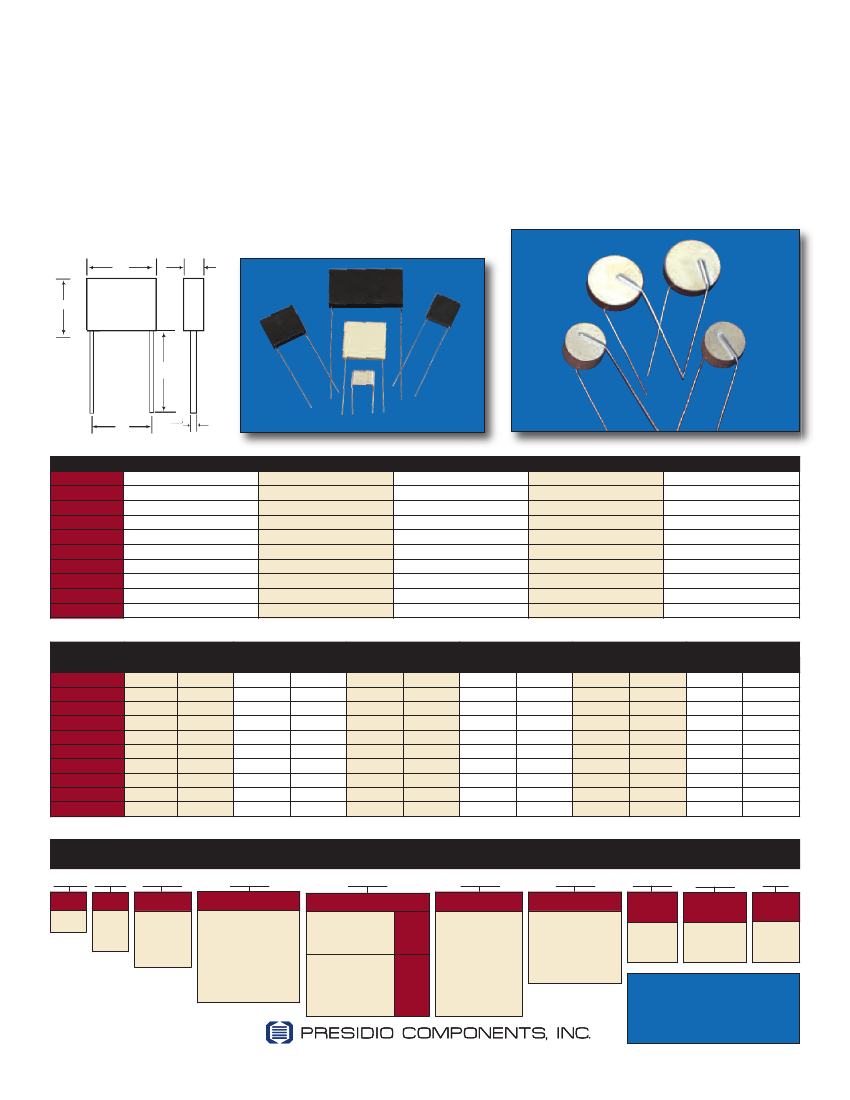

HIGH TEMPERATURE HIGH VOLTAGE
RADIAL LEADED CAPACITORS (RT)
XHT and NPO DIELECTRIC
Consult factory for requirements above 250°C
SPECIFICATIONS
MECHANICAL:
Case:
DAP up to 220°C
Code B
Code P
PEEK up to 240°C
Uncoated up to 250°C Code U
Leads: Solder coated copper clad steel is standard;
other types available
L
T
ALSO AVAILABLE
High Temperature High Voltage Disc Capacitors
Call Factory for More Information
W
1.25
Min.
LS
.025
± .002
LD
High Temperature High Voltage Radial Leaded Caps
DIMENSIONS (Inches)
SIZE*
RT1814
RT1824
RT2225
RT2824
RT3933
RT4844
RT5854
RT6864
RT9650
RT13565
L (Max.)
0.300
0.300
0.350
0.400
0.500
0.600
0.700
0.800
1.100
1.450
W (Max.)
0.200
0.300
0.300
0.300
0.400
0.500
0.600
0.700
0.600
0.720
T (Max.)
0.200
0.200
0.200
0.200
0.200
0.200
0.200
0.200
0.200
0.200
LS (±.032)
0.200
0.200
0.250
0.300
0.400
0.500
0.600
0.700
0.980
1.375
LD (±.002)
0.025
0.025
0.025
0.025
0.025
0.025
0.025
0.025
0.025
0.025
MAXIMUM CAPACITANCE (µF)
WVDC**
SIZE*
RT1814
RT1824
RT2225
RT2824
RT3933
RT4844
RT5854
RT6864
RT9650
RT13565
25V
X7R
.47
.82
1.2
1.5
2.7
5.0
7.8
12
15
–
NPO
.022
.045
.056
.070
.16
.18
.27
.60
.68
–
X7R
.33
.25
1.0
1.2
2.5
4.0
6.8
9.5
10
–
50V
NPO
.018
.033
.047
.056
.12
.20
.30
.44
.47
–
X7R
.22
.50
.60
.85
1.5
2.0
4.5
6.0
6.8
–
100V
NPO
.012
.024
.033
.040
.085
.14
.21
.31
.34
–
XHT
.10
.20
.25
.33
.60
1.2
1.8
2.5
2.7
4.7
200V
NPO
.0075
.014
.020
.022
.050
.082
.12
.18
.20
.36
XHT
.075
.15
.20
.25
.50
.82
1.2
1.8
2.0
3.9
500V
NPO
.0035
.0068
.0090
.011
.024
.039
.060
.085
.095
.17
XHT
.012
.024
.032
.040
.080
.16
.25
.35
.39
.70
1000V
NPO
.0010
.0020
.0027
.0036
.0075
.014
.022
.030
.033
.060
* Contact factory for additional case sizes or special requirements
** WVDC = Working Voltage Direct Current
HOW TO ORDER RT RADIAL LEADS
RT
PREFIX
RT
1814
See
Above
SIZE
*
XHT
DIELECTRIC
NPQ
**
NPO
XHT
X7R
*
* Contact factory for
other sizes and special
requirements
** Contact factory regarding
NPQ dielectric
Two significant
figures followed by
the number of zeros.
Example:
100 = 10 pF
101 = 100 pF
102 = 1000 pF
103 = .01 µF
CAPACITANCE CODE
804
K
F = ± 1% ≥ 10pF
G = ± 2% ≥ 10pF
J = ± 5% ≥ 10pF
=
=
=
=
=
± 10%
-10% / +20%
± 20%
+80% / -20%
+100% / -0%
TOLERANCE CODE
NPQ
**
NPO
ONLY
2
1
2
3
4
5
6
9
VOLTAGE CODE
=
=
=
=
=
=
=
25 VDC
50 VDC
100 VDC
200 VDC
300 VDC
500 VDC
1000 VDC
B
Molded Box
(Encapsulated)
B = Up to 220°C
P = Up to 240°C
U = Uncoated
CASE
LEAD
SPACING
(LS)
See
Above
200
R
RoHS
K
L
M
Z
P
R = RoHS
Compliant
DESIGN-IN
CODE
See
Page 15
(F)
ALL
***
***
HIGHER
VOLTAGES
AVAILABLE
20KV and Above
7169 Construction Court, San Diego, CA 92121 USA • Tel: 858-578-9390 • Fax: 800-538-3880 or 858-578-6225
www.presidiocomponents.com • HT@presidiocomponents.com
13
PRESIDIO COMPONENTS DESIGN-IN CODES
