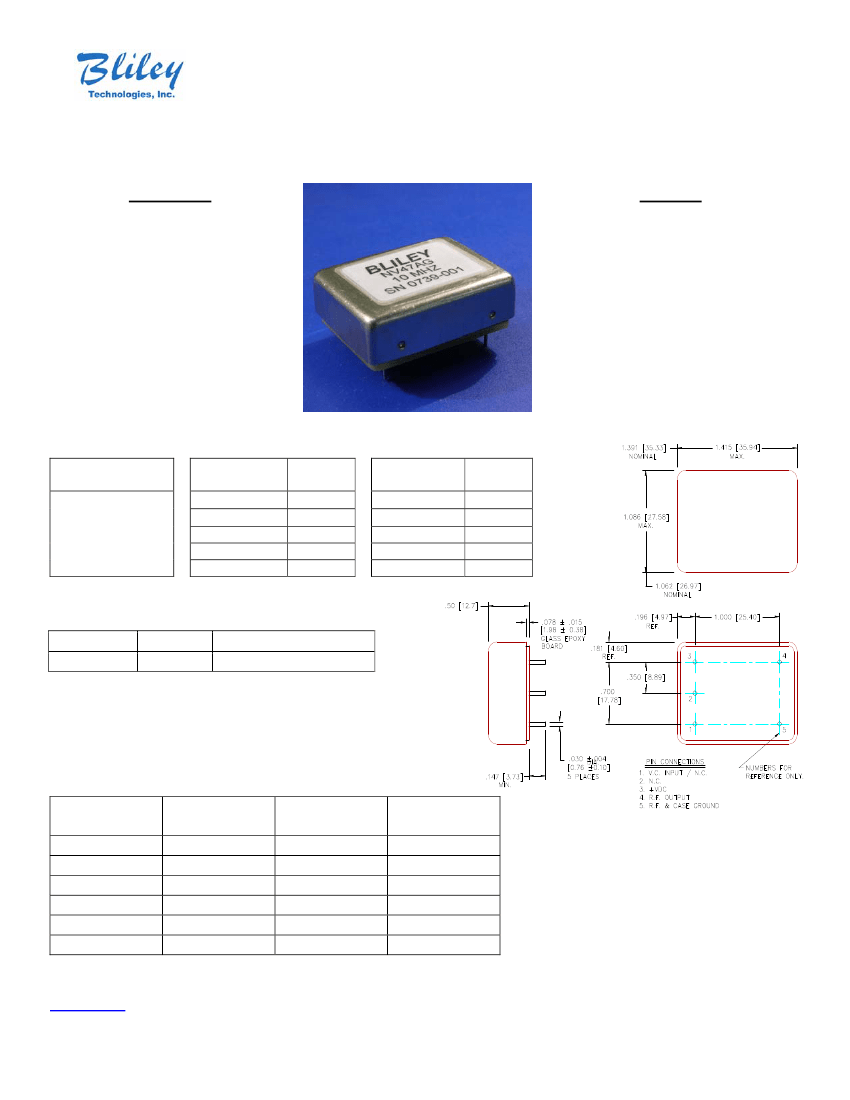

Ultra Low Profile
OCXO
Description:
Description
The NV47AG Super Single
Ovenized Crystal Oscillator
Series provides a stable
frequency reference at the
lowest available standard height
in the market for base stations,
test equipment, synthesizers,
and digital switching
applications.
•
•
•
•
•
•
•
NV47AG Series
Features:
Less than .5 inch height
Stability as low as +/- 5.0 ppb
Available in frequencies from 5
to 13 MHz
CMOS and Sine Wave output
5 or 12 volt supply
RoHS-6 / Lead-free compliant
available
Phase Noise Options
Frequency Range, Operating Temperature, and Frequency Stability:
Frequency
Range
Operating
Temperature
-20 to +70
°C
-40 to +85
°C
Product
Code
A
B
Frequency
Stability
+/- 5.0 ppb
+/- 10.0 ppb
Product
Code
A
B
5 to 13 MHz
•
+/- 5ppb is not available with -40 to +85° C operating temperature range
Aging:
(typical at 10 MHz after 30 days continuous operation)
Frequency
10 MHz
Timeframe
1 Year
Aging
Less than +/- 50 ppb
Phase Noise:
Frequency
Offset
1 Hz
10 Hz
100 Hz
1 KHz
10 KHz
100 KHz
Option A
Square Wave
-85 dBc/Hz
-115 dBc/Hz
-145 dBc/Hz
-150 dBc/Hz
-155 dBc/Hz
-155 dBc/Hz
Option B
Sine Wave
-90 dBc/Hz
-120 dBc/Hz
-150 dBc/Hz
-155 dBc/Hz
-160 dBc/Hz
-160 dBc/Hz
Option C
Sine Wave
-95 dBc/Hz
-125 dBc/Hz
-155 dBc/Hz
-160 dBc/Hz
-165 dBc/Hz
-165 dBc/Hz
Options B and C not available with square wave out.
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 1 of 4
Tel
(814) 838-3571
Rev 1.2
Ultra Low Profile
OCXO
Supply Voltage & Power Consumption:
Supply Voltage
Power Consumption
Product Code
5V +/-5%
4.0W turn on power
1.5 steady state power
A
12V +/-5%
4.0W turn on power
1.5 steady state power
B
NV47AG Series
Output Waveform:
HCMOS
Waveform Description
Output Level
Sine Wave
Waveform
Output Level
Description
Output Power
8 dBm typ.
Harmonics
-30 dBc
Spurious
-75 dBc
Option B
HCMOS Output Levels (15pF load)
“0”<0.5V;”1”>4.5V
Rise/Fall Time
<10nS (10% to 90%)
Duty Cycle
45% to 55% @ 50% Logic 1
Option A
Pulling Range:
Turning Range (0V to 4V on
Vcontrol)
Product Code
Environmental:
Storage Temperature
-55 to +125° C
None
Option A
+/- 0.5 ppm min.
Option B
+/-1 ppm min
Option C
Ordering Options:
Operating
Frequency
Temp
Stability
A
A
B
B
Phase
Noise
A
B
C
Supply
Voltage
A
B
Output
Waveform
A
B
Pulling
Range
A
B
C
Operating
Frequency
10M0
10M0
10M0
10M0
NVG47AG A B B A B B 10M0
Product Selection Code (refer to the above example):
This part is RoHS compliant, -20 to +50C, +/- 10 ppb frequency stability, 5 volt supply, +/- 0.5 ppm pull
range, operating frequency of 10MHz, sine waveform, and ‘B’ phase noise spec.
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 2 of 4
Tel
(814) 838-3571
Rev 1.2
