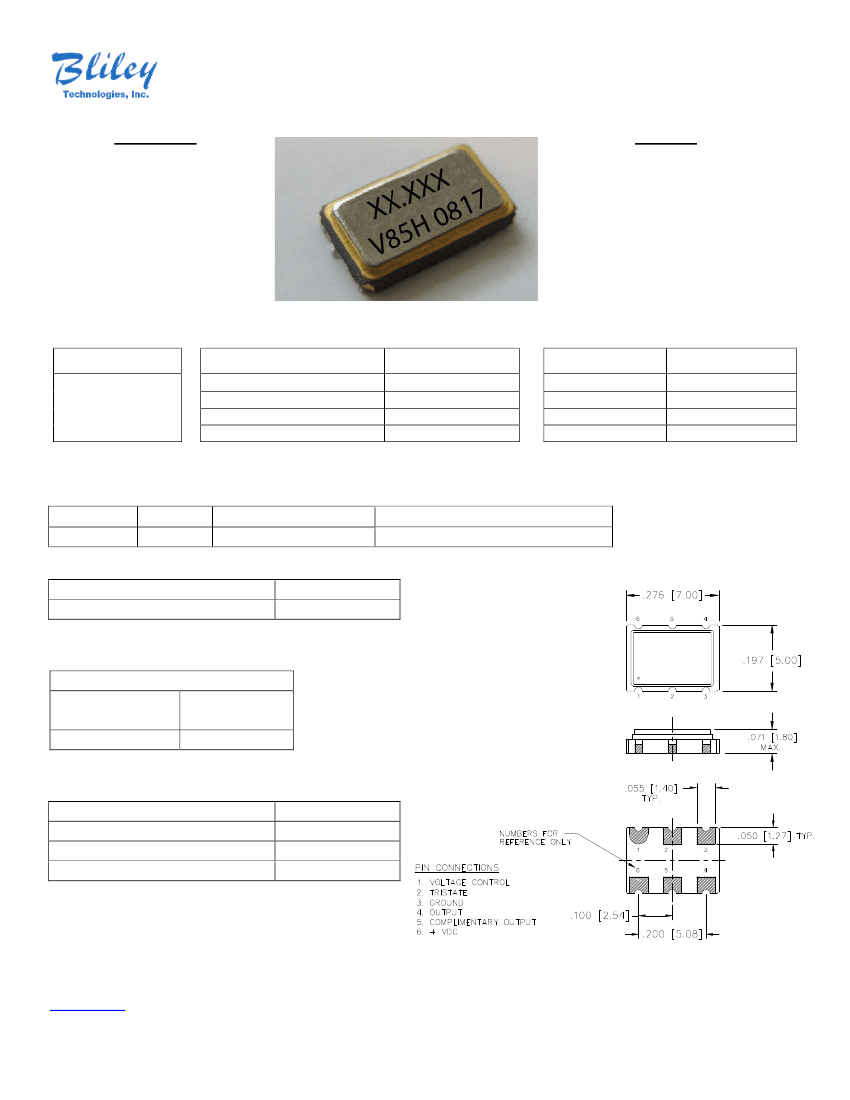

7.0 mm x 5.0 mm VCXO
Description:
The V85H Crystal Oscillator
(VCXO) Series products provide a
wide range of options in
temperature stability, pullability,
and very high operating frequency
range in a 7.0 x 5.0 mm ceramic
package.
V85H series
Features:
Available in frequencies from
1.5MHz to 700 MHz.
•
•
•
•
•
Tri-state Enable/Disable
Hermetically sealed ceramic
SMD package
PECL / LVDS
RoHS-6/Leadfree compliant
Frequency Range
Frequency
Operating Temperature
Operating Temperature
Product Code
Frequency Stability
Freq. Stability
Product Code
A
A
-10 to +60C
+/- 25 ppm
1.5 to 700 MHz
B
B
0 to +70C
+/- 50 ppm
C
-20 to 70C
D
-40 to 85C
Frequency stability includes 25C tolerance, drift over temperature, change versus voltage and load, 20 year aging, shock
and vibration
Aging:
(typical at 622.08MHz after 30 days continuous operation)
Frequency Timeframe
622.08 MHz 1st Year
Aging
+/- 5.0ppm
Product Code
N/A
Supply Voltage (Vs):
Power Supply (Vs)
Product Code
3.3 Vdc +/-10%
N/A
Supply Voltage Sensitivity ( +/- 10% ) : +/- 2 ppm max. frequency change
Frequency Pulling Range:
3.3 volt
0 to 3.3v
Product Code
on Pin 1
+/-100 ppm min
N/A
Current Consumption ( I
DD
):
I
DD
( at 3.3V )
Frequency Range ( MHz )
1.5 to 700.000
PECL / LVDS
mA
100 / 80
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 1 of 4
Tel
(814) 838-3571
Rev 1.4
7.0 mm x 5.0 mm VCXO
Environmental:
Storage Temperature
-55 to +125
°C
V85H series
Output Waveform:
PECL
Product Code
A
At 3.3 V
Output Logic 1
2.275Vmin
Output Logic 0
1.680Vmax
Rise/Fall Time ( nS ) 1 max
Start-up Time: 3 mS max.
Tri-state function Pin 2:
Pin 2 = Ouput Active with 2.5 V or greater
LVDS
B
At 3.3 V
1.6Vmax
0.9Vmin
1 max
Ordering Options:
Product Family Operating
Temperature
Temperature Stability
V85H
A
A
V85H
B
B
V85H
C
V85H
D
Output Type
A
B
Operating
Frequency
XXX.XXXMHz
XXX.XXXMHz
XXX.XXXMHz
XXX.XXXMHz
V85H C A A
Part Number Build Example
**Consult Bliley sales if other options required
325MHz
RoHs compliant ; -20 to 70C ; +/- 25 ppm; PECL outputs and 325 MHz nominal operating frequency.
How to Order This Product:
Contact Bliley Technologies with Product Selection Code from Ordering Options Section above.
www.bliley.com
2545 West Grandview Blvd Erie, PA. 16506
Page 2 of 4
Tel
(814) 838-3571
Rev 1.4
