DATA SHEET
SEMICONDUCTOR

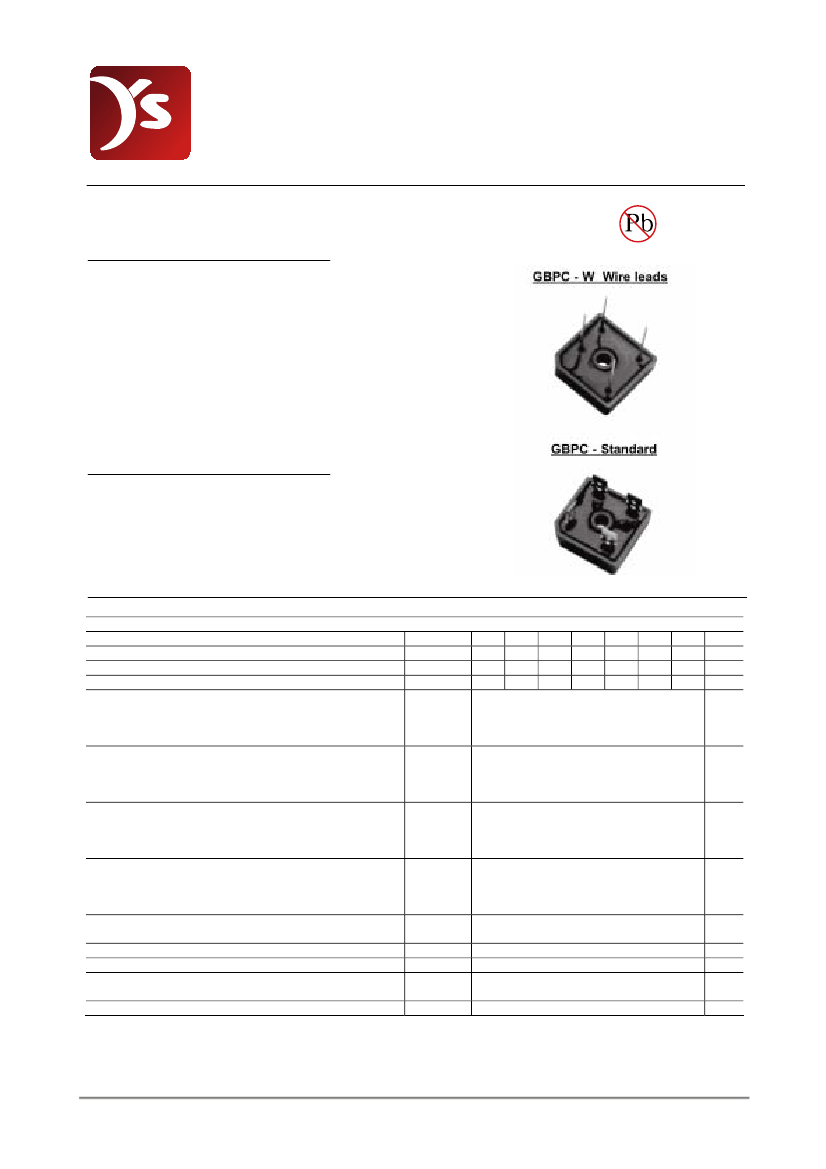

GBPC12,15,25 AND 35 Series
GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Reverse Voltage - 50 to 1000 Volts Current Voltage - 12.0 to 35.0 Amperes
FEATURES
•The
plastic package has Underwriters Laboratory Flammability Classification 94V-0
•This
series is UL recognized under component index, file number E54214
•Integrally
molded heatsink provides very low thermal resistance for maximum heat
dissipation
•Universal
3-way terminals; snap-on, wire wrap-around, or P.C.B. mounting
•High
forward surge current capabilities
•Glass
passivated chip junctions
•Typical
IR less than 0.3mA
•High
temperature soldering guaranteed:
260°C/10 seconds at 5lbs. (2.3 kg) tension
•High
temperature soldering : 260
O
C / 10 seconds at terminals
•Pb
free product at available : 99% Sn above meet RoHS
environment substance directive request
MECHANICAL DATA
•Case:
Molded plastic with heatsink integrally mounted in the bridge encapsulation
•Terminals:
Either plated 0.25" (6.35mm). Faston lugs or plated copper leads 0.040"
(1.02mm) diameter. Suffix letter "W" added to indicate leads (e.g. GBPC12005W).
•Mounting
Position: See NOTE 3
•Polarity:
Polarity symbols molded on body
•Mounting
Torque: 20 in. - lb. max. Weight: 0.53 ounce, 15 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
VRRM
VRMS
VDC
GBPC12
GBPC15
GBPC25
GBPC35
GBPC12
GBPC15
GBPC25
GBPC35
GBPC12
GBPC15
GBPC25
GBPC35
GBPC12
IF=6.0A
GBPC15 IF=7.5A
GBPC25 IF=12.5A
GBPC35 IF=17.5A
TA=25°C
TA=125°C
005
50
35
50
01
100
70
100
GBPC12, 15, 25, 35
02
04
06
08
200
400
600
800
140
280
420
560
200
400
600
800
12.0
15.0
25.0
35.0
200.0
300.0
300.0
400.0
160.0
375.0
375.0
660.0
10
1000
700
1000
UNITS
Volts
Volts
Volts
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward
rectified output current
(SEE FIG.1)
Peak forward surge current single
sine-wave superimposed on
rated load (JEDEC Method)
Rating (non-repetitive, for t
greater than 1ms and less
than 8.3ms) for fusing
Maximum instantaneous
forward voltage drop per
leg at
I(AV)
Amps
IFSM
Amps
I2t
A2 sec
VF
1.1
Volts
Maximum reverse DC current at rated
DC blocking voltage per leg
RMS isolation voltage from case to leads
Typical junction capacitance per leg (NOTE 1)
Typical thermal resistance per leg (NOTE 2)
GBPC12-25
GBPC35
Operating junction storage temperature range
IR
VISO
CJ
RQJC
TJ, TSTG
5.0
500.0
2500.0
300.0
1.9
1.4
-55 to +150
uA
Volts
pF
°C/W
°C
NOTES:
(1) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
(2) Thermal resistance from junction to case per leg
(3) Bolt down on heat-sink with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency with #10 screw
http://www.yeashin.com
1
REV.02 20110725
DEVICE CHARACTERISTICS
GBPC12,15,25 AND 35 Series

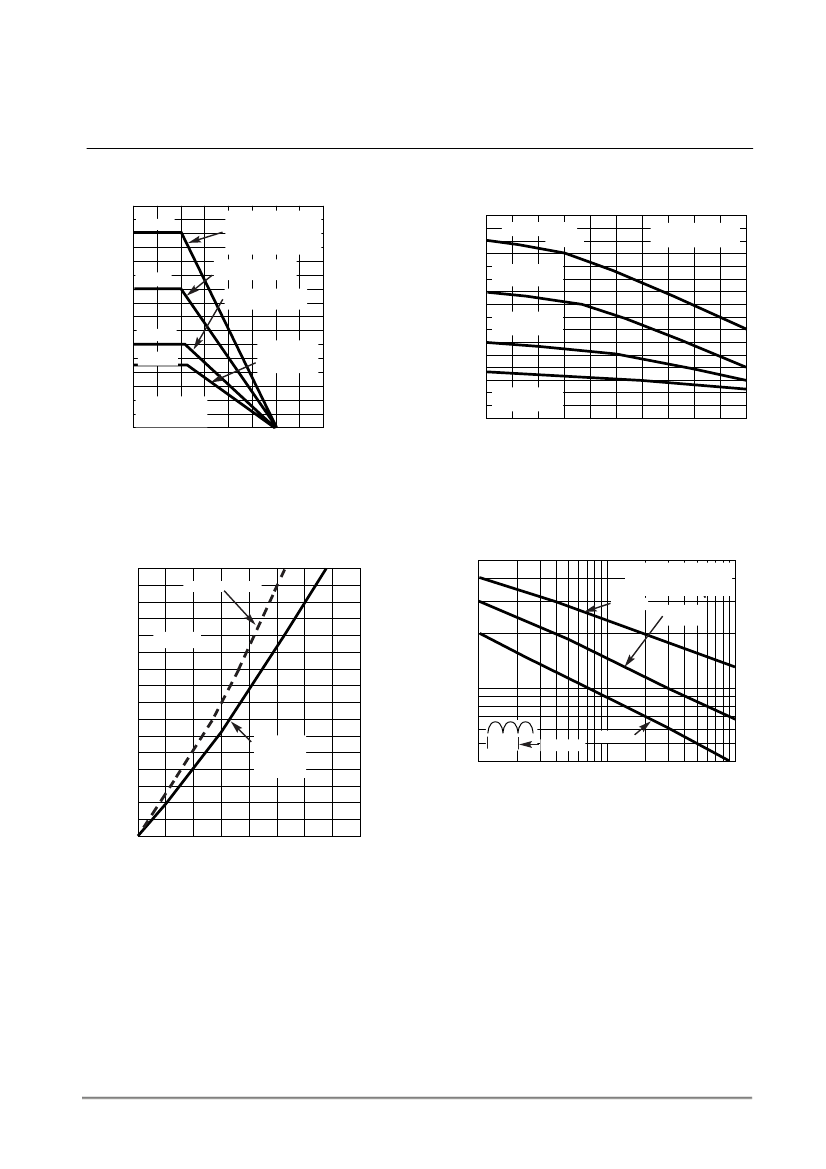

FIG. 1 - MAXIMUM OUTPUT RECTIFIED CURRENT
40
GBPC35
FIG. 2 - MAXIMUM OUTPUT RECTIFIED CURRENT
BRIDGES MOUNTED
on 9 x 3.5 x 4.6”
(22.9 x 8.9 x 11.7cm)
AL. FINNED PLATE
5 x 6 x 4.9”
AL. FINNED PLATE
5 x 4 x 3”
AL. FINNED PLATE
40
RthS-A=0.5 °C/W
35
AVERAGE FORWARD CURRENT,
AMPERES
30
GBPC25
AVERAGE FORWARD CURRENT,
AMPERES
35
30
25
20
15
10
5
0
0
GBPC35
GBPC25
RthS-A=0.5 °C/W
60 H
Z
RESISTIVE OR
INDUCTIVE LOAD
25
20
GBPC15
GBPC15
RthS-A=1.0 °C/W
15
GBPC12
10
5
0
60 Hz RESISTIVE
OR INDUCTIVE
LOAD
6.0 x 2.2 x 2.2”
AL. FINNED
PLATE
GBPC12
RthS-A=1.0 °C/W
0
25
50
75 100 125 150 175 200
10
20
30
40
50
60
70
80
90
100
AMBIENT TEMPERATURE, °C
CASE TEMPERATURE, °C
FIG. 3 - MAXIMUM POWER DISSIPATION
FIG. 4 - MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT PER LEG
80
CAPACITIVE LOAD
500
PEAK FORWARD SURGE CURRENT,
AMPERES
T
J
=T
J
max.
0.5Single Sine-Wave
(JEDEC Method)
GBPC35
GBPC15
GBPC25
AVERAGE POWER DISSIPATION OF BRIDGE,
WATTS
70
60
50
40
30
20
10
0
T
J
=T
J
max.
100
RESISTIVE
OR
INDUCTIVE
LOAD
GBPC12
1.0 CYCLE
1
10
NUMBER OF CYCLES AT 60Hz
100
0
10
20
30
40
AVERAGE OUTPUT CURRENT, AMPERES
http://www.yeashin.com
2
REV.02 20110725
DEVICE CHARACTERISTICS
GBPC12,15,25 AND 35 Series
FIG. 6 - TYPICAL REVERSE LEAKAGE
CHARACTERISTICS PER LEG
FIG. 5 - TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS PER LEG
100
INSTANTANEOUS FORWARD CURRENT,
AMPERES
T
J
=125°C
100
T
J
=150°C
10
INSTANTANEOUS REVERSE CURRENT,
MICROAMPERES
50-400V
600-1000V
10
1
T
J
=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
0.1
1
0.01
0.4
0.6
0.8
1
1.2
1.4
1.6
0.1
T
J
=25°C
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
0.01
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE
VOLTAGE, %
FIG. 7 - TYPICAL JUNCTION CAPACITANCE
PER LEG
600
TRANSIENT THERMAL IMPEDANCE,
°C/W
T
J
=25°C
f=1.0 MHz
Vsig=50mVp-p
FIG. 8 - TYPICAL TRANSIENT THERMAL
IMPEDANCE PER LEG
100
T
J
=25°C
f=1.0 MHz
Vsig=50mVp-p
JUNCTION
,
CAPACITANCE, pF
10
100
1
50
1
10
REVERSE VOLTAGE, VOLTS
100
0.1
0.01
0.1
1
t, HEATING TIME, sec.
10
100
http://www.yeashin.com
3
REV.02 20110725
