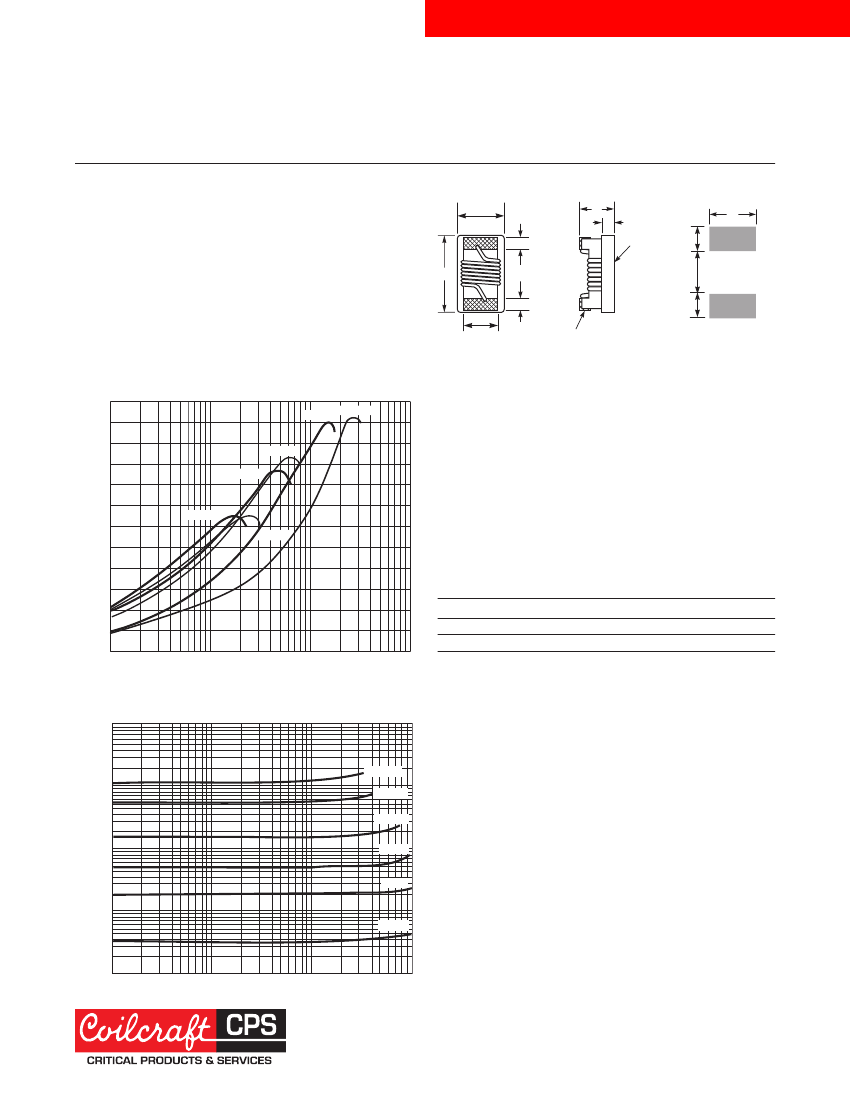

1206 CHIP INDUCTORS
Outgassing Compliant Chip Inductors
AE376RAA
■
Standard tin-lead (Sn-Pb) terminations ensures the best
possible board adhesion. Note: Nickel barrier termination
(tin-lead over tin over nickel over silver-platinum-glass frit,
termination code P) is recommended for hand soldering
applications.
■
Passes NASA low outgassing specifications
■
Exceptionally high Q factors
■
Outstanding self-resonant frequency
■
Tight inductance tolerance
■
High temperature materials allow operation in ambient
temperatures up to 155°C.
■
Qualified per Group B MIL-STD-981
B
overall
F
A
G
F
E
terminal
Terminal wraparound:
approx 0.015/0,38 both ends
(Not present on gold terminations.)
C
D
Pick and
place
material
I
J
I
H
Recommended
Land Pattern
Typical Q vs Frequency
120
110
100
90
80
15 nH
3.3 nH
Core material
Ceramic
Terminations
Tin-lead (63/37) over tin over nickel over silver-plati-
num-glass frit. Other terminations are also available.
Ambient temperature
–55°C to +125°C with
Imax
current
Maximum part temperature
+155°C (ambient + temp rise).
Storage temperature
Component: –65°C to +155°C.
Tape and reel packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
2000 per 7″ reel
Plastic tape: 8 mm wide, 0.3 mm thick, 4 mm pocket spacing,
1.6 mm pocket depth
A max B max C max
0.140
3,56
0.085
2,16
0.060
1,52
D ref
0,51
E
1,42
F
0,51
G
2,03
H
I
J
0.020 0.056 0.020 0.080 0.076 0.040 0.070 inches
1,93 1,02 1,78 mm
33 nH
150 nH
Q Factor
70
60
50
40
30
20
10
0
10
680 nH
330 nH
100
1000
10000
Frequency (MHz)
Typical L vs Frequency
10000
1200 nH
1000
560 nH
150 nH
100
47 nH
18 nH
10
3.3 nH
Note: Dimensions are before solder application. For maximum overall
dimensions including solder, add 0.0025 in / 0,064 mm to
B
and
0.006 in / 0,15 mm to
A
and
C.
Inductance (nH)
1
1
10
100
1000
Frequency (MHz)
®
Document AE104-1 Revised 09/05/18
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2018
1206 CHIP INDUCTORS
AE376RAA Series (1206)
Part
number
1
Inductance
2
(nH)
3.3 @ 100 MHz
6.8 @ 100 MHz
10 @ 100 MHz
12 @ 100 MHz
15 @ 100 MHz
18 @ 100 MHz
22 @ 100 MHz
27 @ 100 MHz
33 @ 100 MHz
39 @ 100 MHz
47 @ 100 MHz
56 @ 100 MHz
68 @ 100 MHz
82 @ 100 MHz
100 @ 100 MHz
120 @ 100 MHz
150 @ 100 MHz
180 @ 50 MHz
220 @ 50 MHz
270 @ 50 MHz
330 @ 50 MHz
390 @ 50 MHz
470 @ 50 MHz
560 @ 35 MHz
620 @ 35 MHz
680 @ 35 MHz
750 @ 35 MHz
820 @ 35 MHz
910 @ 35 MHz
1000 @ 35 MHz
1200 @ 35 MHz
Percent
tolerance
5
5
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
Q
min
3
SRF min
4
(MHz)
>5000
4380
3440
2560
2520
2260
2120
1800
1800
1800
1500
1400
1180
1120
1040
1040
920
780
700
630
570
540
500
440
440
410
400
370
350
360
320
DCR max
5
(Ohms)
0.050
0.070
0.080
0.100
0.100
0.100
0.100
0.110
0.110
0.120
0.130
0.140
0.260
0.210
0.260
0.260
0.310
0.430
0.500
0.560
0.620
0.750
1.30
1.34
1.60
1.58
2.20
1.82
2.85
2.80
3.20
Imax
(mA)
900
900
900
900
900
900
900
900
900
900
900
900
600
700
650
620
720
580
550
470
370
370
320
300
270
260
220
240
190
190
170
AE376RAA030JPZ
AE376RAA060JPZ
AE376RAA100JPZ
AE376RAA120_PZ
AE376RAA150_PZ
AE376RAA180_PZ
AE376RAA220_PZ
AE376RAA270_PZ
AE376RAA330_PZ
AE376RAA390_PZ
AE376RAA470_PZ
AE376RAA560_PZ
AE376RAA680_PZ
AE376RAA820_PZ
AE376RAA101_PZ
AE376RAA121_PZ
AE376RAA151_PZ
AE376RAA181_PZ
AE376RAA221_PZ
AE376RAA271_PZ
AE376RAA331_PZ
AE376RAA391_PZ
AE376RAA471_PZ
AE376RAA561_PZ
AE376RAA621_PZ
AE376RAA681_PZ
AE376RAA751_PZ
6
AE376RAA821_PZ
AE376RAA911_PZ
6
AE376RAA102_PZ
6
AE376RAA122_PZ
6
29 @ 300 MHz
24 @ 300 MHz
31 @ 300 MHz
40 @ 300 MHz
38 @ 300 MHz
50 @ 300 MHz
50 @ 300 MHz
50 @ 300 MHz
55 @ 300 MHz
55 @ 300 MHz
55 @ 300 MHz
55 @ 300 MHz
48 @ 150 MHz
52 @ 150 MHz
55 @ 150 MHz
53 @ 150 MHz
53 @ 150 MHz
53 @ 150 MHz
51 @ 150 MHz
53 @ 150 MHz
30 @ 35 MHz
31 @ 35 MHz
31 @ 35 MHz
31 @ 35 MHz
32 @ 35 MHz
32 @ 35 MHz
32 @ 35 MHz
31 @ 35 MHz
31 @ 35 MHz
32 @ 35 MHz
32 @ 35 MHz
1. When ordering, please specify
tolerance, termination
and
testing
codes:
Tolerance:
AE376RAA122JPZ
F
= 1%
G
= 2%
J
= 5%
Termination:
See
Notes about terminations
P
= Tin-lead (63/37) over tin over nickel over silver-platinum-
glass frit
S
= Tin-lead (63/37) over leach-resistant silver-platinum-
glass frit
A
= Gold over nickel over moly-mag
C
= Tin-lead (63/37) over gold over nickel over moly-mag
L
= Silver-palladium-platinum-glass frit
Testing:
Z
= Unscreened
H
= Group A screening per Coilcraft CP-SA-10001
T
= Screening per MIL-STD-981
U
= Screening per EEE-INST-002
F
= Screening per ESCC 3201
All screening performed to the document’s latest revision
Custom screening also available
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP
4286A impedance analyzer or equivalent with Coilcraft-provided correla-
tion pieces.
3. Q measured using an Agilent/HP 4291A impedance Analyzer with an
Agilent/HP 16197A test fixture or equivalents.
4. SRF measured using an Agilent/HP 8753ES network analyzer or
equivalent and a Coilcraft CCF1297 test fixture.
5. DCR measured on a micro-ohmmeter.
6. Part is not compliant with MIL-STD-981 Family 50, Class S due to wire gauge.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Notes about terminations
For hand soldering applications, the nickel barrier termination (tin-lead over tin
over nickel over silver-platinum-glass frit, termination code P) is recommended.
Exposed gold or tin in the terminations migrates into the solder.
®
Document AE104-2 Revised 09/05/18
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2018
