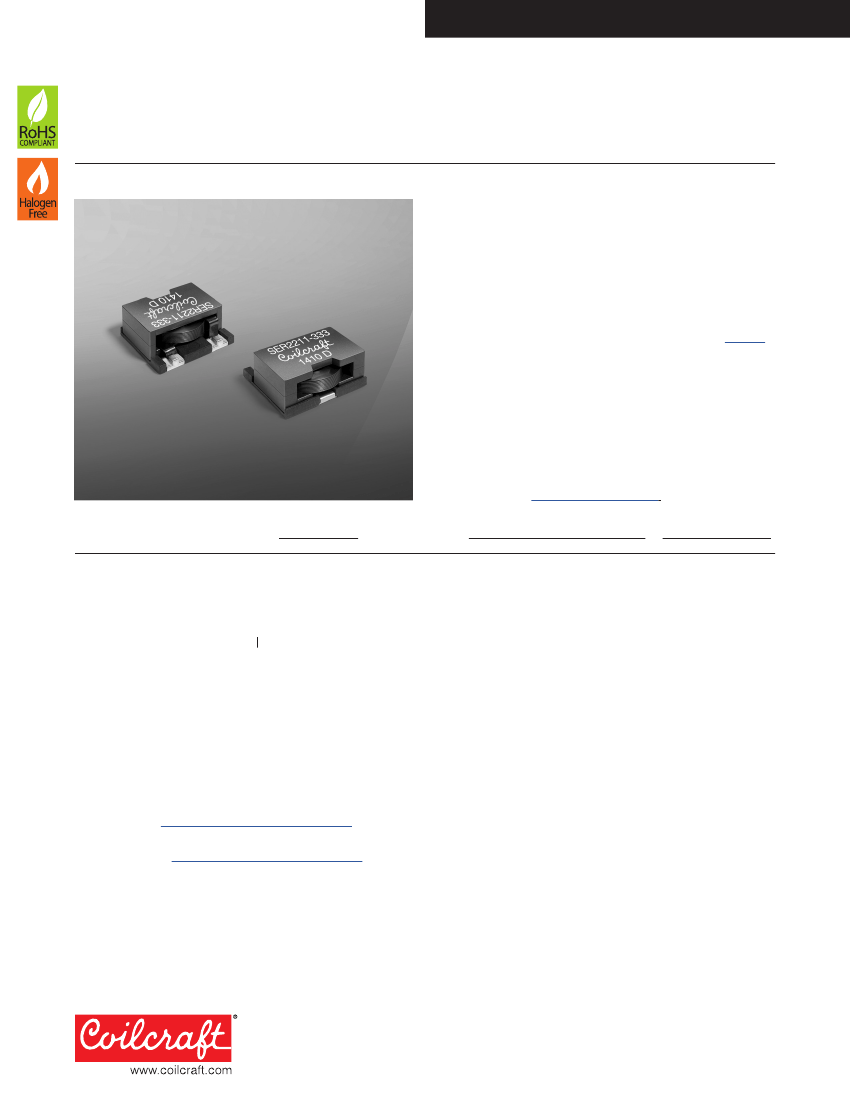

Shielded Power Inductors – SER2211
• Exceptionally high current carrying capability – up to 14.3 Amps.
• Low DC resistance – only 2.3 mOhm.
• Custom values may be available to meet specific applications.
Core material
Ferrite
Environmental
RoHS compliant, halogen free
Terminations
RoHS compliant matte tin over nickel over phos bronze.
Other terminations available at an additional cost.
Weight
12.5 – 13.5 g
Ambient temperature
–40°C to +85°C with (40°C rise)
Irms
current.
Maximum part temperature
+125°C (ambient + temp rise).
Derating.
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
200 per 13″ reel; Plastic tape: 44 mm wide,
0.5 mm thick, 28 mm pocket spacing, 10.2 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Inductance
2
±20% (µH)
8.2
12.2
27.0
33.0
DCR (mOhm)
3
typ
max
2.30
3.15
6.84
8.95
2.76
3.78
8.21
10.7
SRF typ
4
(MHz)
19.7
17.3
12.1
11.3
Isat
(A)
5
20% drop
13.6
11.3
7.7
7.0
Irms
(A)
6
20°C rise 40°C rise
13.9
11.4
9.4
7.6
18.5
16.0
13.1
10.6
Part number
1
SER2211-822MED
SER2211-123MED
SER2211-273MED
SER2211-333MED
10% drop
11.8
9.8
6.7
6.0
30% drop
14.3
11.9
8.1
7.4
1. When ordering, please specify
termination
code:
SER2211-333MED
Termination: E
= RoHS compliant matte-tin over nickel over phos bronze.
Special order:
Q
= RoHS tin-silver-copper (95.5/4/0.5)
or
P
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (200 parts per full reel). Quantities less than
full reel available: in tape (not machine ready) or with
leader and trailer ($25 charge).
2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/
HP 4284A or equivalent.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using an Agilent/HP 4391A impedance analyzer and
an Agilent/HP 16193A test fixture.
5. DC current at which the inductance drops the specified from its value
without current.
Click for temperature derating information.
6. Current that causes a 40°C temperature rise from 25°C ambient. This
information is for reference only and does not represent absolute
maximum ratings.
Click for temperature derating information.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 1084-1
Revised 07/05/18
© Coilcraft Inc. 2018
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 1084 -2
Shielded Power Inductors - SER2211 Series

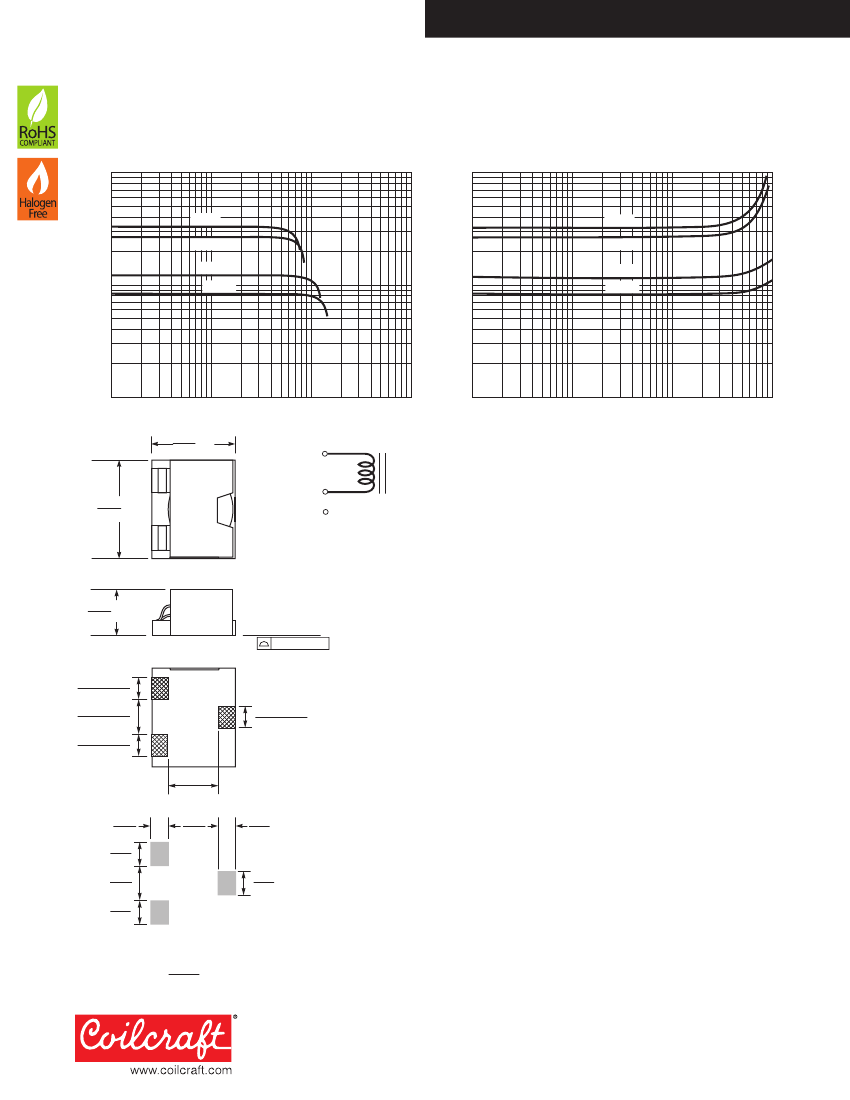

Typical L vs Current
100
33 µH
Typical L vs Frequency
100
33 µH
Inductance (µH)
12.2 µH
10
8.2 µH
Inductance (µH)
27 µH
27 µH
12.2 µH
10
8.2 µH
1
0.1
1
10
100
1
0.01
.01
1
10
Current (A)
0.756
max
19,2
Frequency (MHz)
1
2
3
Terminal 3 is for
mounting stability only.
0.886 max
22,5
0.413
max
10,5
0.006 / 0,152
0.197 ±0.012
5,0 ±0,3
0.322 ±0.012
8,2 ±0,3
0.197 ±0.012
5,0 ±0,3
0.197 ±0.012
5,0 ±0,3
0.452
11,5
0.167
4,25
0.217
5,50
0.307
7,80
0.217
5,50
2
1
0.433
11,0
0.167
4,25
3
0.217
5,50
Recommended
Land Pattern
Dimensions are in
inches
mm
Document 1084-2
Revised 07/05/18
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
© Coilcraft Inc. 2018
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
