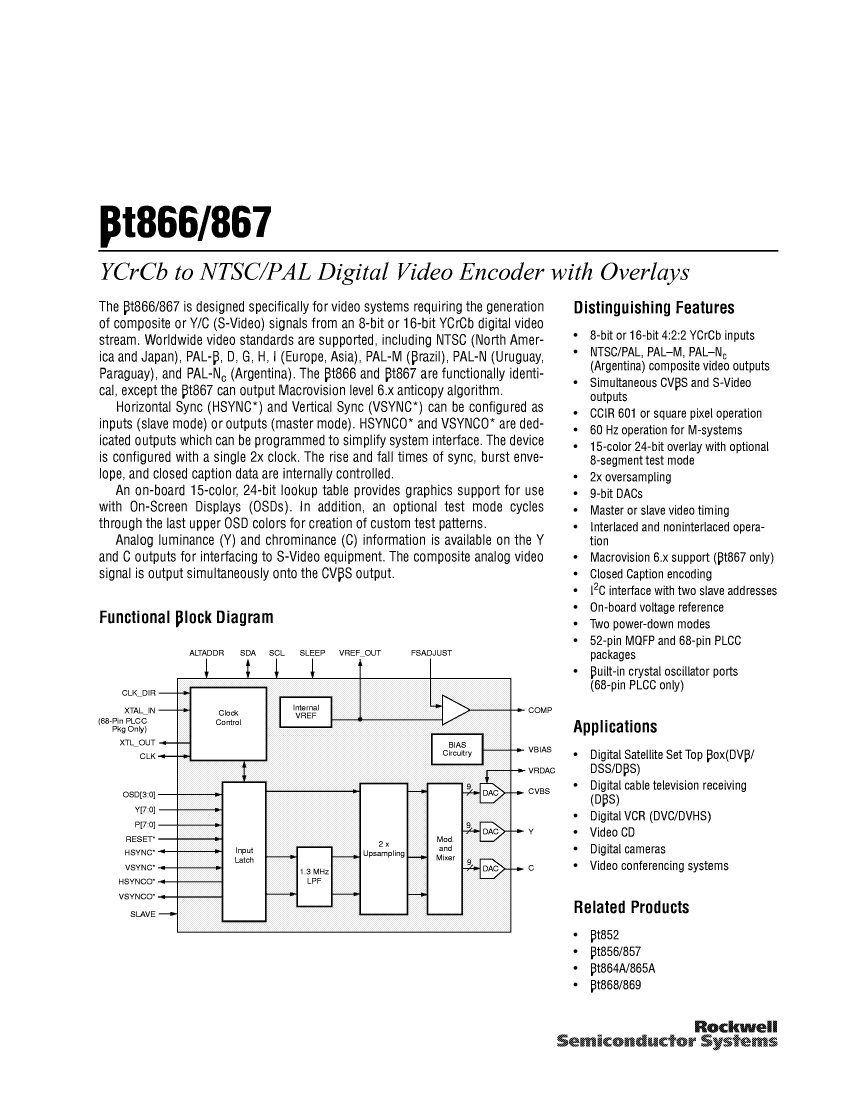

Color Signal Encoder, PQFP52

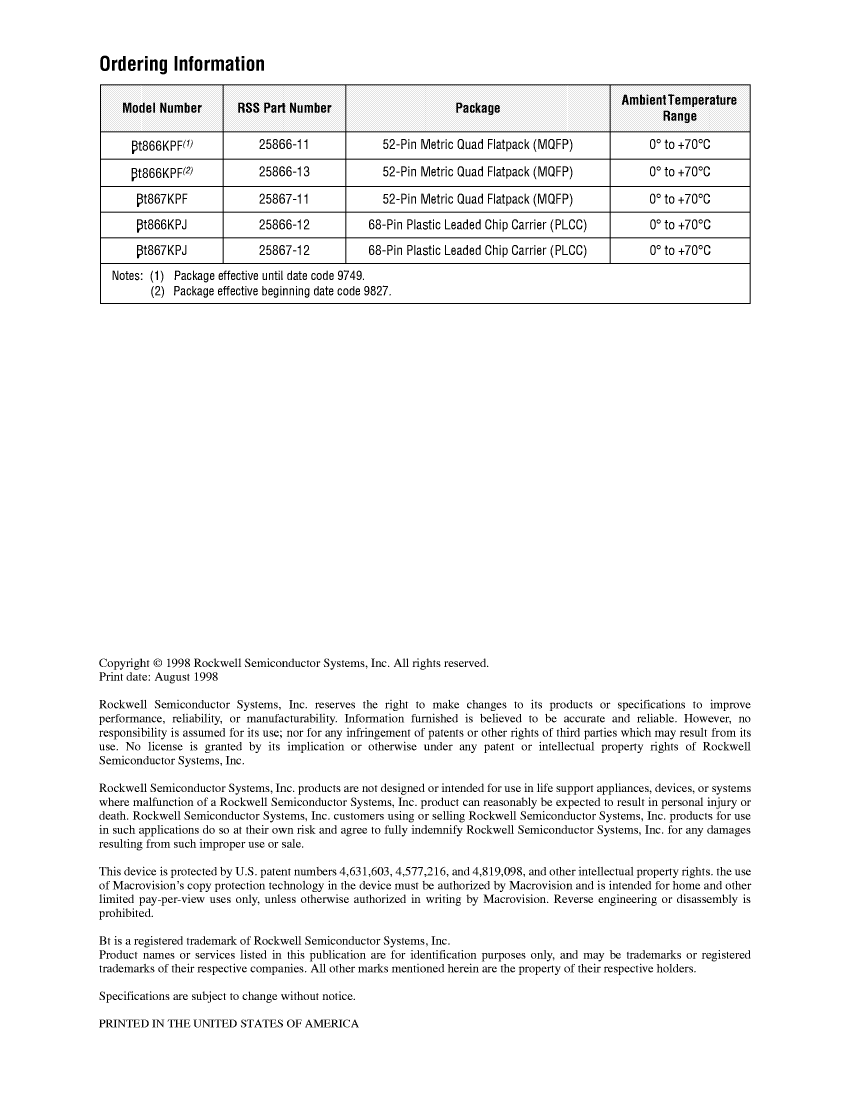

| Parameter Name | Attribute value |
| Maker | CONEXANT |
| Parts packaging code | QFP |
| package instruction | , |
| Contacts | 52 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Commercial integrated circuit types | COLOR SIGNAL ENCODER |
| input type | Y |
| JESD-30 code | S-PQFP-G52 |
| Number of terminals | 52 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| Package shape | SQUARE |
| Package form | FLATPACK |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| surface mount | YES |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal location | QUAD |
| video standards | PAL; NTSC |
| BT866KPF | 25866-12 | 25866-11 | 25866-13 | BT867KPJ | BT867KPF | 25867-11 | 25867-12 | BT866KPJ | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Color Signal Encoder, PQFP52 | Color Signal Encoder, PQCC68, PLASTIC, LCC-68 | Color Signal Encoder, PQFP52, MQFP-52 | Color Signal Encoder, PQFP52, 14 X 14 MM, 2 MM HEIGHT, MQFP-52 | Color Signal Encoder, PQCC68, PLASTIC, LCC-68 | Color Signal Encoder, PQFP52 | Color Signal Encoder, PQFP52, MQFP-52 | Color Signal Encoder, PQCC68, PLASTIC, LCC-68 | Color Signal Encoder, PQCC68 |
| Parts packaging code | QFP | LCC | QFP | QFP | LCC | QFP | QFP | LCC | LCC |
| package instruction | , | QCCJ, | QFP, | QFP, | QCCJ, LDCC68,1.0SQ | , | QFP, | QCCJ, | , |
| Contacts | 52 | 68 | 52 | 52 | 68 | 52 | 52 | 68 | 68 |
| Reach Compliance Code | unknow | unknow | compli | compli | compliant | unknown | compliant | compliant | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Commercial integrated circuit types | COLOR SIGNAL ENCODER | COLOR SIGNAL ENCODER | COLOR SIGNAL ENCODER | COLOR SIGNAL ENCODER | COLOR SIGNAL ENCODER | COLOR SIGNAL ENCODER | COLOR SIGNAL ENCODER | COLOR SIGNAL ENCODER | COLOR SIGNAL ENCODER |
| input type | Y | R-Y; B-Y; Y | R-Y; B-Y; Y | R-Y; B-Y; Y | R-Y; B-Y; Y | Y | R-Y; B-Y; Y | R-Y; B-Y; Y | Y |
| JESD-30 code | S-PQFP-G52 | S-PQCC-J68 | S-PQFP-G52 | S-PQFP-G52 | S-PQCC-J68 | S-PQFP-G52 | S-PQFP-G52 | S-PQCC-J68 | S-PQCC-J68 |
| Number of terminals | 52 | 68 | 52 | 52 | 68 | 52 | 52 | 68 | 68 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | FLATPACK | CHIP CARRIER | FLATPACK | FLATPACK | CHIP CARRIER | FLATPACK | FLATPACK | CHIP CARRIER | CHIP CARRIER |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | J BEND | GULL WING | GULL WING | J BEND | GULL WING | GULL WING | J BEND | J BEND |
| Terminal location | QUAD | QUAD | QUAD | QUAD | QUAD | QUAD | QUAD | QUAD | QUAD |
| video standards | PAL; NTSC | PAL; NTSC | PAL; NTSC | PAL; NTSC | PAL; NTSC | PAL; NTSC | PAL; NTSC | PAL; NTSC | PAL; NTSC |
| Maker | CONEXANT | - | - | - | CONEXANT | CONEXANT | CONEXANT | CONEXANT | CONEXANT |
| length | - | 24.2316 mm | 14 mm | 14 mm | 24.2316 mm | - | 14 mm | 24.2316 mm | - |
| Number of functions | - | 1 | 1 | 1 | 1 | - | 1 | 1 | - |
| encapsulated code | - | QCCJ | QFP | QFP | QCCJ | - | QFP | QCCJ | - |
| Maximum seat height | - | 5.08 mm | 3.4 mm | 2.4 mm | 5.08 mm | - | 3.4 mm | 5.08 mm | - |
| Maximum slew rate | - | 210 mA | 210 mA | 210 mA | 210 mA | - | 210 mA | 210 mA | - |
| Terminal pitch | - | 1.27 mm | 1 mm | 1 mm | 1.27 mm | - | 1 mm | 1.27 mm | - |
| width | - | 24.2316 mm | 14 mm | 14 mm | 24.2316 mm | - | 14 mm | 24.2316 mm | - |
