BPG-2B-505 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BPG-2B-505

Preview

BPG-2B-505: DescriptionModulator, BIPhase, 10MHz Min, 1000MHz Max, 4-PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size394KB，1 Pages; ManufacturerCrane Co.; Environmental Compliance

Download Datasheet Parametric View All

BPG-2B-505 Overview

Modulator, BIPhase, 10MHz Min, 1000MHz Max, 4-PIN

BPG-2B-505 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crane Co.
Reach Compliance Code	compli
Other features	HIGH RELIABILITY
Characteristic impedance	50 Ω
Maximum input power (CW)	-3 dBm
modulation technology	BIPHASE
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	MODULATOR
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

Crane Aerospace & Electronics Microwave Solutions

BPG-2B-505, B

IPHASE

M

ODULATORS

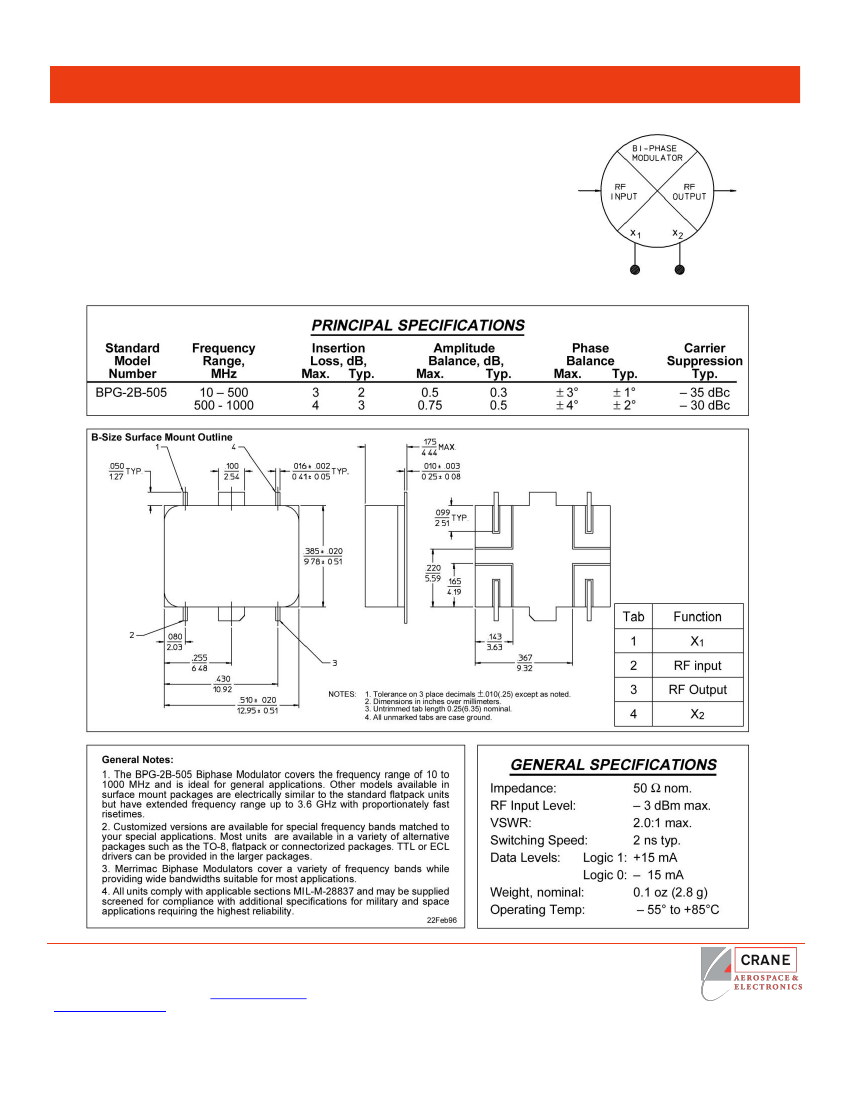

TECHNICAL FEATURE

FEATURES



10 - 1000 MHz

ECL & TTL Compatible

Fast Switching

SMD Package

Crane Aerospace & Electronics

Microwave Solutions – Merrimac Industries

41 Fairfield Place, West Caldwell, NJ 07006

+ 1.973.575.1300 ext. 1309



mw@crane-eg.com

www.craneae.com/mw

BPG2B.doc. This revision supersedes all previous releases. All technical information is believed to be accurate, but no responsibility is assumed for errors. We
