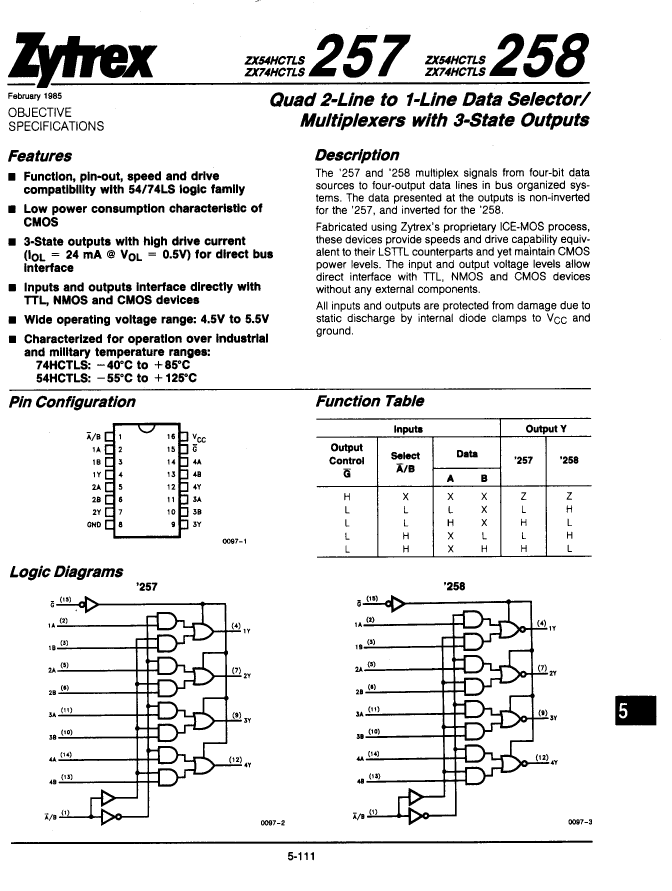

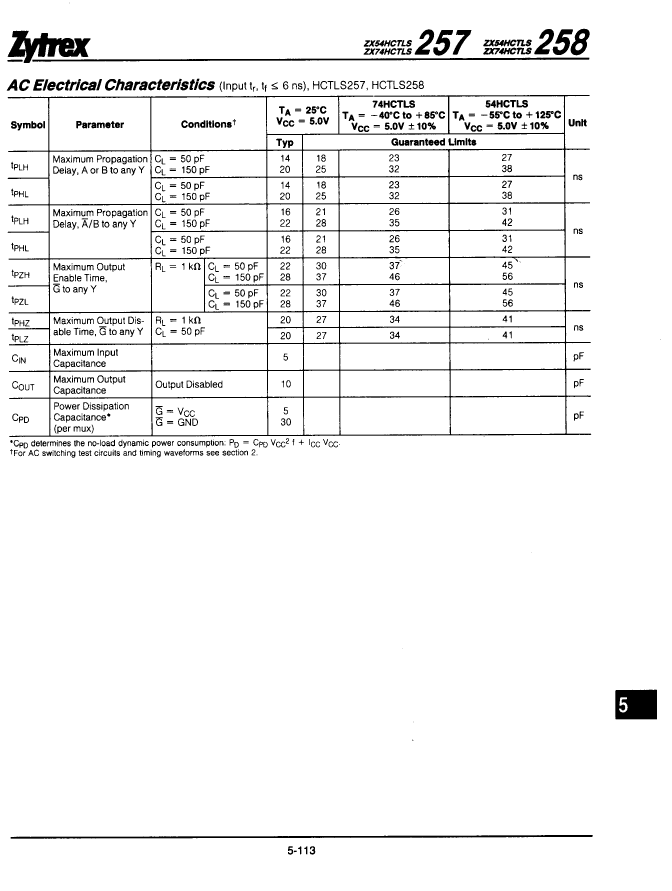

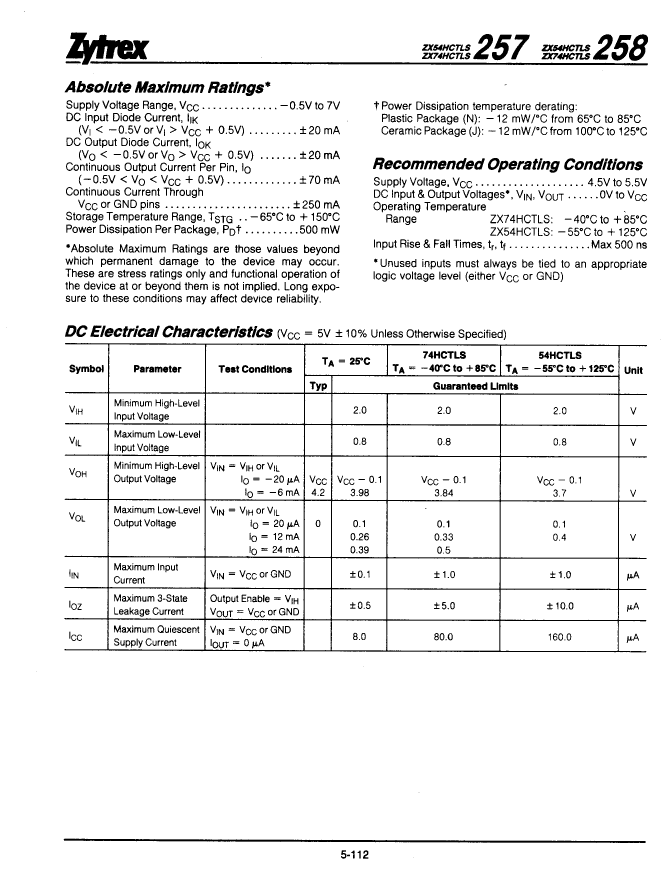

ZX74HCTLS258J: DescriptionMultiplexer, 4-Func, 2 Line Input, CMOS, CDIP16; Categorylogic logic; File Size176KB，3 Pages; ManufacturerRadiation Semiconductor Corp

Download Datasheet Parametric Compare View All

ZX74HCTLS258J Overview

Multiplexer, 4-Func, 2 Line Input, CMOS, CDIP16

ZX74HCTLS258J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Radiation Semiconductor Corp
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknow
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.024 A
Number of functions	4
Number of entries	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Su	37 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

ZX74HCTLS258J Related Products

	ZX74HCTLS258J	ZX74HCTLS257N+	ZX54HCTLS258J+	ZX54HCTLS258J	ZX74HCTLS258N
Description	Multiplexer, 4-Func, 2 Line Input, CMOS, CDIP16	Multiplexer, 4-Func, 2 Line Input, CMOS, PDIP16	Multiplexer, 4-Func, 2 Line Input, CMOS, CDIP16	Multiplexer, 4-Func, 2 Line Input, CMOS, CDIP16	Multiplexer, 4-Func, 2 Line Input, CMOS, PDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Radiation Semiconductor Corp	Radiation Semiconductor Corp	Radiation Semiconductor Corp	Radiation Semiconductor Corp	Radiation Semiconductor Corp
Reach Compliance Code	unknow	unknown	unknown	unknown	unknow
JESD-30 code	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
MaximumI(ol)	0.024 A	0.024 A	0.024 A	0.024 A	0.024 A
Number of functions	4	4	4	4	4
Number of entries	2	2	2	2	2
Number of terminals	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-55 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
package instruction	DIP, DIP16,.3	-	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Certification status	Not Qualified	-	-	Not Qualified	Not Qualified
Prop。Delay @ Nom-Sup	-	37 ns	45 ns	45 ns	-
