VF230C-BGNC-FREQ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> VF230C-BGNC-FREQ

VF230C-BGNC-FREQ: DescriptionPECL Output Clock Oscillator, 0.75MHz Min, 800MHz Max, ROHS COMPLIANT, CERAMIC, HERMETIC SEALED, SMD, LCC-6; CategoryPassive components oscillator; File Size120KB，4 Pages; ManufacturerCTS [CTS Corporation]; Environmental Compliance

Download Datasheet Parametric Compare View All

VF230C-BGNC-FREQ Overview

PECL Output Clock Oscillator, 0.75MHz Min, 800MHz Max, ROHS COMPLIANT, CERAMIC, HERMETIC SEALED, SMD, LCC-6

VF230C-BGNC-FREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS [CTS Corporation]
Reach Compliance Code	unknow
maximum descent time	0.35 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	VF230C
Installation features	SURFACE MOUNT
Maximum operating frequency	800 MHz
Minimum operating frequency	0.75 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Oscillator type	PECL
Output load	50 OHM

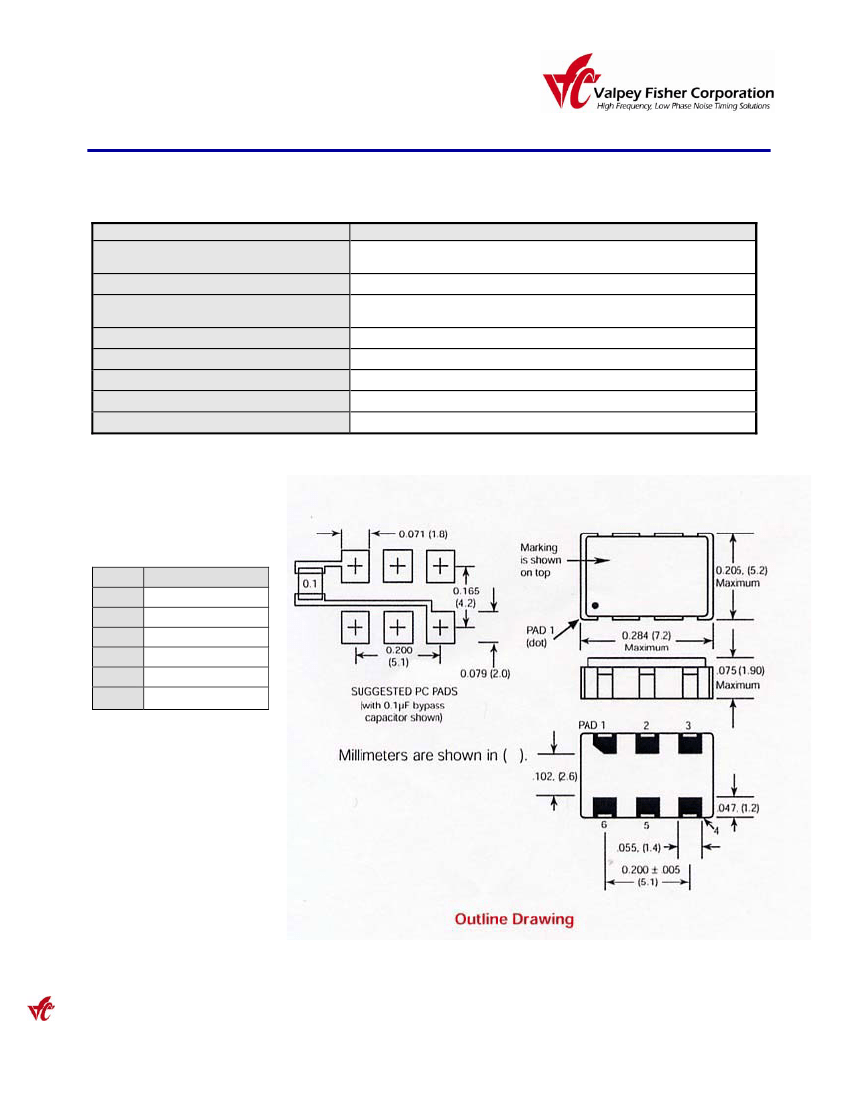

physical size	7.2mm x 5.2mm x 1.9mm
longest rise time	0.35 ns
Maximum supply voltage	3.45 V
Minimum supply voltage	3.15 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

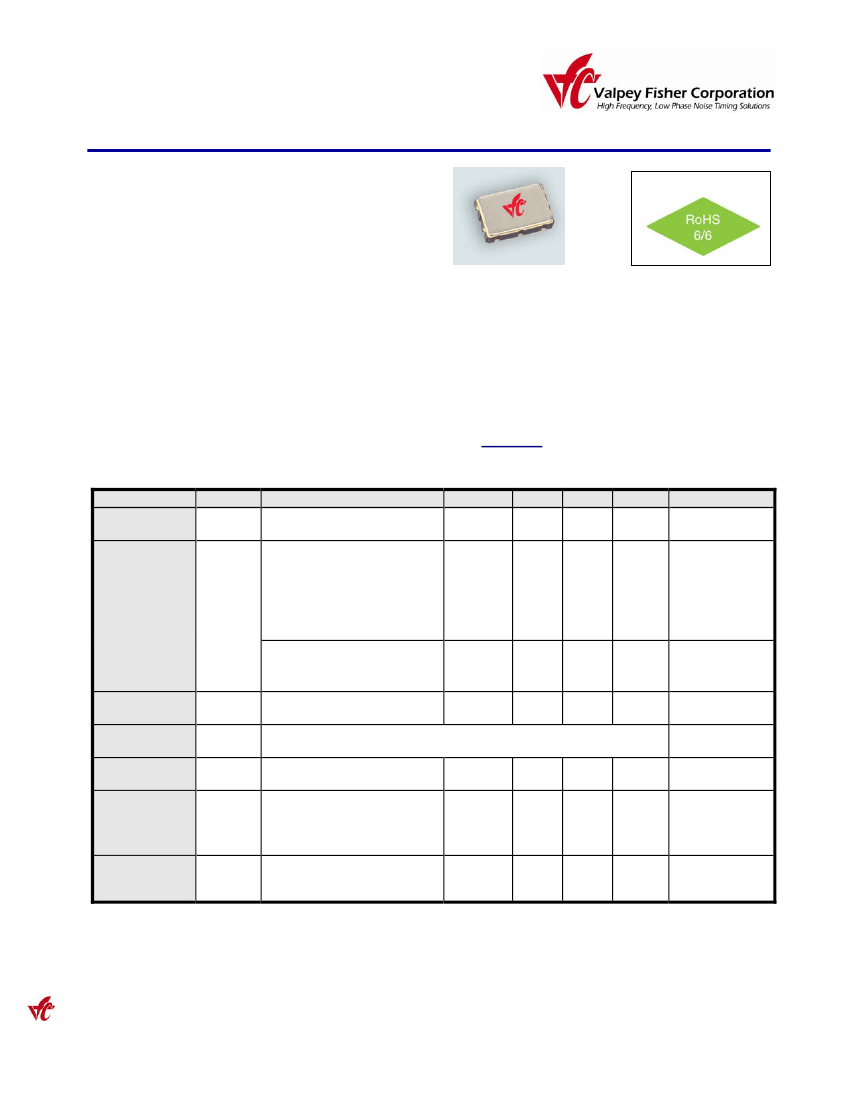

VF230C

XO Low Jitter 3.3V

5x7mm SMD, LVPECL / LVDS

750KHz to 800MHz

Features

750KHz to 800MHz Frequency Range

<5ps jitter over 12KHz – 20MHz

Tristate

RoHS Status

Applications

Optical Networking, SONET / SDH

Gigabit Ethernet

Fibre channel

DSL

Extended temperature applications

*Not recommended for new designs below 640MHz – see VFXO301*

Electrical Specifications

Parameter

Frequency

Range

Symbol

Condition

Min

0.75

Typ

Max

800

100

± 20

±1

-55

LVPECL

LVDS

3.15

19.44MHz

77.76 MHz

155.52 MHz

622.08 MHz

@155.52MHz

3.3

+85

+125

Unit

MHz

Note

Frequency

Stability

Vs. Operating

Temperature

∆F/F

Vs. Supply Voltage

Vs. Aging / Year

ppm

See "How to

Order“ chart

ppm/V

ppm

ppm/y

°C

Operating

Temperature

Output

Supply

Voltage

Period Jitter

RMS

Integrated

Jitter RMS

12KHz to 20MHz

First Year

After first year

Order Code A

Order Code B

See “How to

Order” chart

Vcc

3.45

75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-497-6377 • FAX 508-435-5289 • www.valpeyfisher.com • RevC_0208

VF230C-BGNC-FREQ Related Products

	VF230C-BGNC-FREQ	VF230C-AGTA-FREQ	VF230C-BGTB-FREQ	VF230C-BGND-FREQ	VF230C-AGTD-FREQ	VF230C-AGNB-FREQ
Description	PECL Output Clock Oscillator, 0.75MHz Min, 800MHz Max, ROHS COMPLIANT, CERAMIC, HERMETIC SEALED, SMD, LCC-6	LVDS Output Clock Oscillator, 0.75MHz Min, 800MHz Max, ROHS COMPLIANT, CERAMIC, HERMETIC SEALED, SMD, LCC-6	LVDS Output Clock Oscillator, 0.75MHz Min, 800MHz Max, ROHS COMPLIANT, CERAMIC, HERMETIC SEALED, SMD, LCC-6	PECL Output Clock Oscillator, 0.75MHz Min, 800MHz Max, ROHS COMPLIANT, CERAMIC, HERMETIC SEALED, SMD, LCC-6	PECL Output Clock Oscillator, 0.75MHz Min, 800MHz Max, ROHS COMPLIANT, CERAMIC, HERMETIC SEALED, SMD, LCC-6	LVDS Output Clock Oscillator, 0.75MHz Min, 800MHz Max, ROHS COMPLIANT, CERAMIC, HERMETIC SEALED, SMD, LCC-6
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
maximum descent time	0.35 ns	0.4 ns	0.4 ns	0.35 ns	0.35 ns	0.4 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO
frequency stability	50%	100%	50%	50%	100%	100%
Manufacturer's serial number	VF230C	VF230C	VF230C	VF230C	VF230C	VF230C
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	800 MHz	800 MHz	800 MHz	800 MHz	800 MHz	800 MHz
Minimum operating frequency	0.75 MHz	0.75 MHz	0.75 MHz	0.75 MHz	0.75 MHz	0.75 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Oscillator type	PECL	LVDS	LVDS	PECL	PECL	LVDS
Output load	50 OHM	100 OHM	100 OHM	50 OHM	50 OHM	100 OHM
physical size	7.2mm x 5.2mm x 1.9mm	7.2mm x 5.2mm x 1.9mm	7.2mm x 5.2mm x 1.9mm	7.2mm x 5.2mm x 1.9mm	7.2mm x 5.2mm x 1.9mm	7.2mm x 5.2mm x 1.9mm
longest rise time	0.35 ns	0.4 ns	0.4 ns	0.35 ns	0.35 ns	0.4 ns
Maximum supply voltage	3.45 V	3.45 V	3.45 V	3.45 V	3.45 V	3.45 V
Minimum supply voltage	3.15 V	3.15 V	3.15 V	3.15 V	3.15 V	3.15 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
maximum symmetry	45/55 %	45/55 %	40/60 %	40/60 %	40/60 %	40/60 %
Maker	CTS [CTS Corporation]	-	-	CTS [CTS Corporation]	CTS [CTS Corporation]	CTS [CTS Corporation]
