NHS-512-2M-500 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> NHS-512-2M-500

NHS-512-2M-500: DescriptionOptical Position Encoder, ROTARY OPTICAL POSITION ENCODER; CategoryLED optoelectronic/LED photoelectric; File Size42KB，1 Pages; ManufacturerCUI; Websitehttp://www.cui.com

Download Datasheet Parametric View All

NHS-512-2M-500 Overview

Optical Position Encoder, ROTARY OPTICAL POSITION ENCODER

NHS-512-2M-500 Parametric

Parameter Name	Attribute value
Maker	CUI
Reach Compliance Code	unknow
Optoelectronic device types	ROTARY POSITION ENCODER

Preview

Download Datasheet

View All

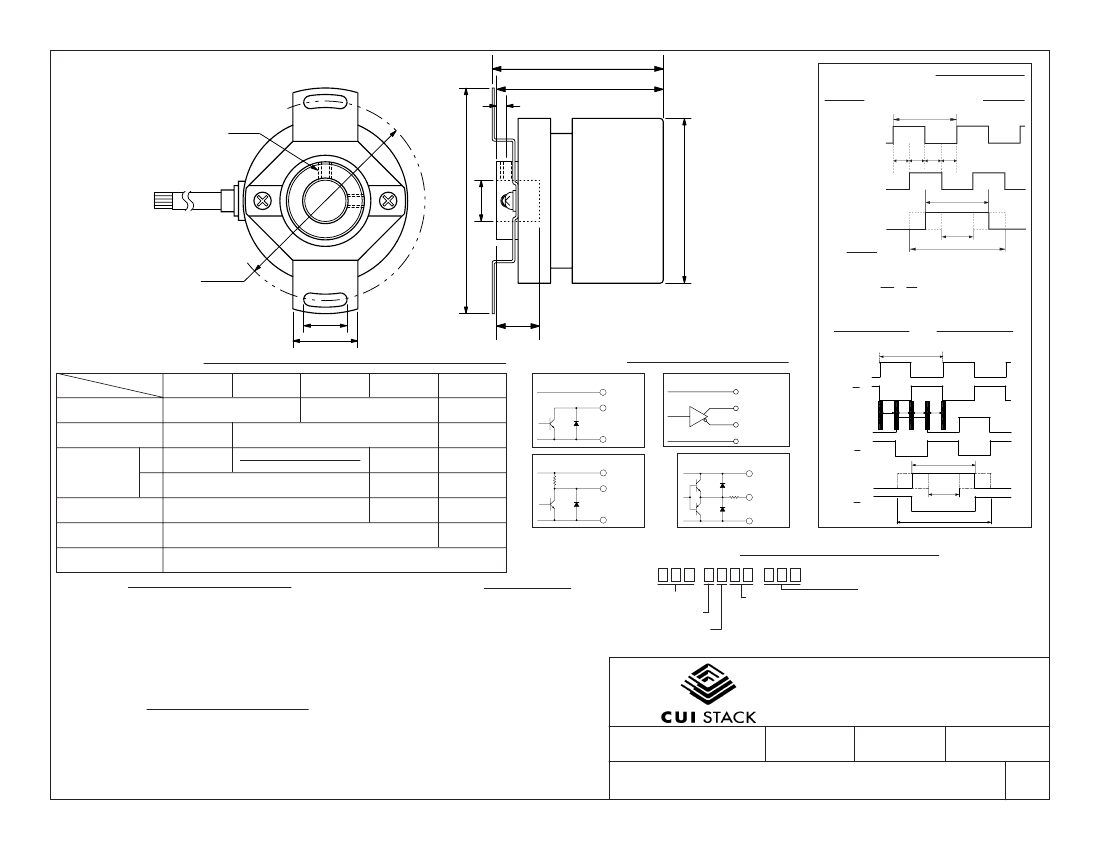

C U I Stack, Inc.,

1997

39.5

38.5

±0.5

2.5

2-M3

Output Waveform

Clockwise rotation viewed from front

M,C,MC,MHC,HT,MHT

Signal A

a b c d

Ø38

±1

Ø52

ØW

Signal B

Signal Z

PPR

h min

h max

PCD46

a,b,c,d =

P P

h = P ± 0.75P

4 8

Wave Duty Ratio: 50% ± 25%

2MD

Electrical Specifications

Output Circuits

Sig A

Vcc

Signal

Inv. Signal

TYPE

Supply Voltage

Current

Output

Voltage

Sink Current

Signal Risetime

Freq. Response

2/2M

50mA max

C/MC

HC/MHC MT/MHT

10.6 to 26.4 VDC

60mA max

Vcc -3V

5.0 VDC

±5%

2/2M

Vcc

Signal

Sig A

Sig B

4.5 ~ 13.2VDC

a bc d

h min

h max

150mA max

≥

2.5V

Vcc -1V

C•MC•HC•MHC

2kΩ

HT/MHT

Vcc

50Ω

≤

0.5V

20mA max

≤

1µS

200kHz

≤

3.0V

≤

0.5V

≤

200 nS

Vcc

Signal

Sig Z

Signal

40mA max 20mA max

Ordering Information

Mechanical

1. Max Shaft Load, radial: 2.0 kgf

axial: 1.0 kgf

2. Moment of Inertia: 8.0 g•cm

3. Angular Acceleration: 1x10

rad/S

4. Max Slewing Speed: 6000 RPM

5. Starting Torque: 10 gf•cm max.

6. Rotational Life: 1 x 10

rpm•hrs

Environmental

1. Operating Temp: -10° to +70° C

2. Storage Temp: -30° to +80° C

3. Humidity:

≤85%

RH, no condensation

4. Vibration: 10~55 Hz, 1.5 mm, 2 hrs

5. Shock: 30G, 11ms, 3 axes, 3 reps

Standard Resolutions

NHS-XXX

003

30 P/R

0646

01 100 P/R

02 200 P/R

025 250 P/R

0256 256 P/R

1024

03 300 P/R

036 360 P/R

04 400 P/R

05 500 P/R

512 512 P/R

2048

06 600 P/R

NHS-

646 P/R

800 P/R

900 P/R

1000 P/R

1024 P/R

1200 P/R

1500 P/R

1800 P/R

2000 P/R

2048 P/R

2500 P/R

Output Type:

" " = TTL Voltage

C = Open Collector

T = Push-Pull

D = Diff Driver

Resolution(P/R)

Channels: 2=A/B

M=Index Channel

Shaft Bore:

500 = Ø5mm

600 = Ø6mm

635 = Ø6.35mm

800 = Ø8.mm

C U I Stack, Inc.

9615 SW Allen Blvd. #103

Beaverton, OR 97005

Tel: 503/643-4899 FAX: 503/643-6129

DRAWN BY

UPDATED

CHECKED

RELEASED

JAS

PART NO.

03/23/99

REV.

NHS-XXX-2XXX-XXX
