DL6286 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DL6286

DL6286: DescriptionDelay Line, 1-Func, 10-Tap, PDIP14; Categorylogic logic; File Size89KB，1 Pages; ManufacturerDatatronic

Download Datasheet Parametric Compare View All

DL6286 Overview

Delay Line, 1-Func, 10-Tap, PDIP14

DL6286 Parametric

Parameter Name	Attribute value
Maker	Datatronic
package instruction	DIP, DIP14,.3
Reach Compliance Code	compli
JESD-30 code	R-PDIP-T14
Number of functions	1
Number of taps/steps	10
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	4 mA
programmable delay line	NO
Prop。Delay @ Nom-Su	350 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

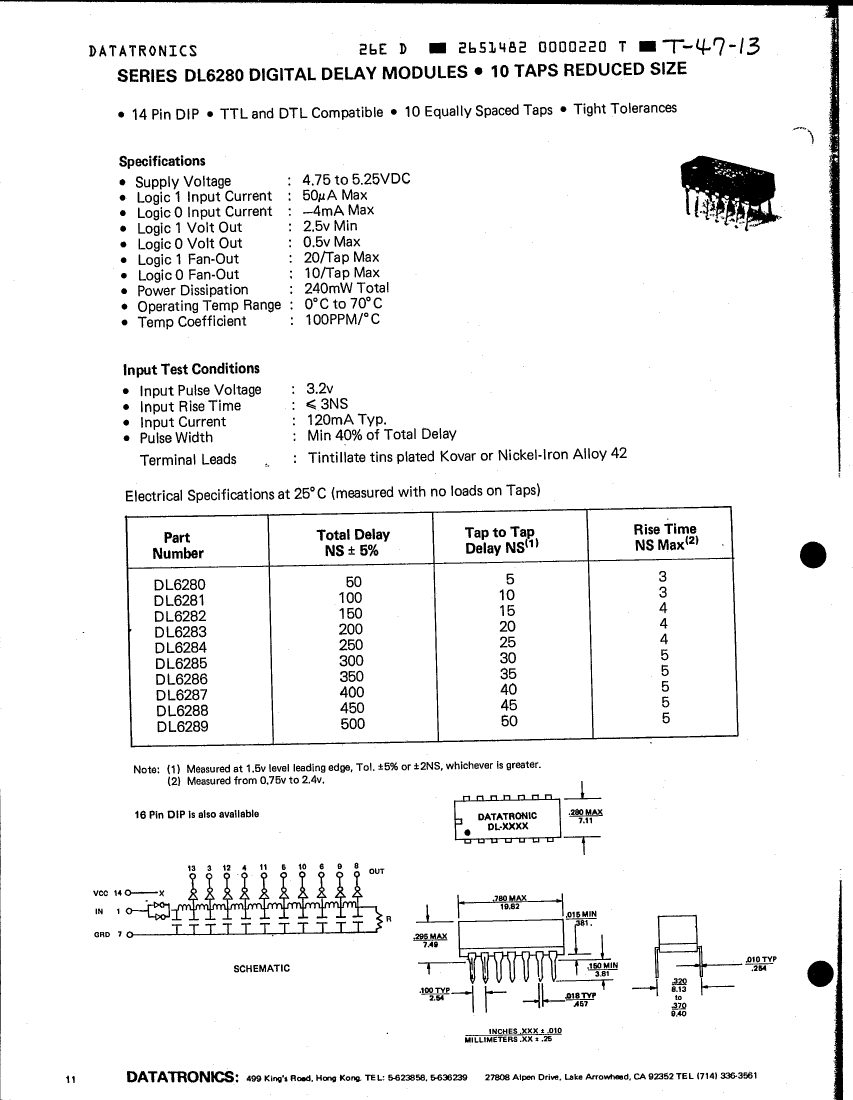

Preview

Download Datasheet

View All

DL6286 Related Products

	DL6286	DL6285	DL6287	DL6283	DL6288	DL6289
Description	Delay Line, 1-Func, 10-Tap, PDIP14	Delay Line, 1-Func, 10-Tap, PDIP14	Delay Line, 1-Func, 10-Tap, PDIP14	Delay Line, 1-Func, 10-Tap, PDIP14	Delay Line, 1-Func, 10-Tap, PDIP14	Delay Line, 1-Func, 10-Tap, PDIP14
Maker	Datatronic	Datatronic	Datatronic	Datatronic	Datatronic	Datatronic
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	compli	compliant	compliant	compli	compli	compli
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14
Number of functions	1	1	1	1	1	1
Number of taps/steps	10	10	10	10	10	10
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	4 mA	4 mA	4 mA	4 mA	4 mA	4 mA
programmable delay line	NO	NO	NO	NO	NO	NO
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Prop。Delay @ Nom-Su	350 ns	-	-	200 ns	450 ns	500 ns
