DT38CB251 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DT38CB251

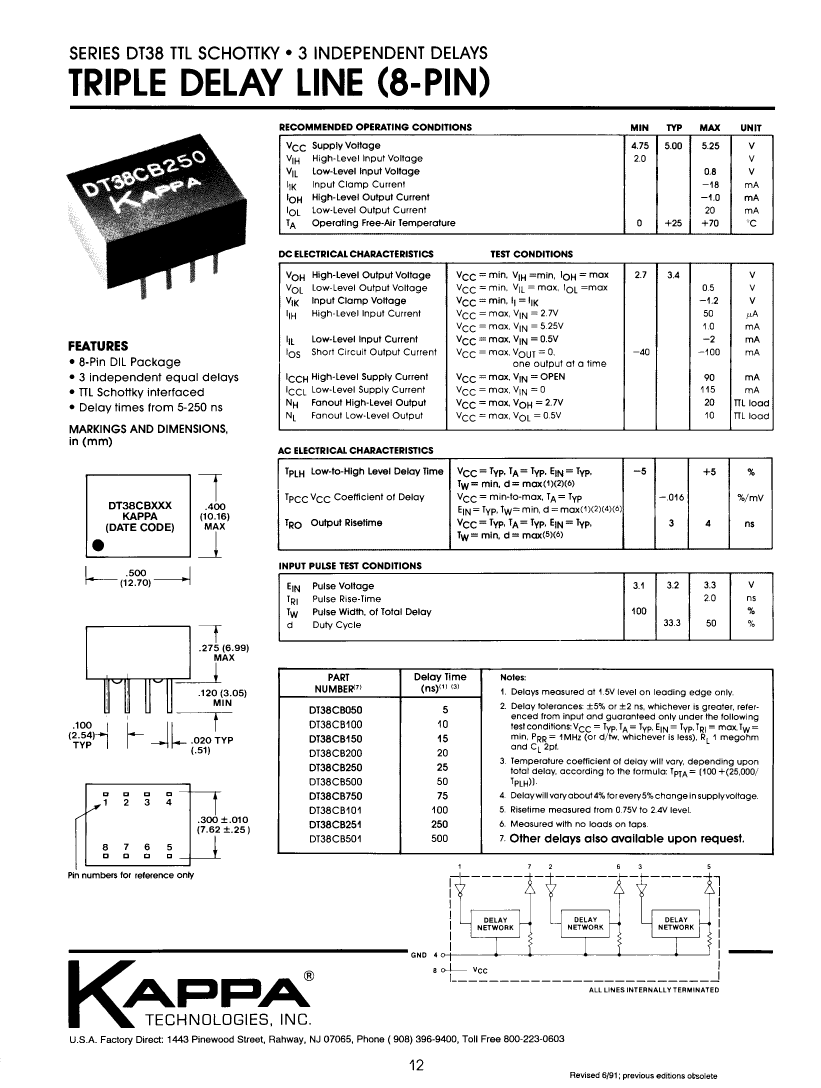

DT38CB251: DescriptionDelay Line, 3-Func, 1-Tap, Hybrid, PDIP8; Categorylogic logic; File Size107KB，1 Pages; ManufacturerKappa Networks Inc

Download Datasheet Parametric Compare View All

DT38CB251 Overview

Delay Line, 3-Func, 1-Tap, Hybrid, PDIP8

DT38CB251 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Kappa Networks Inc
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknow
JESD-30 code	R-PDIP-T8
JESD-609 code	e0
Number of functions	3
Number of taps/steps	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	115 mA
programmable delay line	NO
Prop。Delay @ Nom-Su	250 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

DT38CB251 Related Products

	DT38CB251	DT38CB050	DT38CB200	DT38CB100	DT38CB500	DT38CB750
Description	Delay Line, 3-Func, 1-Tap, Hybrid, PDIP8	Delay Line, 3-Func, 1-Tap, Hybrid, PDIP8	Delay Line, 3-Func, 1-Tap, Hybrid, PDIP8	Delay Line, 3-Func, 1-Tap, Hybrid, PDIP8	Delay Line, 3-Func, 1-Tap, Hybrid, PDIP8	Delay Line, 3-Func, 1-Tap, Hybrid, PDIP8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Kappa Networks Inc	Kappa Networks Inc	Kappa Networks Inc	Kappa Networks Inc	Kappa Networks Inc	Kappa Networks Inc
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3
Reach Compliance Code	unknow	unknown	unknown	unknow	unknow	unknow
JESD-30 code	R-PDIP-T8	R-PDIP-T8	R-PDIP-T8	R-PDIP-T8	R-PDIP-T8	R-PDIP-T8
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of functions	3	3	3	3	3	3
Number of taps/steps	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	115 mA	115 mA	115 mA	115 mA	115 mA	115 mA
programmable delay line	NO	NO	NO	NO	NO	NO
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Prop。Delay @ Nom-Su	250 ns	-	-	10 ns	50 ns	75 ns
