Product
Specifications
Button Patch Antennas
(Pat.Pend.)
for 2.4 - 6 GHz
s
Small weatherproof radome; perfect
for in-building & outdoor coverage
s
Models for 802.11 WLAN, 3.5 GHz,
and U-NII (5.2-5.8 GHz)
s
Semi-hemisphere radiation pattern for
easy installation

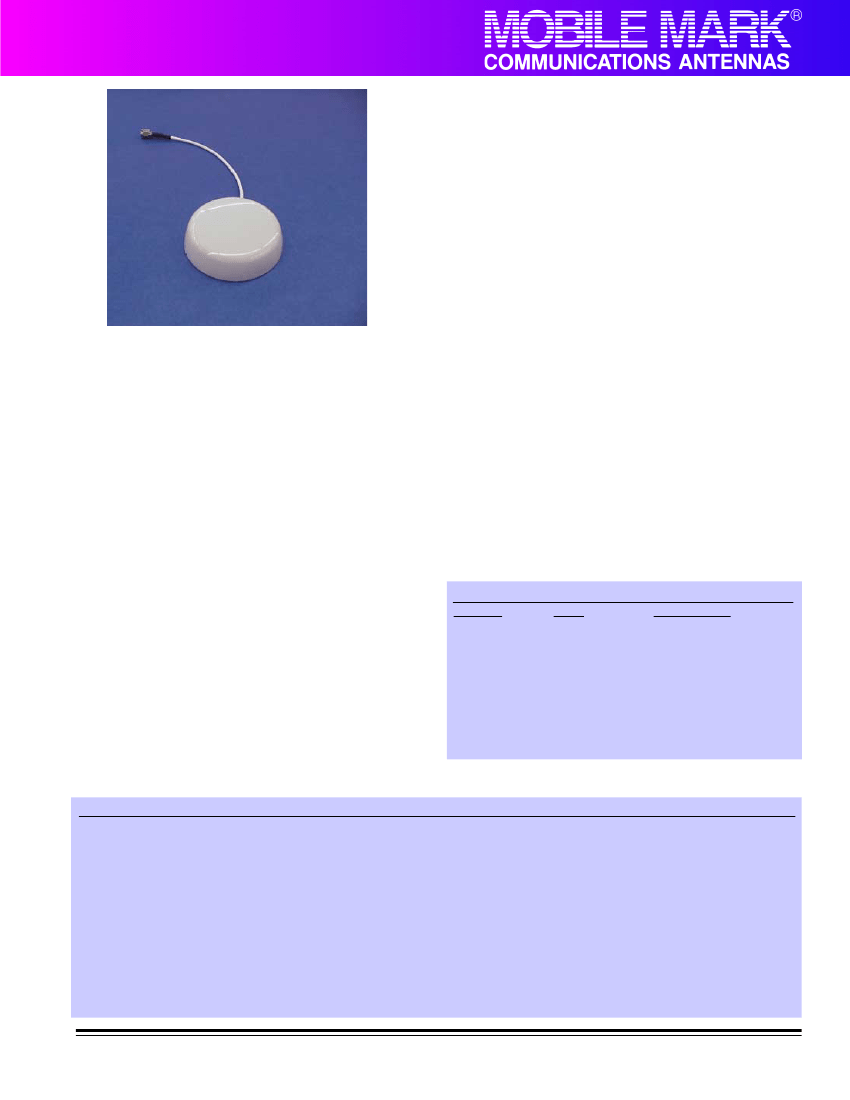

Button Patch Antenna
s
Unique design provides high
performance at an economical price
The antennas comes in a variety of gain configurations,
depending on the frequency of operation. Please refer to
model chart for exact gain & frequency.
The Button Patch antennas mount using industrial
double sided tape. Because they have broad beamwidth,
angle adjustment is usually not necessary.
Mobile Mark's Button Patch Antennas are perfect for next
generation Wireless Local Loop, WLAN and telemetry.
They have features that make them invaluable, solving
many of the problems normally associated with these
higher frequencies.
The antennas use unique designs that provide significant
improvements in efficiency while being very economical.
VSWR performance is maintained across the operating
bandwidth. The antennas provide near hemispherical
energy radiation, resulting in broad area coverage, yet
maintaining directivity and isolation.
The Button Patch is only 2 1/2" diameter. It also is
enclosed in a weather-tight polycarbonate radome, with a
smooth finish. The antennas are supplied in white.
They economically mount using double-sided tape. They
terminate with 6" of RG-188 cable, and a female SMA.
Additional jumpers can be provided. The antennas are
usable both indoors & out.
Specifications
Frequency:
See above
Gain:
See above
Bandwidth@2.0:1SWR:
See Freq above
Impedance:
50 Ohm nominal
Maximum Power:
50 Watts
Beamwidth:
BP5-2400
85 degrees Az, 65 degrees El
BP6-3475
80 degrees Az, 60 degrees El
BP7-5250
80 degrees Az, 60 degrees El
BP7-5725
80 degrees Az, 60 degrees El
Model Number
Models
Freq
BP5-2400S
2.4-2.49 GHz
BP6-3475S
3.4-3.55 GHz
BP7-5250S
5.25-5.35 GHz
BP7-5725S
5.72-5.83 GHz
Description
5 dBi Button Patch
6 dBi Button Patch
7 dBi Button Patch
7 dBi Button Patch
All antennas supplied with 6" RG-188 and female SMA.
For other connectors including reverse polarity, or cable
configurations, please consult factory.
Front-to-Back ratio:
Lightning Protection:
Radome Size:
Rated Wind Velocity:
Antenna Radome:
Weight:
Mounting:
Termination:
15 dB
external recommended
2 1/2" Diam x 0.75 Depth
100 mph+
Polycarbonate
0.5 lbs
Fixed double sided tape,
surface mounting only
6" RG-188, female SMA
For special configurations, please consult factory.
US Office & Headquarters: 3900-B River Road, Schiller Park, IL 60176 Tel: 800-648-2800 or 847-671-6690 Fax: 847-671-6715
UK Office: 106 Anglesey Business Park, Hednesford, Staffs. WS12 5NR UK Tel: (+44) 1543-878343 Fax: (+44) 1543-871714
Visit our web page at www.mobilemark.com. Specifications subject to change without notice (6/2001).
