OP490BIEY: DescriptionOperational Amplifier, 4 Func, 800uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size369KB，12 Pages; ManufacturerPrecision Monolithics Inc

Download Datasheet Parametric Compare View All

OP490BIEY Overview

Operational Amplifier, 4 Func, 800uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14

OP490BIEY Parametric

Parameter Name	Attribute value
Maker	Precision Monolithics Inc
package instruction	HERMETIC SEALED, DIP-14
Reach Compliance Code	unknow
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.015 µA
Nominal Common Mode Rejection Ratio	120 dB
Maximum input offset voltage	800 µV
JESD-30 code	R-GDIP-T14
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Nominal slew rate	0.012 V/us
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	20 kHz

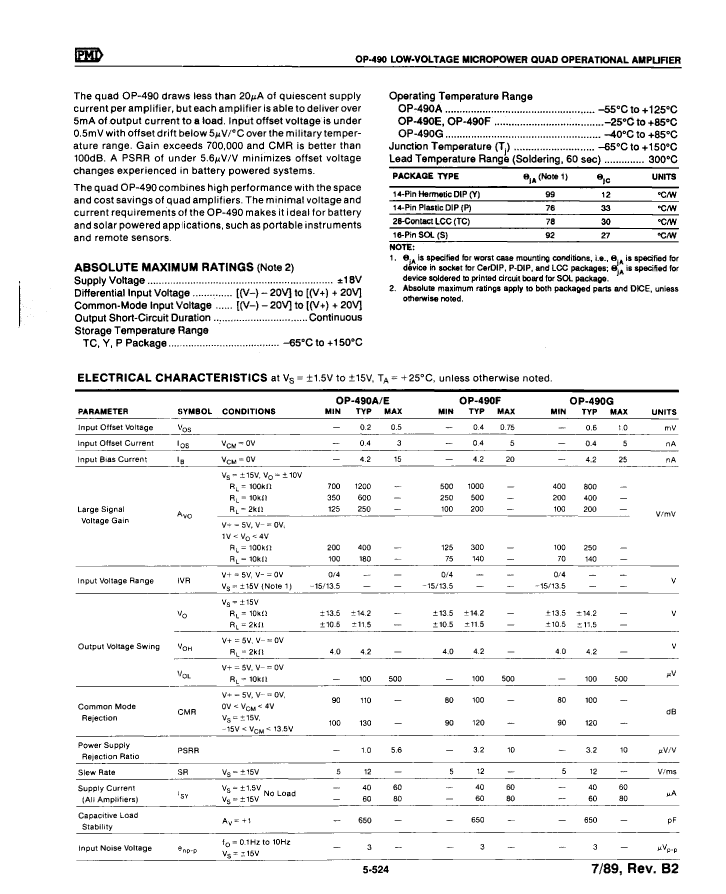

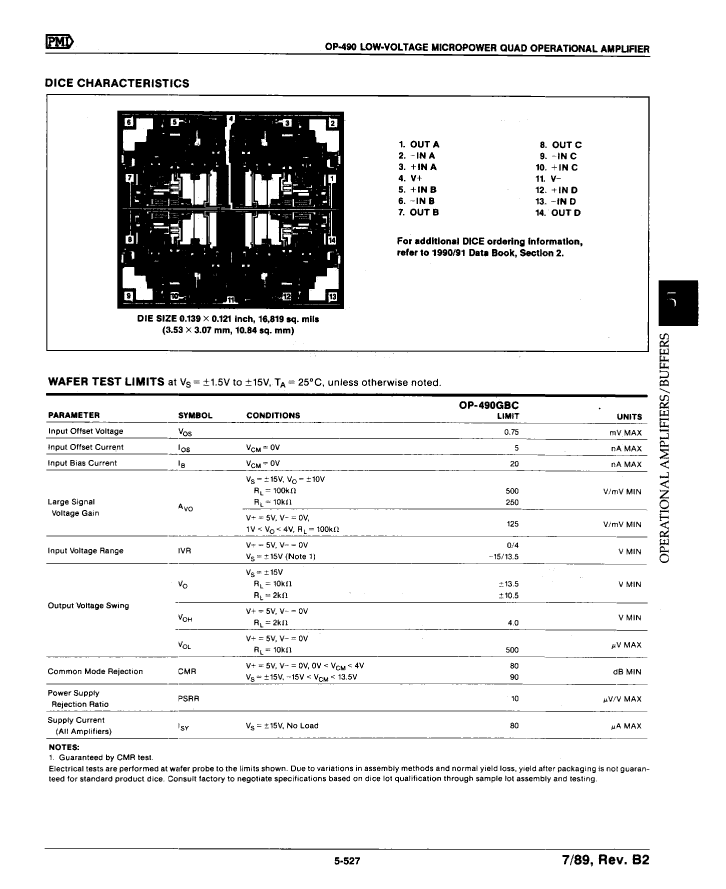

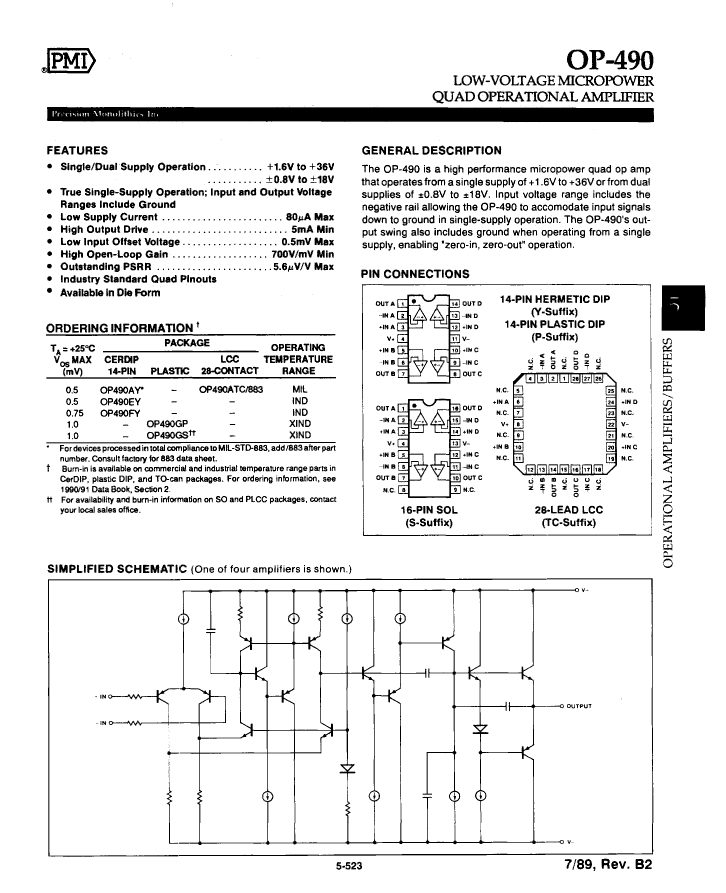

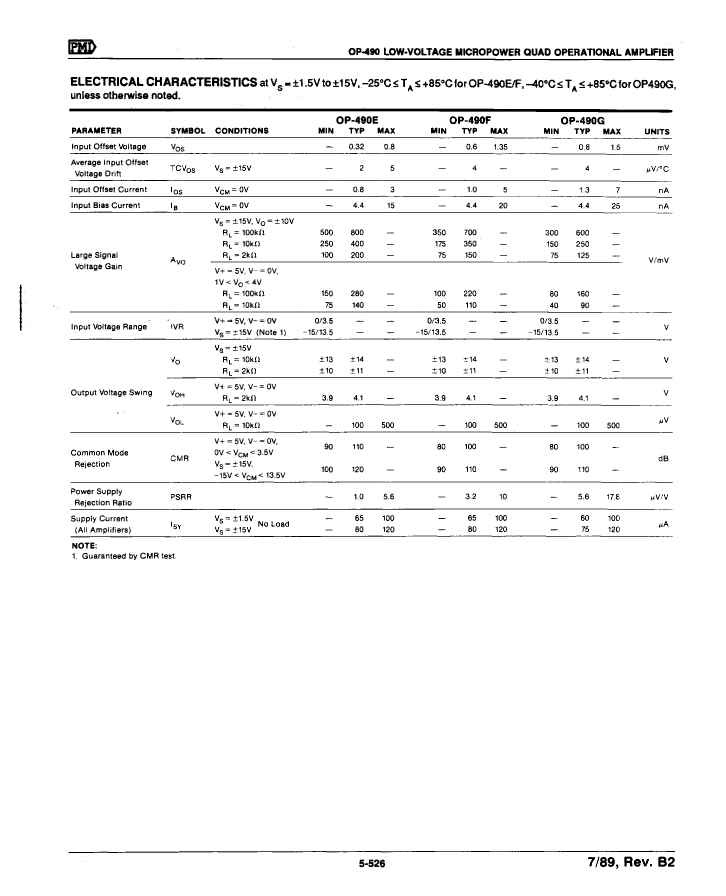

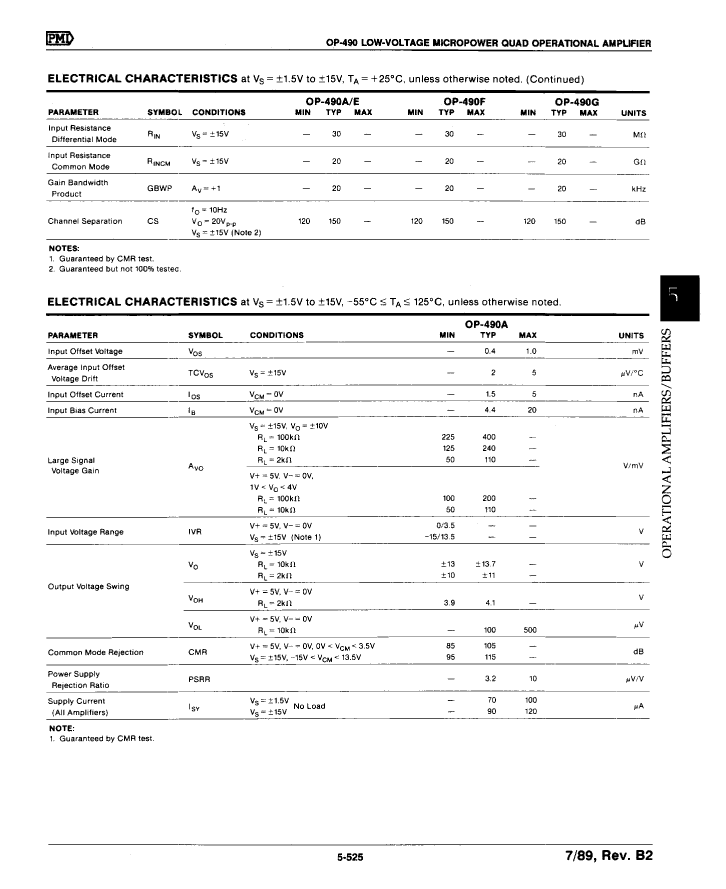

Preview

Download Datasheet

View All

OP490BIEY Related Products

	OP490BIEY	OP490BIFY	OP490BIGP	OP-490GBC	OP490GS-REEL
Description	Operational Amplifier, 4 Func, 800uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Operational Amplifier, 4 Func, 1350uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Operational Amplifier, 4 Func, 1500uV Offset-Max, BIPolar, PDIP14, PLASTIC, DIP-14	Operational Amplifier, 4 Func, 750uV Offset-Max, BIPolar,	Operational Amplifier, 4 Func, 1500uV Offset-Max, BIPolar, PDSO16,
Maker	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc
Reach Compliance Code	unknow	unknown	unknown	unknown	unknow
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.015 µA	0.02 µA	0.025 µA	0.02 µA	0.025 µA
Nominal Common Mode Rejection Ratio	120 dB	110 dB	110 dB	90 dB	110 dB
Maximum input offset voltage	800 µV	1350 µV	1500 µV	750 µV	1500 µV
JESD-30 code	R-GDIP-T14	R-GDIP-T14	R-PDIP-T14	X-XUUC-N14	R-PDSO-G16
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	4	4	4	4	4
Number of terminals	14	14	14	14	16
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	UNCASED CHIP	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	GULL WING
Terminal location	DUAL	DUAL	DUAL	UPPER	DUAL
package instruction	HERMETIC SEALED, DIP-14	HERMETIC SEALED, DIP-14	PLASTIC, DIP-14	-	-
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C
Minimum operating temperature	-25 °C	-25 °C	-40 °C	-	-40 °C
Nominal slew rate	0.012 V/us	0.012 V/us	0.012 V/us	-	12000 V/us
Temperature level	OTHER	OTHER	INDUSTRIAL	-	INDUSTRIAL
Nominal Uniform Gain Bandwidth	20 kHz	20 kHz	20 kHz	-	20000 kHz
