CD4053BF/3: DescriptionMultiplexers/Switches, 3 Func, 2 Channel, CMOS, CDIP16; CategoryAnalog mixed-signal IC The signal circuit; File Size341KB，7 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD4053BF/3 Overview

Multiplexers/Switches, 3 Func, 2 Channel, CMOS, CDIP16

CD4053BF/3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknow
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Number of channels	2
Number of functions	3
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V
Certification status	Not Qualified
surface mount	NO
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

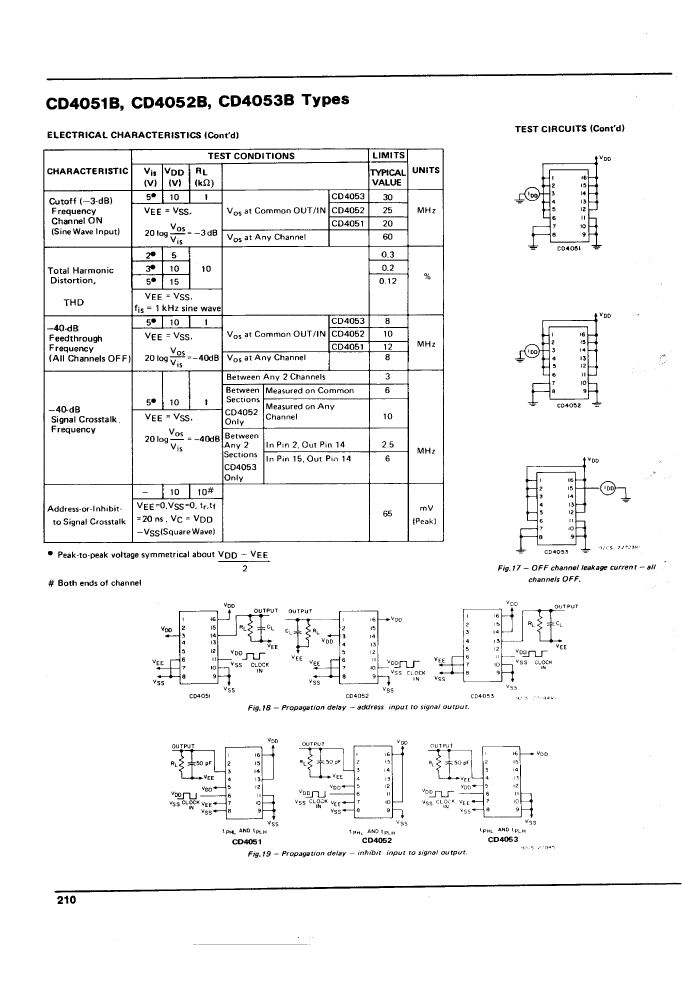

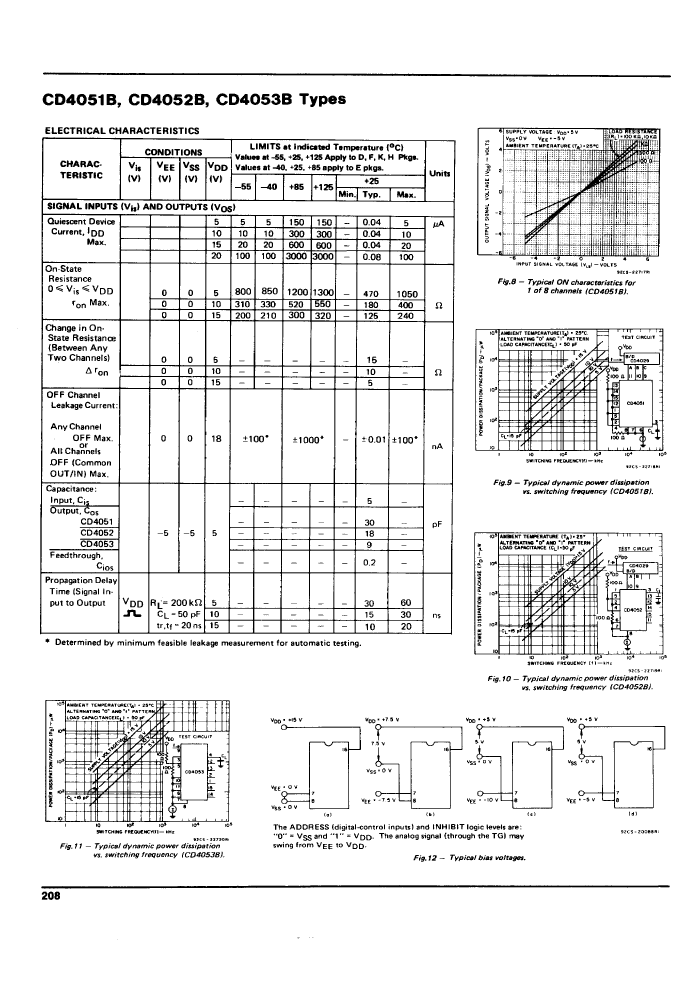

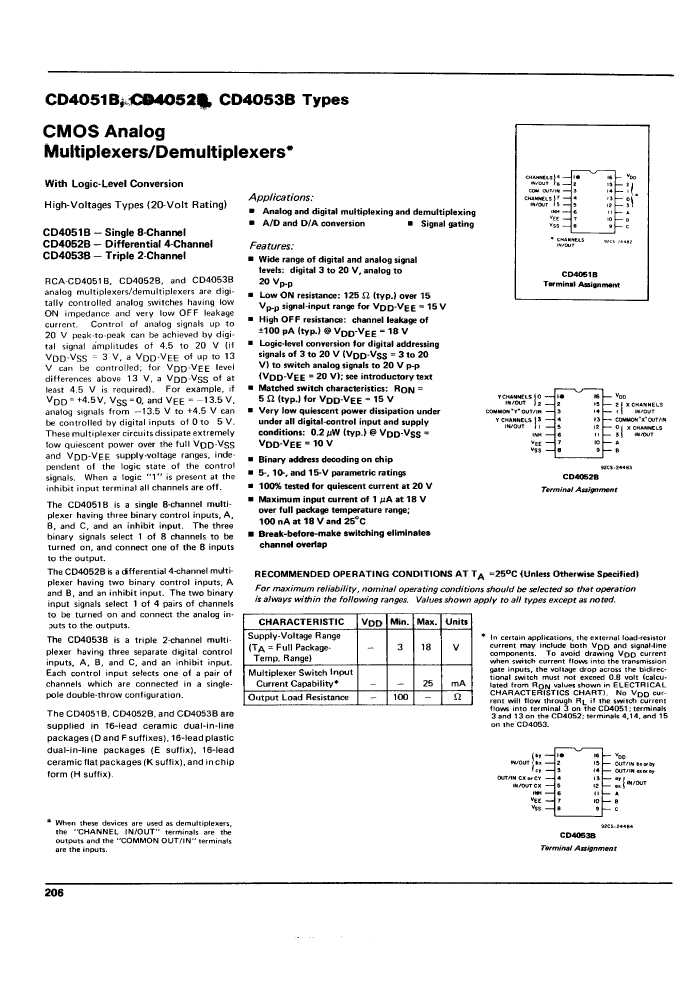

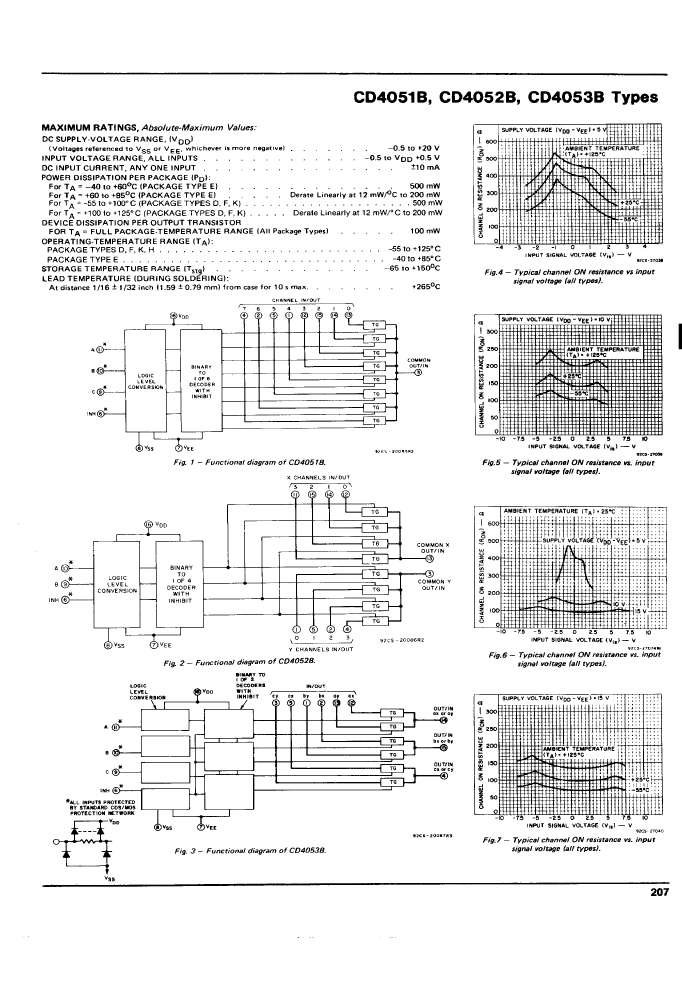

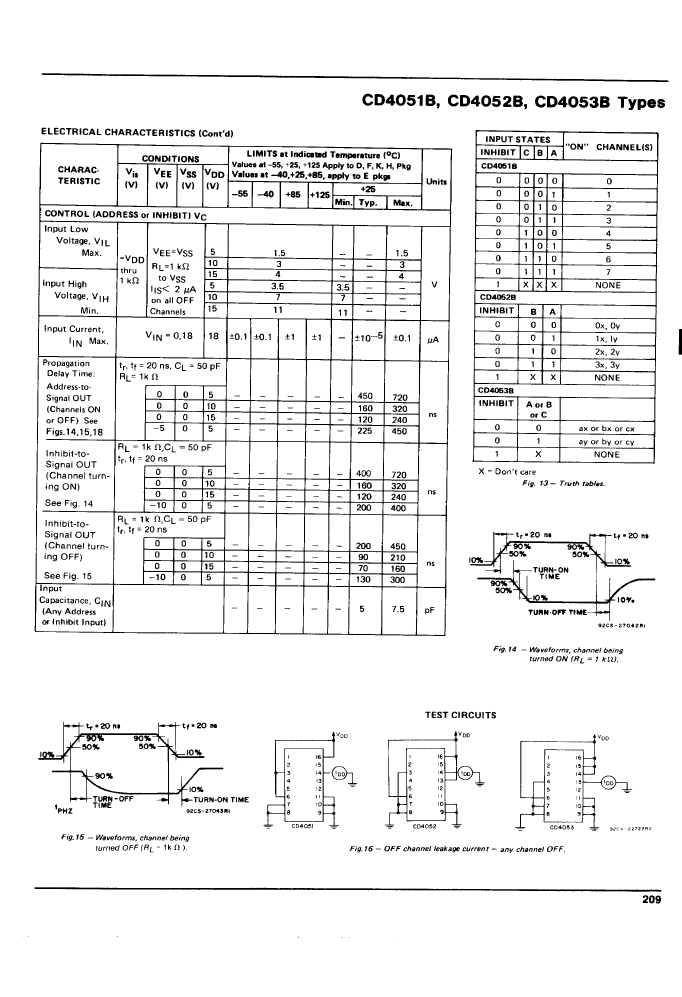

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CD4053BF/3 Related Products

	CD4053BF/3	CD4052BF/3	CD4052BF/3A	CD4052BDX	CD4053BEX	CD4051BF/3W	CD4051BK/3	CD4052BE98	CD4053BD/3	CD4053BD/3W
Description	Multiplexers/Switches, 3 Func, 2 Channel, CMOS, CDIP16	Multiplexers/Switches, 1 Func, 4 Channel, CMOS, CDIP16	Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16	Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16	Single-Ended Multiplexer, 3 Func, 2 Channel, CMOS, PDIP16,	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP16	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDFP16	Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDIP16,	Single-Ended Multiplexer, 3 Func, 2 Channel, CMOS, CDIP16	Single-Ended Multiplexer, 3 Func, 2 Channel, CMOS, CDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
JESD-30 code	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16	R-XDFP-F16	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of channels	2	4	4	4	2	8	8	4	2	2
Number of functions	3	1	1	1	3	1	1	1	3	3
Number of terminals	16	16	16	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	85 °C	125 °C	125 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-40 °C	-55 °C	-55 °C	-40 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DFP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	FL16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE
power supply	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V
surface mount	NO	NO	NO	NO	NO	NO	YES	NO	NO	NO
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Certification status	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Base Number Matches	-	1	1	1	1	1	1	-	-	-
Analog Integrated Circuits - Other Types	-	-	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
