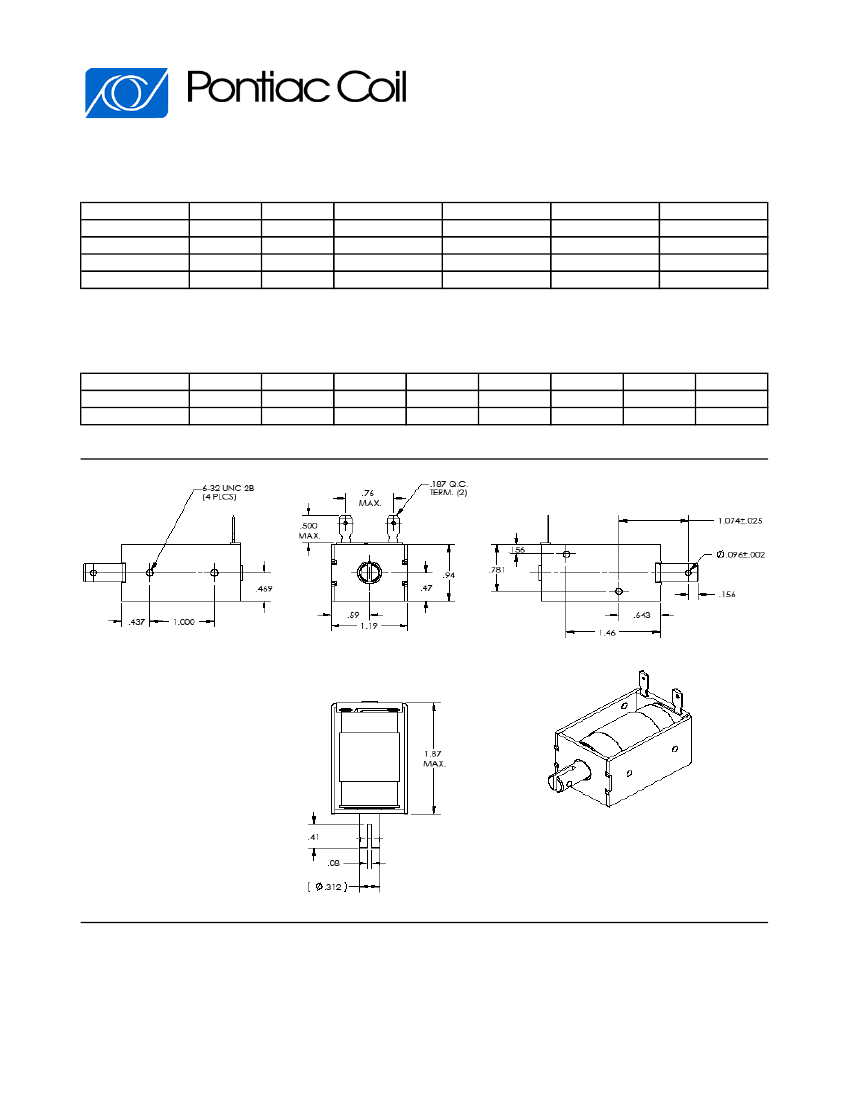

Model L-11 DC Solenoid
Open Frame, Pull Type
Pontiac Coil - Arkansas is an ISO 9001:2000 Certified Company
*Resistance values are ± 10% at 25°C
Model Code
L-11PL012D-C
L-11PL012D-I
L-11PL024D-C
L-11PL024D-I
Part No.
F0431A
F0432A
F0433A
F0434A
Voltage
12VDC
12VDC
24VDC
24VDC
Duty Cycle
Continuous
Intermittent
Continuous
Intermittent
Power (W)
8
19
8
19
Resistance (Ω)*
18.0
7.6
72.0
30.3
Current (A)
0.7
1.6
0.4
0.8
Definition of Duty Cycles:
Continuous
= indefinite activation;
Intermittent
= 1 minute ON and 3 minutes OFF;
Pulse
= 100 msec. ON and 900 msec. OFF
Special order options: 6 to 48 Volts DC or AC. Consult factory for other available modifications.
Stroke (in.):
Cont. Duty force
Int. Duty force
Sealed
84 oz.
92 oz.
1/16
46 oz.
64 oz.
1/8
26 oz.
45 oz.
1/4
10 oz.
24 oz.
3/8
6 oz.
15 oz.
1/2
4 oz.
11 oz.
5/8
3 oz.
8 oz.
3/4
2 oz.
6 oz.
Typical force values when operated at 100% rated voltage at 25°C. Derating required for lower voltage and higher temperature.
Solenoid shown energized, with plunger seated
Insulation Materials: UL Construction, Class B 130°C
Copper magnet wire insulation rated 155°C (class F)
Voltage Breakdown Strength: 1500 VAC RMS
Life Expectancy: 10 million operations
